ALGcom Site Monitor SM9S
- SKU: 37030020001
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information

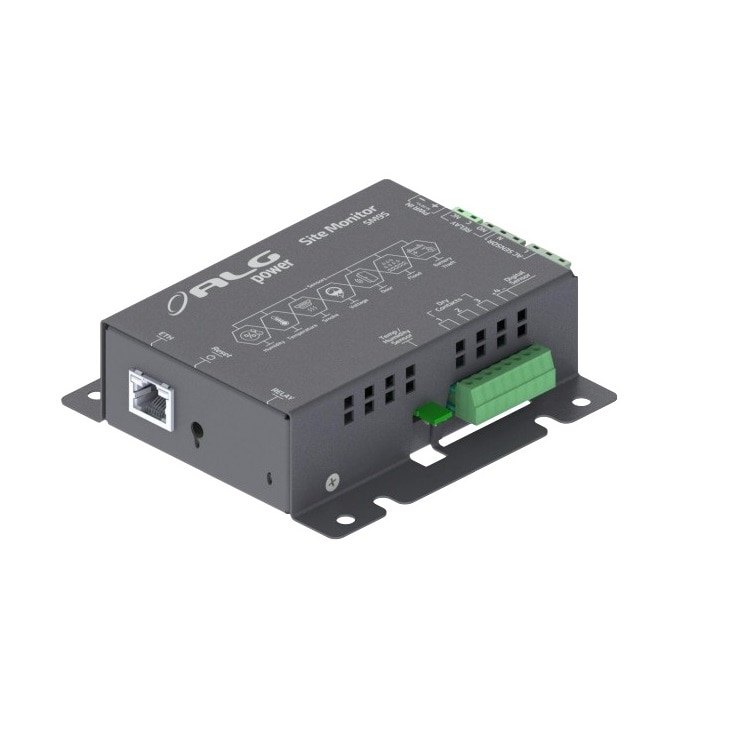

ALGcom 37030020001 Site Monitor SM9S
The Site Monitor is a monitoring and security module developed with the aim of providing accurate information through the Web server and SNMP-V2 protocol. Its versatility is one of its highlights, allowing seamless integration with a variety of leading market management software, such as Zabbix, Grafana, LibreNMS, The Dude, among other systems.
With an intuitive web interface, the Site Monitor provides quick configuration and access to crucial information, including AC and DC voltage measurement, as well as temperature data, making environment monitoring a swift and easy task to perform. Its broad applicability is an advantage, covering critical environments such as POPs, Data Centers, Racks, and telecom towers, as well as other locations requiring real- time monitoring.
The product offers an additional feature of equipment control through a relay output. This output allows manual or automatic activation of connected devices. The "scheduling" configuration is one of the main highlights of this function, allowing users to program the activation time as well as the days of the week when the relay will change state. This configuration enables event scheduling and precise control of connected devices.
Additionally, the Site Monitor SM9S also features three dry contact sensors and a digital input, adding flexibility to the device and allowing it to be used in various ways. It can function as a smoke sensor, door sensor, magnetic sensor, presence sensor, battery sensor, and other possibilities. This provides effective customization, adjusting monitoring according to the specific needs of each installation.
Features:
- AC mains voltage monitoring.
- DC power supply voltage monitoring.
- Local WEB server for control and monitoring.
- SNMP-V2 protocol for monitoring.
- Compatible with monitoring systems suchas Zabbix, Grafana, LibreNMS, The Dude, among others.
- 3 inputs for dry contact sensors.
- 1 input for digital sensor.
- Temperature monitoring (integrated sensor).
- Relative humidity monitoring (integratedsensor).
- Programmable dry contact output for upto5A.
- Possibility of sending alerts and status via email andTelegram, in conjunction with SNMP manager software.
- Easy installation.
Applications:
- Critical power loads.
- Telecommunication networks.
- Data centers.
- Renewable energy systems.
- Alarm systems.
Specifications
Specifications 37030020001
| Input Power Supply Voltage | 10 – 60 VDC |
| Input Connection | RJ45 PoE 802.3af Connector Terminal Block Connector for up to 1.5mm2 wire |
| Sensor Characteristics | |
| AC Voltage Sensor | 60 – 270 VAC Terminal Block Connector for wire up to 1.5mm2 |
| DC Voltage Sensor | 10 – 60 VDC Terminal Block Connector for wire up to 1.5mm2 (same connector as thepowerinput) |
| Temperature Sensor | -20°C to 65°C, Integrated Sensor |
| Humidity Sensor | 0% to 100% RH, Integrated Sensor |
| Dry Contact Inputs | 0 - 60 VDC |
| Digital Input | 0 - 60 VDC (Voltage above 5 VDC refers to logic level 1) |
| Relay | 0V - 250 VAC to 5 A Terminal block connector for wire up to 1.5mm2 |
| Management Interface | |
| Ethernet | 10/100 Mbps |
| Supported Protocols | TCP/IP – SNMP V2 |
| Firmware Updates | Remote Update Management Interface |
| Relay Output | Voltage, temperature, humidity, dry contact inputs, digital input alarms. |
| Monitoring | AC voltage, DC voltage, temperature, humidity, dry contact inputs, digital input, automation relay status measurement. Allows customization ofthe name of each sensor, making it easier to identifyconnected devices. |
| Commands | Allows remote On/Off relay command sending. |
| Scheduling | Allows configuring up to 10 scheduling for relay activation, which can be programmed with time and day ofthe week accuracy. |
| Manually | The command is executed through a button located on the front panel. Whenpressed, it is possible to restore network settings to factory values. |
| AC Inputto Earth Isolation | 1000 VAC |
| DC Inputto Earth Isolation | 1000 VAC |
| Relay Contacts to Earth Isolation | 1000 VAC |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Device Power On Indicator (Green LED) | Device Power On |
| Relay Activation Indicator (Green LED) | Relay Activated |
| MTBF (Mean Time Between Failures) | 120,000 hours |
| Installation Mode | Rack or Panel Mounting |
| Dimensions (H x W x D)/ Weight | 34 x 110 x 113 mm / 0.297 kg 1.33 x 4.33 x 4.44 inch / 0.65 lbs. |
