ALGcom 12V 10A 3Ah Maximum for Battery Charger
Product Information

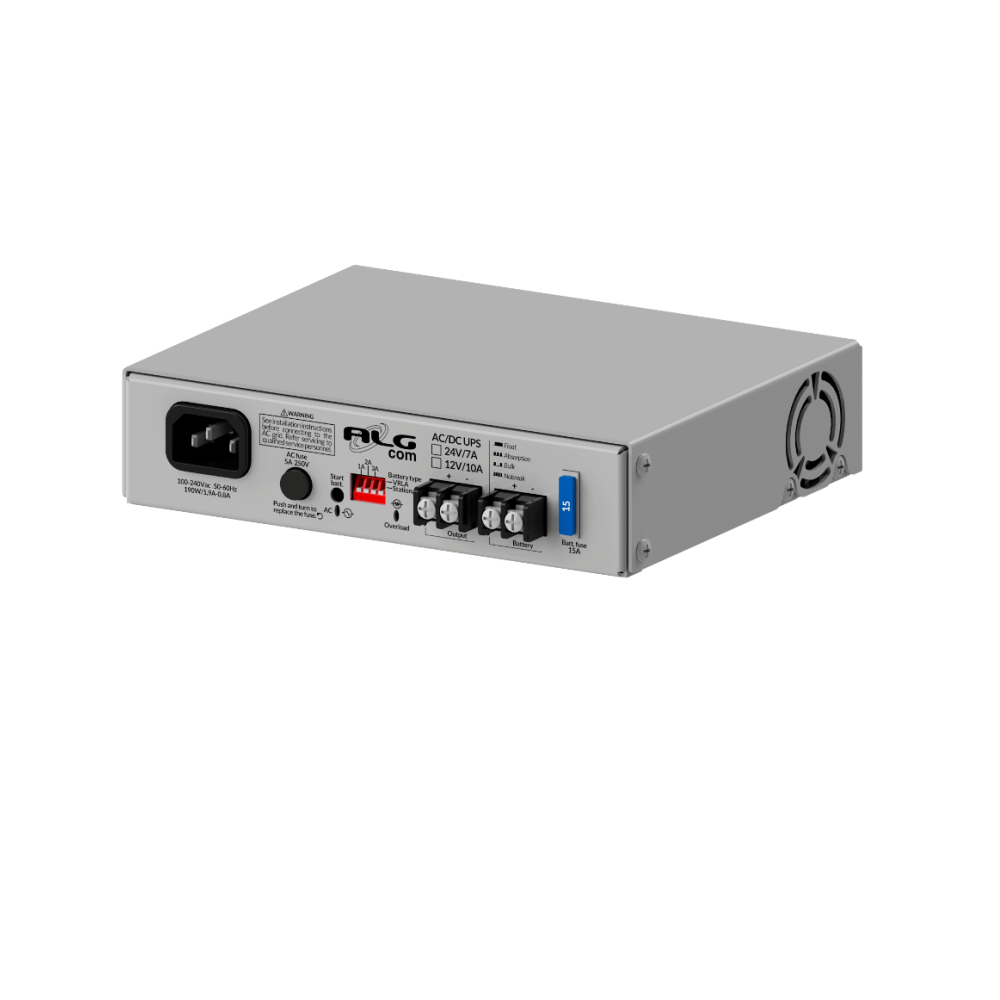

ALGcom FX-1200-10-ST
12V 10A 3Ah Maximum for Battery Charger
The ALGcom DC UPS line is designed to protect your equipment. Compact and easy to install, the ALGcom DC UPS have smart battery chargers and offer the possibility to use the SNMP interface for remote management. All ALGcom DC UPS are 1U high, developed especially for the telecommunications segment.
APLICATION
The ALGcom DC UPS line is designed to protect your equipment against surges and faults, ensuring excellent performance and preventing your equipment from potential problems in the field.COMPACT AND EASY TO INSTALL
The ALGcom DC UPS Line was thought to meet 1U Design standards. Taking up little space, with possibility of installation in vertical and horizontal, the ALGcom DC UPS is performance and efficiency guarantee in telecom.BATTERIES CHARGER
Designed to work with lead acid batteries, the ALGcom Nobreak Sources feature a 3-stage charger, described below. An intelligent algorithm that runs on the source microprocessor controls the charger.
Stage 01-Bulk: Operates with constant current that can be programmed in 1A, 2A or 3A, allowing gradual and controlled charging of the batteries. When they reach full charge, the charger goes to the next stage.
Stage 02-Absorption: At this stage,the charger applies a constant voltage in order to equalize the voltage of each cell of the battery. In this way, the effect of premature sulfating of the plates is minimized, promoting an increase in the battery charge capacity and, consequently, its lifespan. Once the equalization occurs, the charger switches to the next stage.
Stage 03-Float: This is the final stage of the battery charging process, where a constant fluctuating voltage is applied in order to cancel the self-discharge effect, allowing the battery to remain in its best state of charge for a long period.Specifications
Specifications FX-1200-10-ST
Frequency | 50/60GHz |
Rated Voltage Range | 12V |
V Ac/Dc Upss Efficiency | >90% |
Power Factor | >0.5 |
Total Harmonic Distortion Current (Thdi) | <20% |
Electric Shock Protection | Class I |
Output Power | 120W/10A |
Operating Temperature | -10°C to 50°C |
Forced Ventilation | 1 Internal Fan |
Weight | 2.73 lbs |
Dimension | 1.77" H x 7.28" W x 5.83" D |
