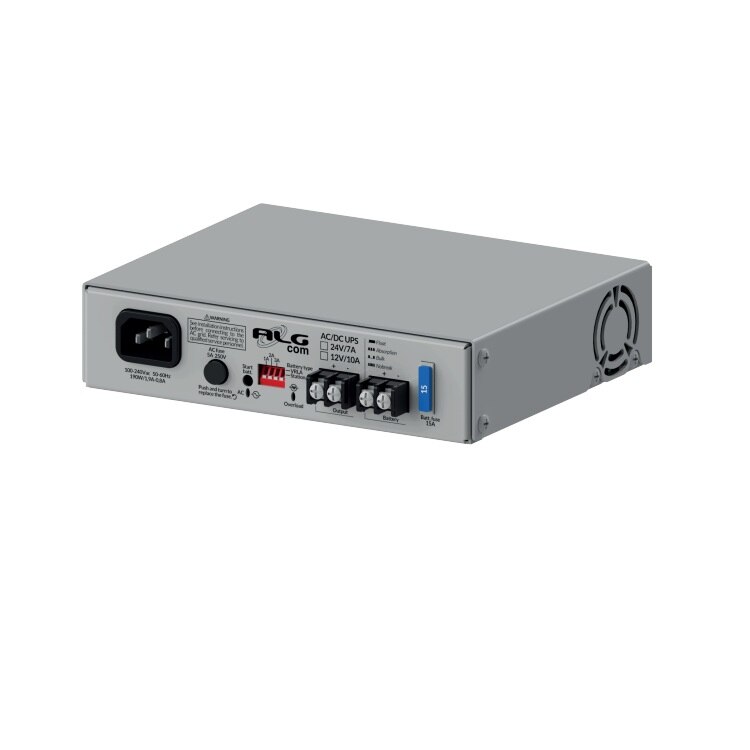

ALGcom 24V 7A 3Ah Maximum for Battery Charger - NON Manageable AC/DC UPS

  • SKU: FX-2400-07-ST
  • Manufacturer: ALGcom
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎105.00

Specifications FX-2400-07-ST

Total output power168W
Maximum charger
Equipment power96W
Equipment output current4A
Charger current3A
Minimum charger
Equipment power144W
Equipment output current6A
Charger current1A
Weight2.73 lbs
Dimension1.77" H x 7.28" W x 5.83" D

ALGcom FX-2400-07-ST

24V 7A 3Ah Maximum for Battery Charger - NON Manageable AC/DC UPS

ALGcom DC UPS line is designed to protect your equipment against surges and faults, ensuring excellent performance and preventing your equipment from potential problems in the field

COMPACT AND EASY TO INSTALL

The ALGcom DC UPS Line was thought to meet 1U Design standards. Taking up little space, with possibility of installation in vertical and horizontal, the ALGcom DC UPS is performance and efficiency guarantee in telecom.

BATTERIES CHARGER

Designed to work with lead acid batteries, the ALGcom Nobreak Sources feature a 3-stage charger, described below. An intelligent algorithm that runs on the source microprocessor controls the charger.

Stage 01-Bulk: Operates with constant current that can be programmed in 1A, 2A or 3A, allowing gradual and controlled charging of the batteries. When they reach full charge, the charger goes to the next stage.

Stage 02-Absorption: At this stage,the charger applies a constant voltage in order to equalize the voltage of each cell of the battery. In this way, the effect of premature sulfating of the plates is minimized, promoting an increase in the battery charge capacity and, consequently, its lifespan. Once the equalization occurs, the charger switches to the next stage.

Stage 03-Float: This is the final stage of the battery charging process, where a constant fluctuating voltage is applied in order to cancel the self-discharge effect, allowing the battery to remain in its best state of charge for a long period.
