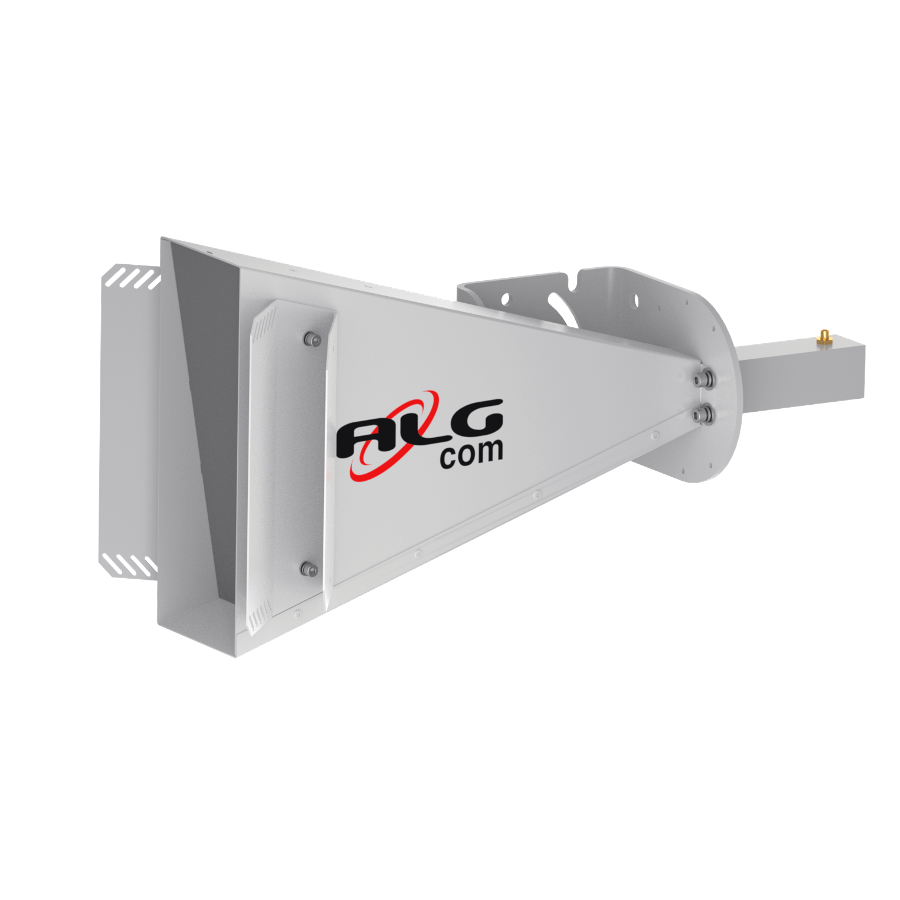

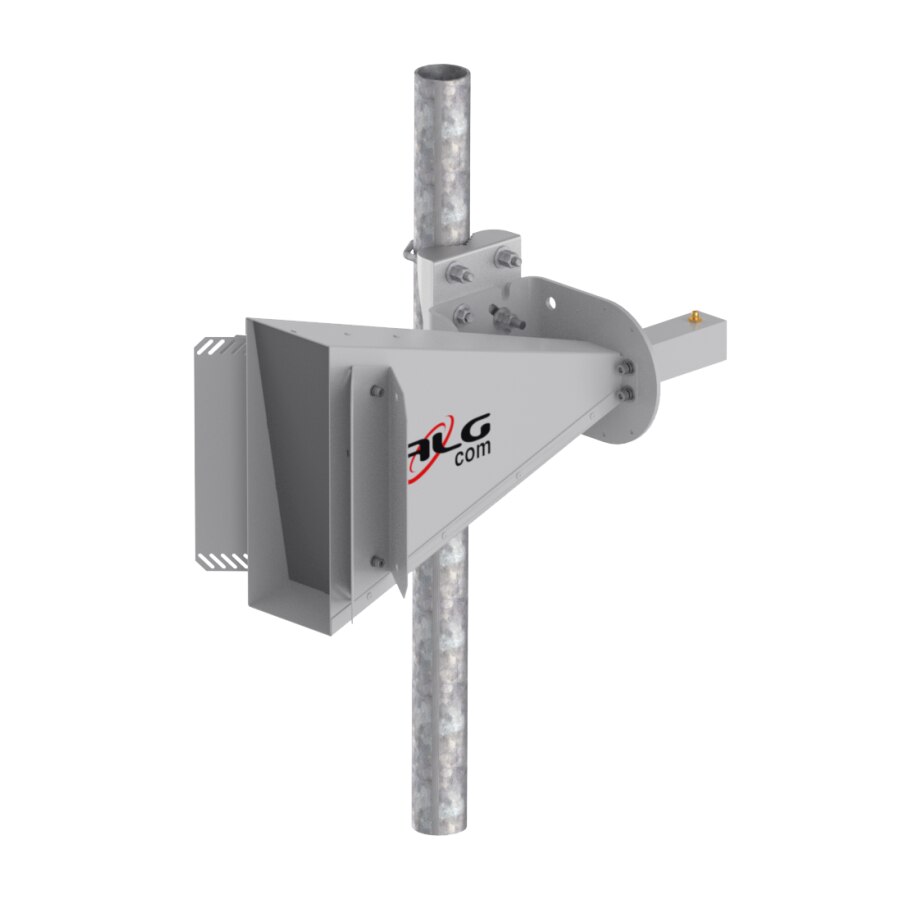

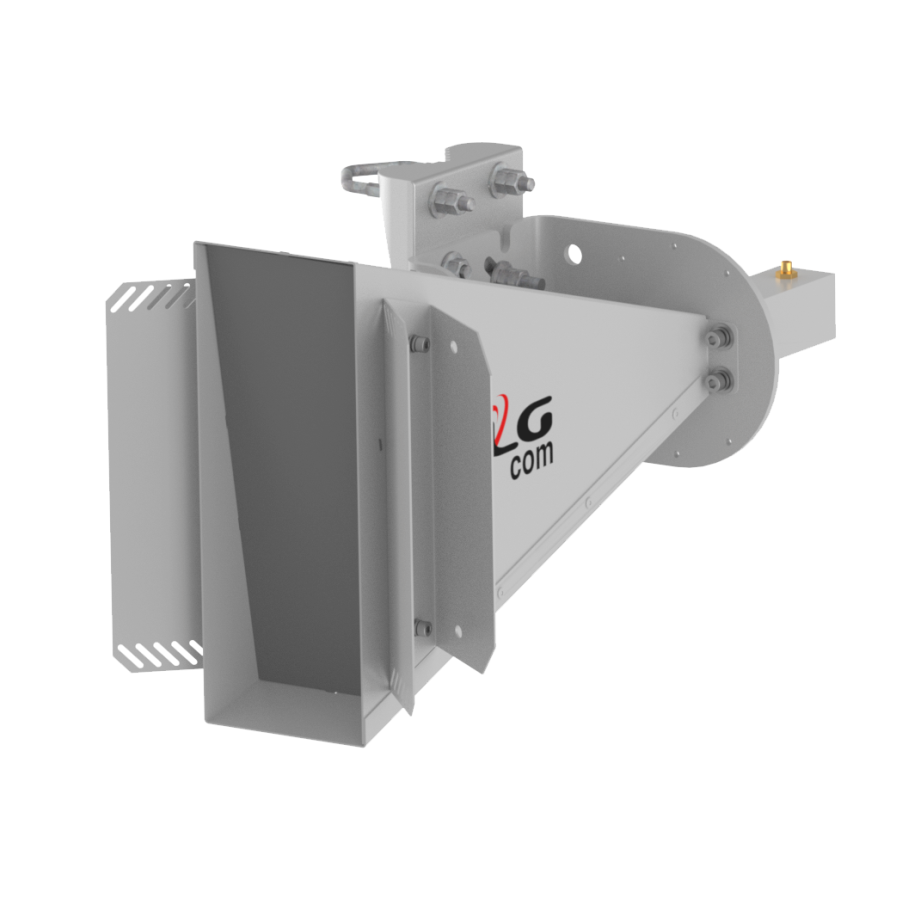

ALGcom 4.9 - 6.4GHz 19dBi Asymmetrical Horn Antenna
- SKU: PD-5800-19-30-DP-UWB
$82.56 $175.00
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information
ALGcom PD-5800-19-30-DP-UWB
4.9 - 6.4GHz 19dBi Asymmetrical Horn Antenna
The ALGcom Asymmetrical Horn Antenna offers double the coverage with the same gain as conventional panels as well as excellent shielding.
Features:
- Double coverage with same gain of conventional panels (18° Vertical)
- Excellent vertical/horizontal shielding through the reduction of side lobes
- Excellent front to back relation
Specifications
Specifications PD-5800-19-30-DP-UWB
| LINK | Point-to-Multipoint |
| COMERCIAL NAME | Wide Band Shielded Sector |
| FREQUENCY | 4.9 - 6.425 GHz |
| FRONT TO BACK RATIO | >37 dB |
| GAIN | 19.3 dBi |
| POWER HALF ANGLE (V) | 13° |
| POWER HALF ANGLE (H) | 30° |
| OPENING ANGLE -6DB(H) | 40° |
| CROSS POLARIZATION INSULATION | >26db |
| POLARIZATION | Dual (V & H) |
| CONNECTION | SMA reverse female |
| WEIGHT | 6.83 lbs |
| DIMENSION | 5.91" H x 13.19" W x 22.05" D |
| WARRANTY | 3 Years |
