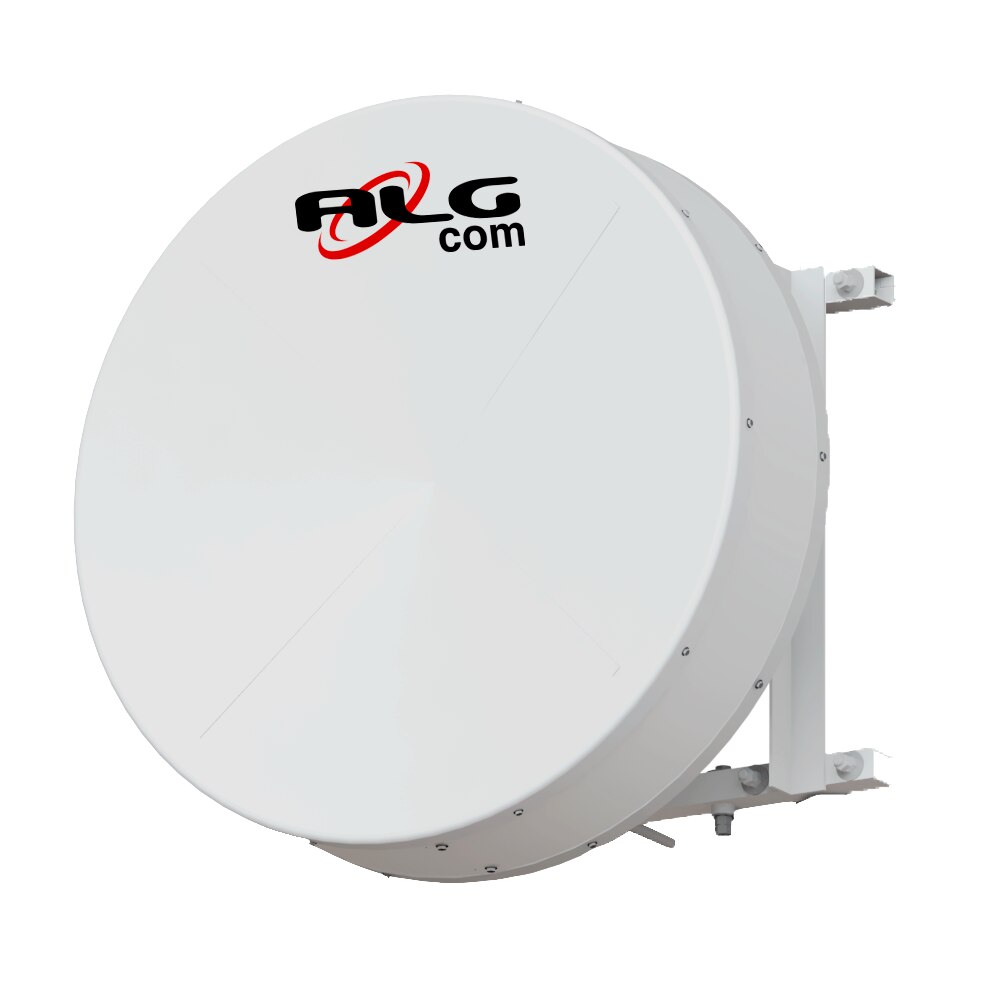

ALGcom PS-10900-37-09-DP-UHP EXP MIMOSA B11

(0)No Reviews yet
  • SKU: PS-10900-37-09-DP MIMOSA B11
US$‎919.00
  • Manufacturer: ALGcom
  • Data Sheet: Download
1 in stock
College Station
1 In stock

Product Information

ALGcom PS-10900-37-09-DP-UHP EXP MIMOSA B11

Microwave antennas were designed to ensure the best performance in data transmission.They are used for Point-to-Point links on licensed frequencies and have direct coupling or through wave guide.

Excellent Shielding

ALG com Microwave Antennas have excellent noise immunity thanks to their side shielding. Check below the radiation diagrams of each of the models.

ALG com Microwave Antennas are designed using electromagnetic simulation and structural calculation softwares, providing the best structural performance, reducing the weight and improving the product life span. In all ALGcom products are used sophisticated calculation methods and state of the art tools. The values identified as wind forces are the result of several fluid dynamics simulations made with numerical analysis software and aerodynamic property calculations. The patterns determine resistance and wind forces coefficients that act on the antenna, leading a load to the mounting pipe. This load can be divided in an axial force, a lateral force and a torsion moment. Aspects like the shape of antenna, radome, and reflectors are taken into account too



Features:

  • Licensed frequency 11 GHz
  • Performance irradiation with excellent noise immunity
  • Robust mounting hardware and easy link alignment

Specifications

Specifications PS-10900-37-09-DP-UHP EXP MIMOSA B11

Cross Polarization Insulation> 35 dB
Diameter0.3 m | 3ft
PolarizationSimple (V and H) and Double (V and H)
Gain37.4 dBi
ConnectionCustomizable
Power Half Angle2.1 degree
Weight22 kg, 48.50 lb
Frequency10 GHz
Front-To-Back Ratio>58 dB
LinkPoint-to-Point
Operating Frequency10 - 11.7 GHz
Warranty3 YEARS
