ALGcom 4.9~6.425Ghz, H 90º V 90º 10dbi gain FBR>37dB, RP-SMA female, Radio Mounting Kit
US$165.00
- SKU: SH-5800-10-90-DP
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information

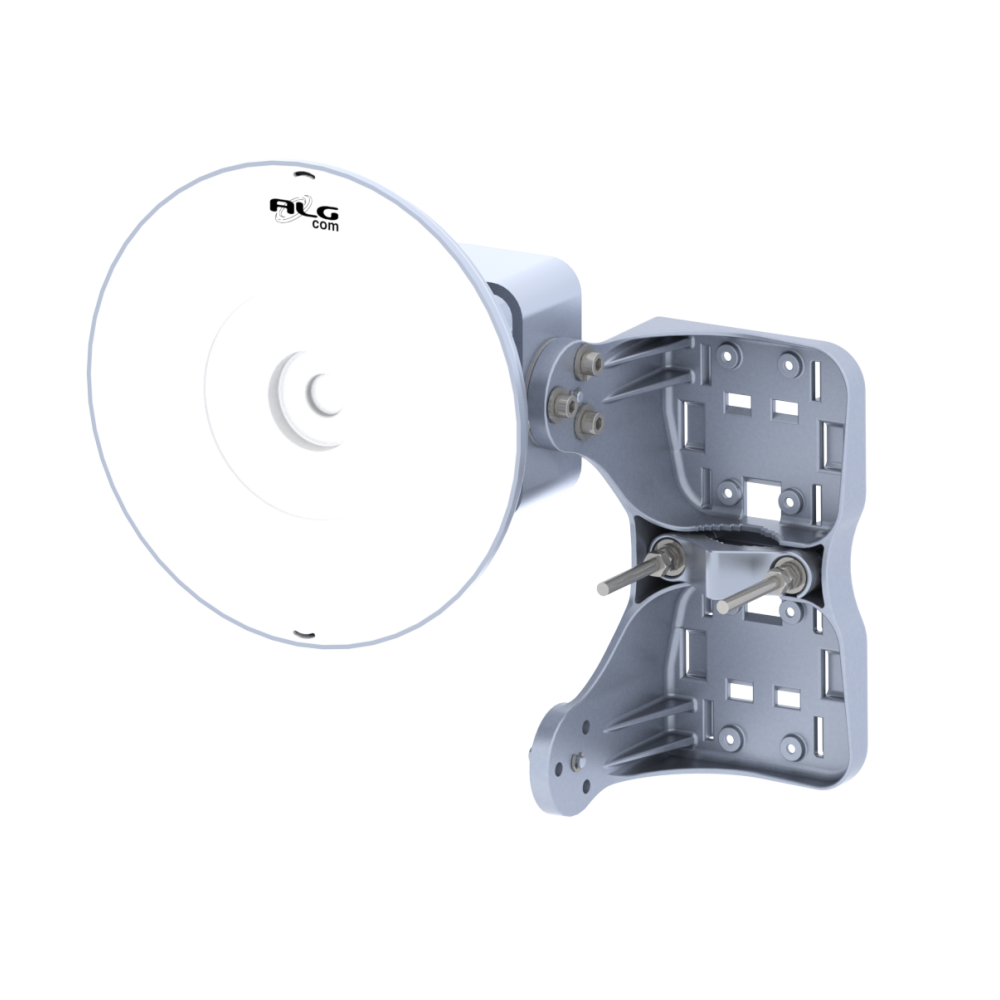

ALGcom SH-5800-10-90-DP
4.9~6.425Ghz, H 90º V 90º 10dbi gain FBR>37dB, RP-SMA female, Radio Mounting Kit
Symmetrical Horn Features:
- Incredible bandwidth: 4.9-6.425 GHz
- Symmetric radiation pattern with excellent isolation to noise.

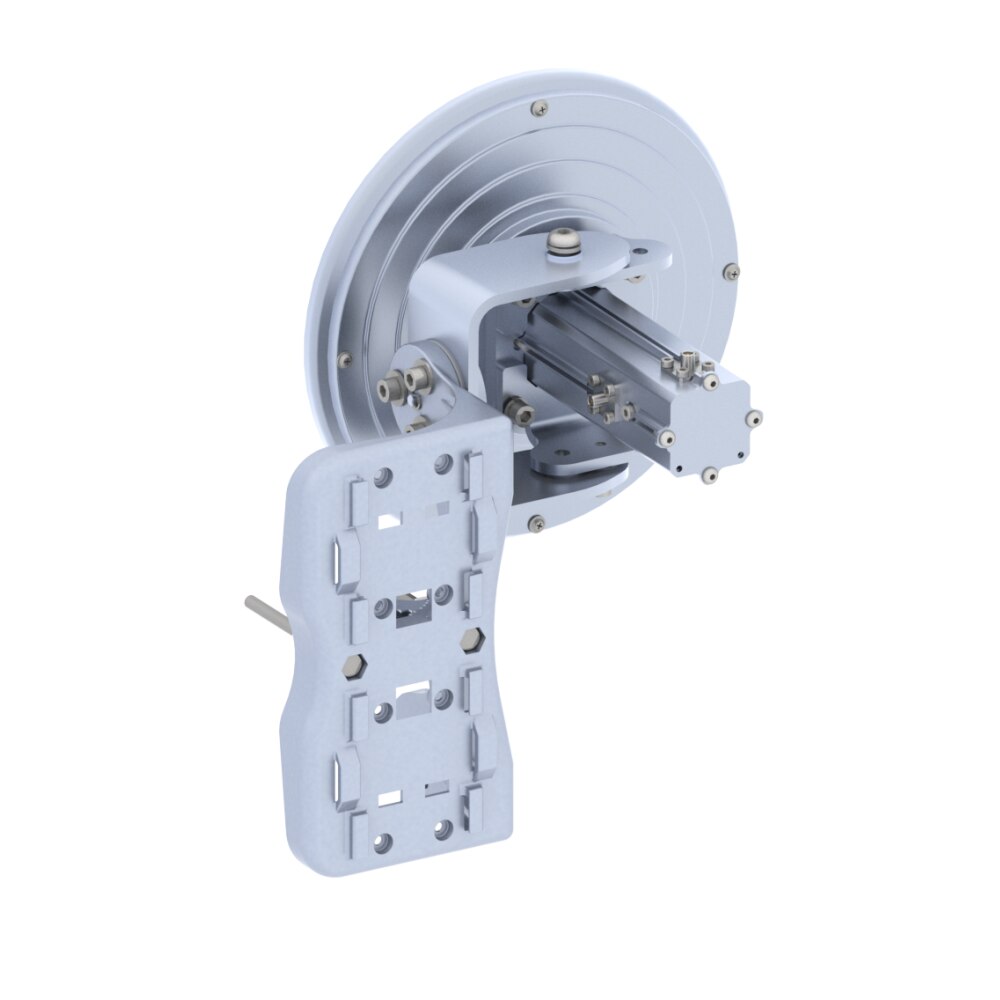

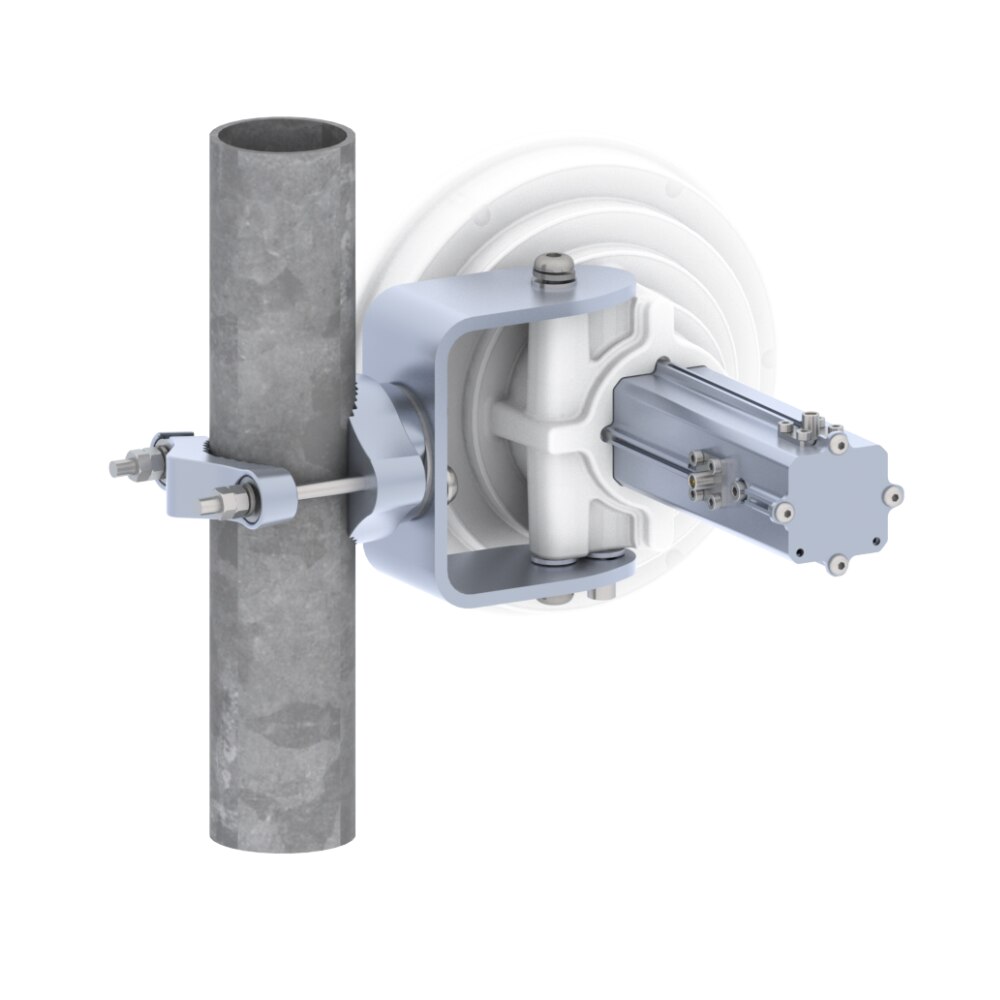

- Mounting hardware ready to easily fix different radios
- Quick and practical azimuth and elevation adjustment.
Specifications
Specifications SH-5800-10-90-DP
| LIK | Point-Multipoint |
| COMERCIAL NAME | Symmetrical Horn |
| FREQUENCY | 4.9-6.425 GHz |
| GAIN | 10.9 dBi |
| FRONT-TO-BACK RATIO | >37 dB |
| POWER HALF ANGLE | 61.4° |
| PORT-TO-PORT ISOLATION | >30 dBi |
| POLARIZATION | Double (V and H or Slant +/- 45º) |
| CONNECTION | N female or SMARP |
| WEIGHT | 1.82 kg |
| WARRANTY | 3 Years |
