Product Information

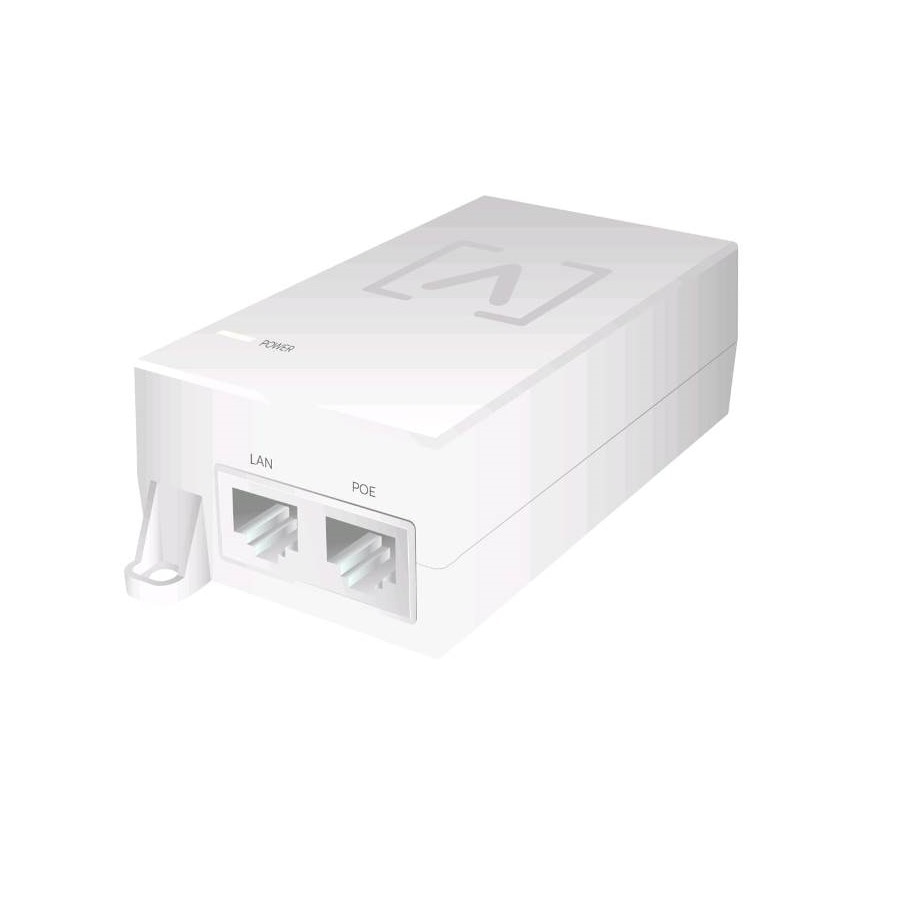

ALTA Labs INJECTOR-POE+
Alta AP POE+

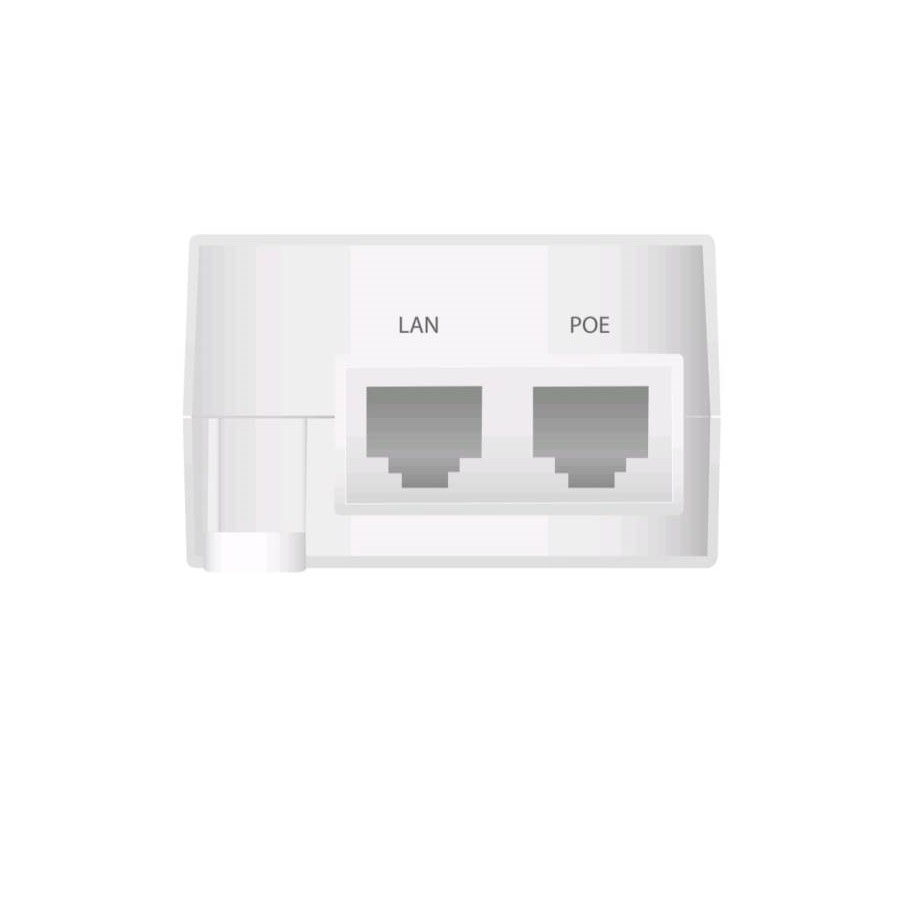

LAN: This port is used to connect to your wired network. You're not required to use this connection as you can use the powered AP in mesh mode. While this is an optional connection, it is highly recommended for optimal performance. An Ethernet cable connects this port to your broadband router, non-PoE+ network switch, or other appropriate non-PoE+ network connection.
POE: This port is used to connect to your PoE+ powered device such as the AP6 or AP6-Pro WiFi 6 Access Point. In mesh mode, only power is delivered via Ethernet. If the LAN is connected, data is also delivered over the Ethernet connection.

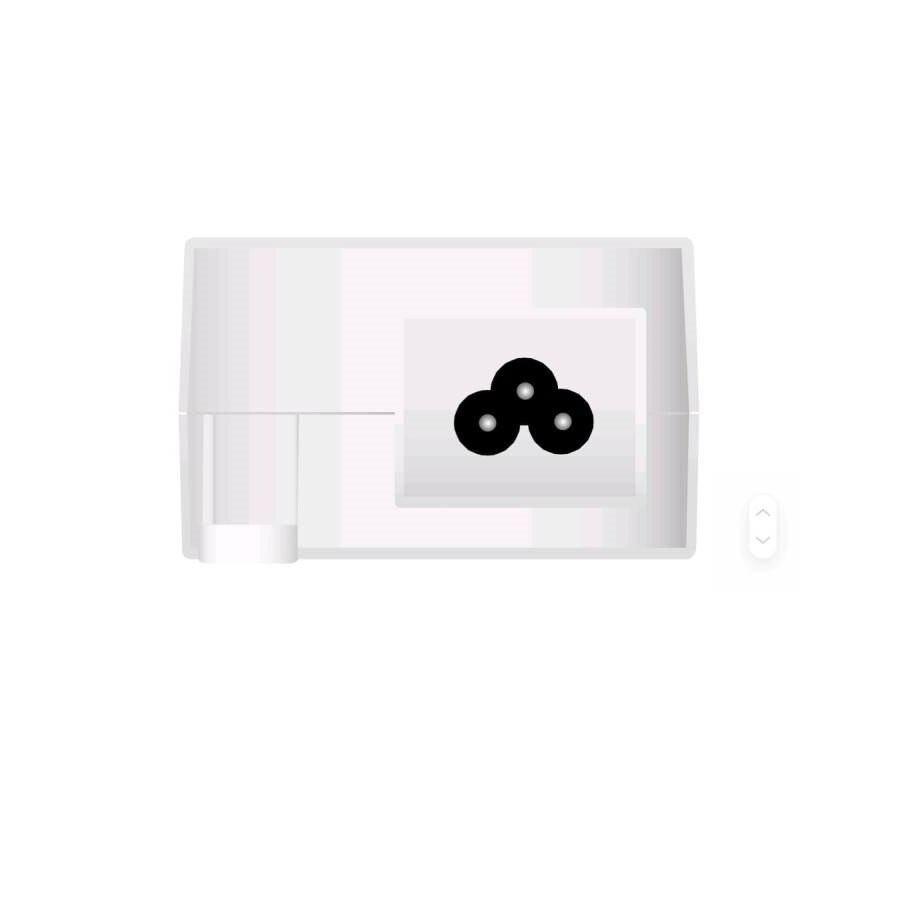

POWER: This port is where the included power cord connects. The other end is connected to a power source such as a power outlet or power strip.

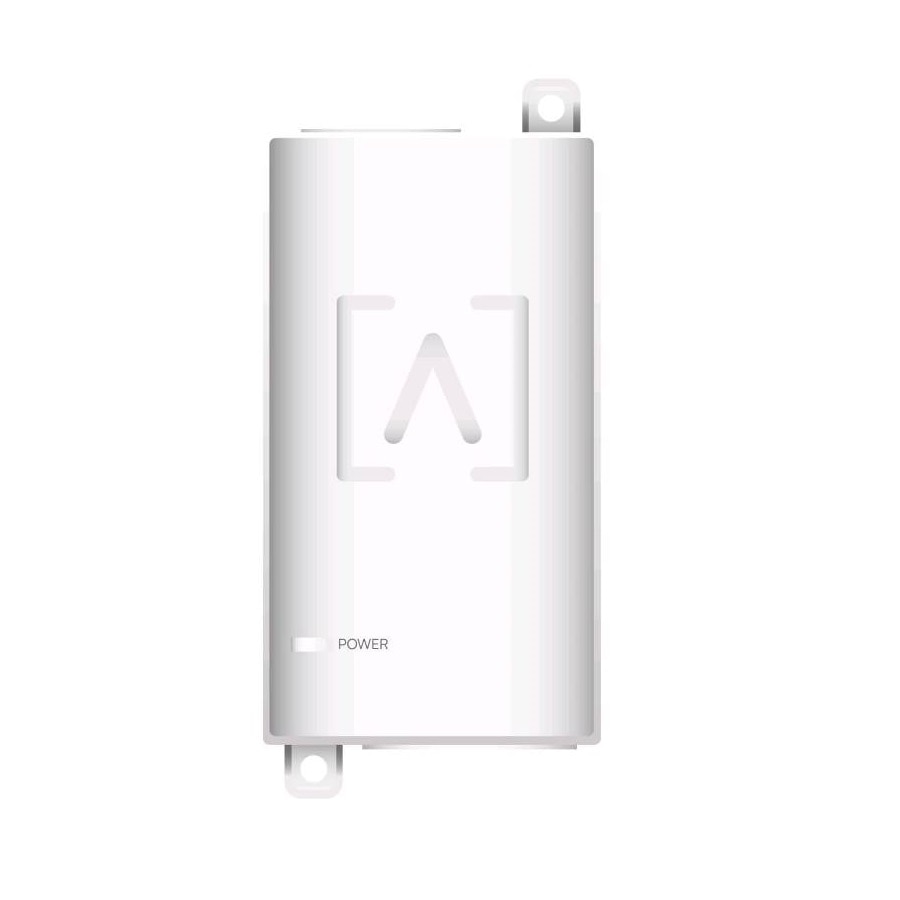

POWER LED: The LED will illuminate white when the Injector-POE+ is properly connected to a power source.
Specifications
Specifications INJECTOR-POE+
| Dimensions | 4.5 x 2.1 x 1.3" (113.6 x 53.5 x 33.5 mm) |
| Weight | 0.3 lbs (145 g) |
| Network Interface | Ethernet |
| Ports | (2) GbE RJ45 Port |
| LED | White |
| Input Voltage | 100V~240Vac |
| AC Input Voltage Frequency Range | 50~60Hz |
| AC Input Current | 0.7A(Max) |
| Output Voltage | 48V |
| Output Current | 0.63A |
| Mounting | Wall |
| Operating Temperature | 32 to 104° F (0 to 40° C) |
| Storage Temperature | -22 to 158° F (-30 to 70° C) |
| Operating Humidity | 35 to 90% RH Noncondensing |
| Noncondensing Certifications | CE, FCC, IC |
