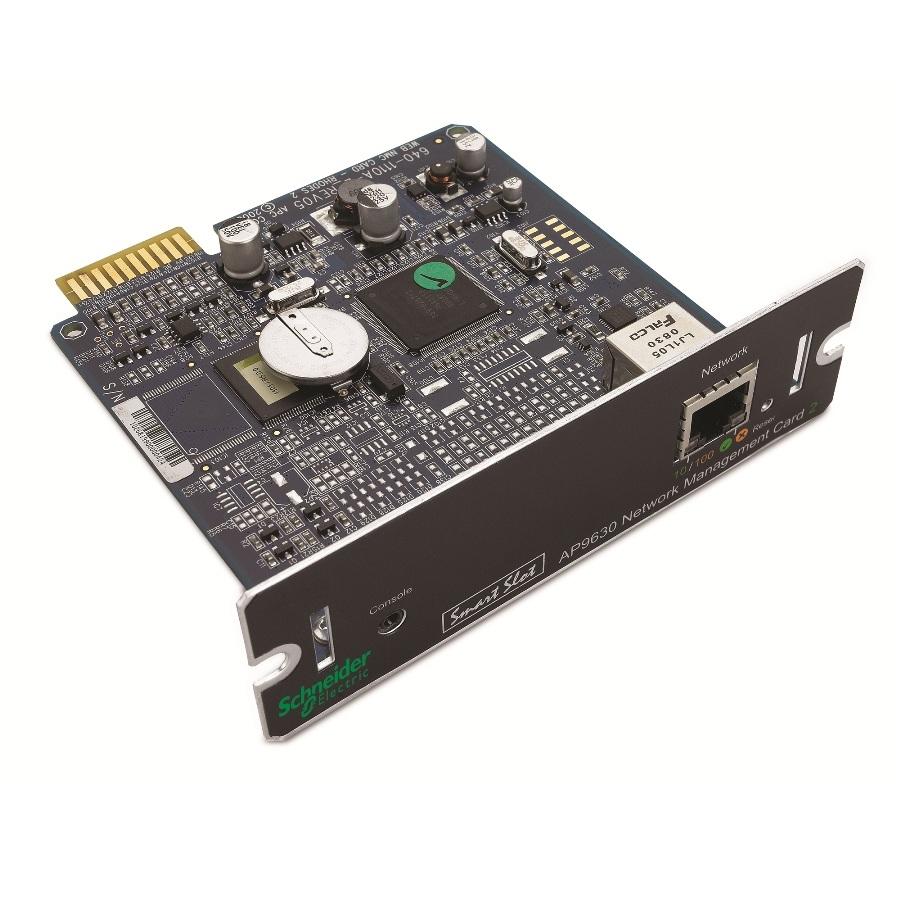

APC UPS Network Management Card 2

  • SKU: AP9630
  • Manufacturer: APC
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 2 In Stock (updated live)
$‎339.99

Specifications AP9630

Communications & Management
AuthenticationRadius
Physical
Maximum Height1.5inches (38MM, 3.8CM)
Maximum Width4.75inches (121MM, 12.1CM)
Maximum Depth4.5inches (114MM, 11.4CM)
Net Weight0.18lbs. (0.08KG)
Shipping weight0.75lbs. (0.34KG)
Shipping Height2.0inches (51MM, 5.1CM)
Shipping Width9.25inches (235MM, 23.5CM)
Shipping Depth6.25inches (159MM, 15.9CM)
ColorBlack
Environmental
Operating Temperature32 - 113 °F (0 - 45 °C)
Operating Relative Humidity0 - 95 %
Operating Elevation0-10000ft (0-3000meters)
Storage Temperature-5 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0-50000ft (0-15000meters)
Conformance
ApprovalsAS/NZS 3548 (C-Tick) Class A, EN 55022 Class A, EN 55024, FCC Part 15 Class A, GOST, ICES-003, VCCI Class A
Standard warranty2 years repair or replace
Sustainable Offer Status
RoHSCompliant
REACHREACH: Contains No SVHCs
PEPAvailable in Documentation tab
EOLIAvailable in Documentation tab
Battery DirectiveCompliant

APC AP9630

UPS Network Management Card 2

Remote monitoring and control of an individual UPS by connecting it directly to the network.

UPS Network Management Cards Features & Benefits

Availability

  • Reboot equipment remotely
  • Saves dispatching technicians to remote locations.

Protection

  • Password Security User-selectable password with strong password rules and reset password mechanism.
  • PowerChute Network Shutdown Reliable network-based shutdown of multiple servers
  • Radius support Use an existing radius server to securely authenticate, authorize, and account for your APC device.
  • Multi-tier user access Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.

Manageability

  • Enterprise management system compatible Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
  • Notification Be notified of problems to ensure crucial situations are dealt with in a timely manner.
  • Event logging Pinpoint the timing and sequence of events leading up to an incident with the event log.
  • Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Scheduling Customize shut down and reboot of connected equipment and UPSs.
  • Data logging Identify problematic trends before they escalate or export the data log for analysis.

Total Cost of Ownership

  • Flash upgradeable firmware Install maintenance releases of firmware remotely using FTP.
  • Browser Accessible View the user interface with a browser. Provides quick access from anywhere on a secure network.

Marketing Features

  • Remote device management Enable management of your UPS by connecting it directly to the network.
  • Enterprise management system compatible Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
  • Fault notification Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
  • Browser Accessible View the user interface with a browser. Provides quick access from anywhere on a secure network.
  • Reboot equipment remotely Saves dispatching technicians to remote locations.

Features:

  • BACnet/IP Support Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS and Symmetra only).
  • Command line interface Offers simultaneous remote management access through Telnet and SSH
  • Compatible with SmartSlot enabled UPSs Compatible with all SmartSlot UPSs
  • Device Encryption Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • IPv6 Support Capable of operating on a network using IPv6 protocol
  • Modbus TCP Support Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • Multiple user access Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Smart Battery Management Support Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
