  • APC 4 Position Chassis for Replaceable Data Line Surge Protection Modules, 1U

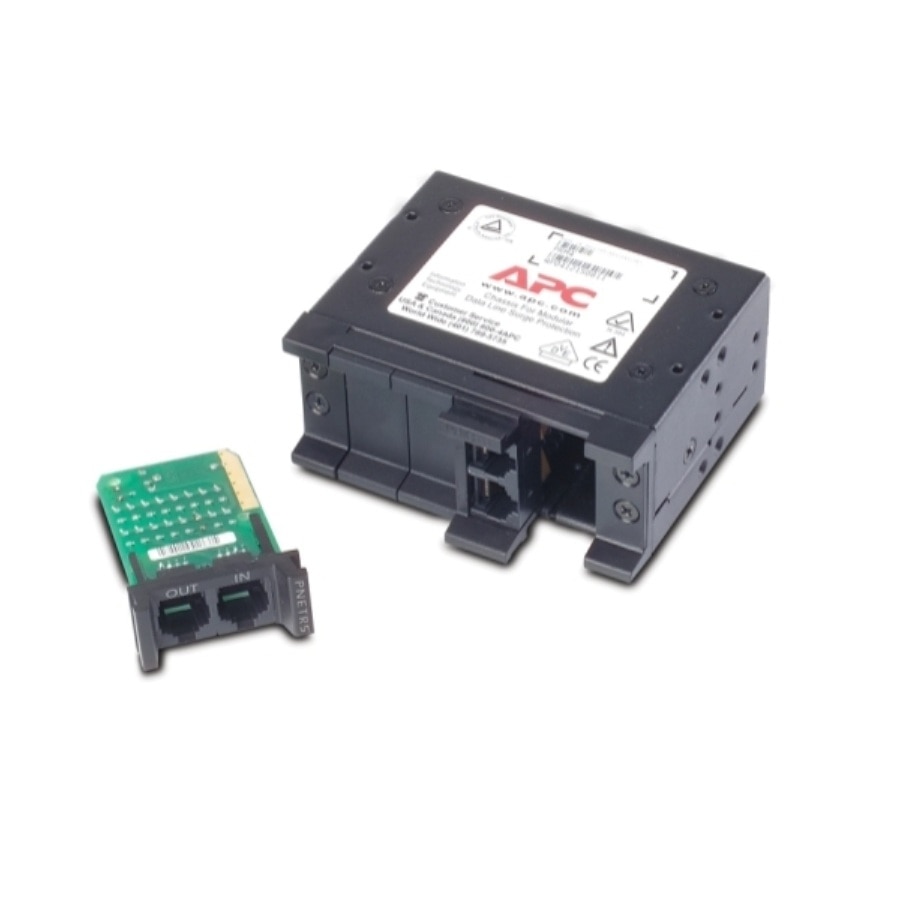

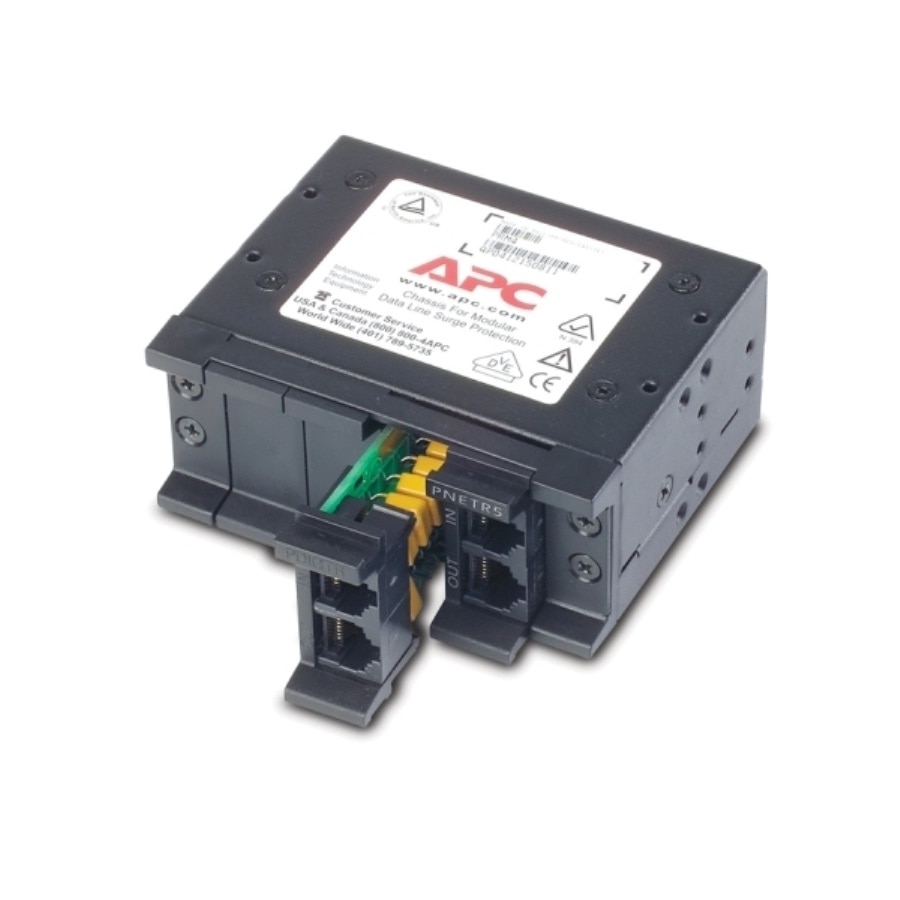

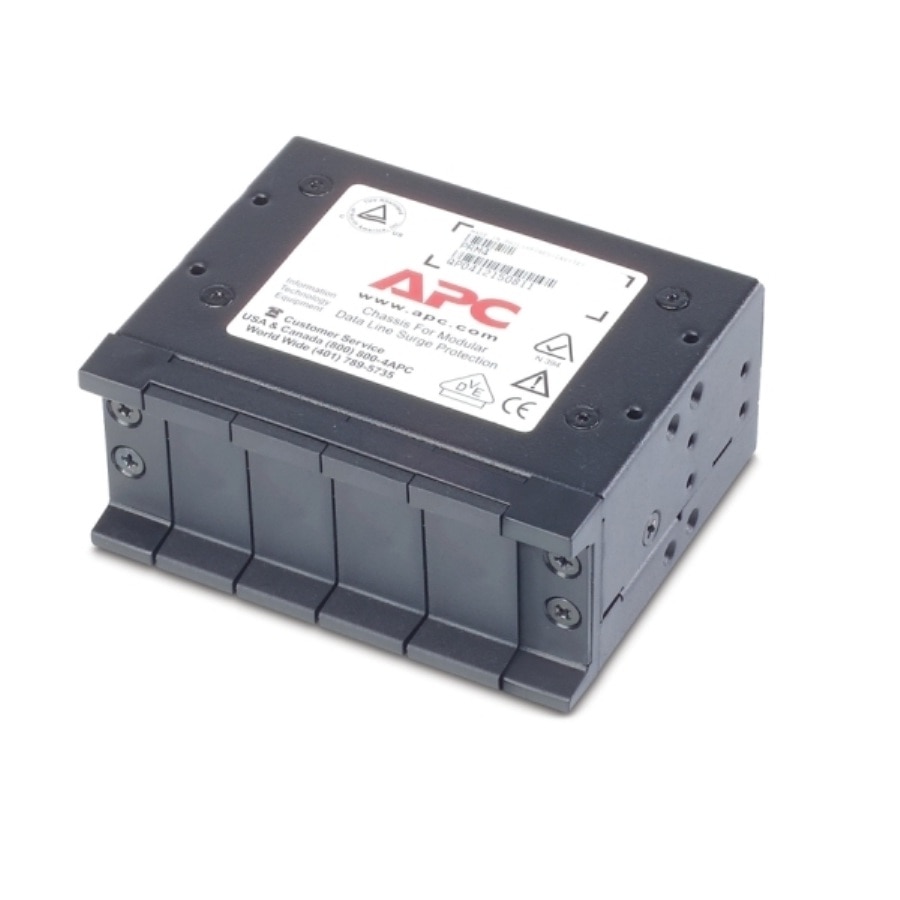

APC 4 Position Chassis for Replaceable Data Line Surge Protection Modules, 1U

  • SKU: PRM4
  • Manufacturer: APC
  • Spec Sheet: Download
  • User Guide: Download
  • Availability: 3 In Stock    (updated live)
US$‎24.24

Specifications PRM4

Physical
Maximum Height 1.7inches (44MM, 4.4CM)
Maximum Width 4.0inches (102MM, 10.2CM)
Maximum Depth 3.3inches (83MM, 8.3CM)
Net Weight 0.66lbs. (0.3KG)
Shipping weight 0.97lbs. (0.44KG)
Shipping Height 2.5inches (64MM, 6.4CM)
Shipping Width 5.7inches (146MM, 14.6CM)
Shipping Depth 5.0inches (127MM, 12.7CM)
Color Black
Master Carton Dimensions (Length x Width x Height)15.5 x 12 x 17.5inches (394 x 305 x 445MM)
Master Carton Units 38.0
Master Carton Weight 38.49lbs. (17.46)
SCC Codes 30731304217177
Environmental
Operating Temperature 5 - 113 °F (-15 - 45 °C)
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 10000ft (0 - 3048meters)
Storage Temperature -15 - 45 °C
Storage Elevation 0 - 10000ft (0 - 3048meters)
Conformance
Approvals TÜV, VDE
Standard warranty Lifetime
Sustainable Offer Status
RoHS Compliant

APC PRM4

4 Position Chassis for Replaceable Data Line Surge Protection Modules, 1U

Data-line Protection

Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.

Fail Safe Mode

Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.

Lightning and Surge Protection

To prevent damage to your equipment from electric power surges and spikes.
