  • Adtran Bluesocket 6040 Wi-Fi 6 (802.11ax) Indoor 4x4:4 Access Point

Adtran Bluesocket 6040 Wi-Fi 6 (802.11ax) Indoor 4x4:4 Access Point

(0)No Reviews yet
  • SKU: 1700972F1
$895.00
  • Manufacturer: Adtran
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Adtran 1700972F1

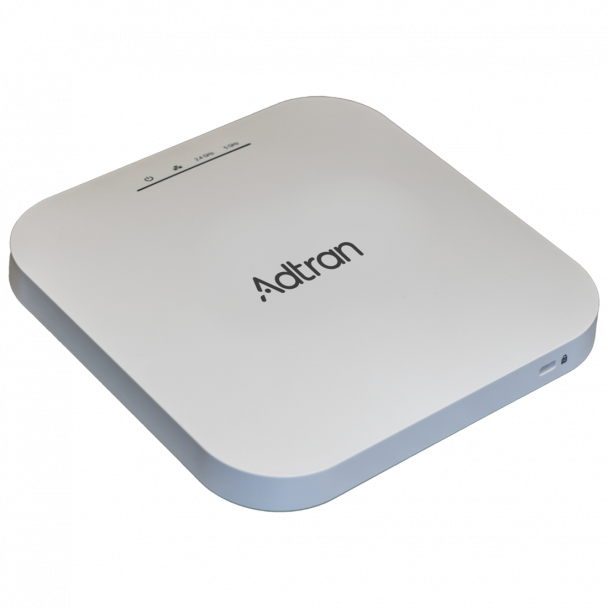

Bluesocket 6040 Wi-Fi 6 (802.11ax) Indoor 4x4:4 Access Point

The Bluesocket 6040 indoor AP offers enterprise-grade performance and reliable coverage in high-density wireless environments, like indoor arenas, conference centers, libraries, and other high-traffic areas. It supports four transmit and four receive streams providing data rates up to 3.6 Gbps per AP. In addition, the Bluesocket 6040 includes four Multi-User MIMO (MU-MIMO) internal antennas with up to 5dBi peak gain and is fully functional when powered by an 802.3af PoE solution. Note: an on-premises or an Elite Cloud license is required.



Features:

  • Enterprise-class Wi-Fi 6 (802.11ax) Indoor Access Point
  • Full 4x4:4 SU and MU-MIMO Performance, Offering Aggregated Data Rates Up to 3.5 Gbps (2.4 Gbps for 5 GHz and 1.1 Gbps for 2.4 GHz)
  • Bidirectional OFDMA Uses Air Resource for Access Points and Client Device Efficiency
  • BSS Coloring Technology to Uniquely Distinguish Traffic for Higher Efficiency in Dense Deployments
  • Built-In Powerful Qualcomm Quad-Core CPU for Driving and Boosting Performance Effectively
  • Fully Functional With 802.3at PoE+
  • “Zero-Touch” Deployments Automatically Discover vWLAN, and Download Firmware and Configurations
  • Dynamic RF For Automatic Channel, TX Power, and Neighbor Discovery
  • Bluetooth 5.0/LE Radio For Beacon Or Lot Applications
  • Provides Class Of Service Levels For Prioritizing Multi-Users And Multiservices
  • Stateful Firewall at The Edge and WPA3 Encryption for Added Security
  • Fully Compliant With Wi-Fi 6 Standards And Backwards Compatible With Wave2/ac/a/b/g/n Client Devices

Specifications

Specifications

Interfaces● Port 1 – 10/100/1000/2500Mbps Base-T RJ-45 (POE+ IN)
● Port 2 – 10/100/1000Mbps Base-T RJ-45
● USB 2.0 (Type-A) Port
Access Point Type● Indoor, Dual Radios Concurrent
● SU-MIMO
● Four (4) 2.4GHz Spatial Stream and
● Four (4) 5GHz Spatial Streams Totaling 3.5 Gbps
● MU-MIMO
● MU-MIMO Allows Multiple Spatial Streams to be Allocated to Different Clients Simultaneously on Both Download and Upload Sides
● BT/BLE 5.0 Radio Available
● 5GHz/2.4GHz 802.11a/b/g/n/ac/ax 1x1 Selectable Scanning Radio Available
Radio Frequency● 2.4GHz: 2400MHz ~ 2496MHz,
● 5GHz:
5150MHz ~ 5250MHz
5250MHz ~ 5350MHz
5470MHz ~ 5725MHz
5725MHz ~ 5850MHz
Transmit Power (Maximum Value)● 2.4GHz: 23dBm
● 5GHz: 23dBm
Antenna● Internal Antenna (Peak Gain)
● Wi-Fi 2.4GHz & 5GHz: 5 dBi
● Scanning Radio
2.4GHz/5GHz : 2 dBi
BT/BLE 5.0 : 2 dBi
Status LEDs● Power
● LAN 1
● LAN 2
● 2.4GHz Radio
● 5GHz Radio
● Scanning Radio
Security● WPA3 Open
● WPA/WPA2/WPA3-Personal
● WPA/WPA2/WPA3-Enterprise
● 802.1X Port-Based Authentication
● Open System (WEP-64/128)
● Shared System (WEP-64/128) EAP-TTLS
● WMM (802.11e)
● EAP-PEAP
● EAP-FAST
● EAP-TLS
● EAP-SIM
● EAP-AKA
Power● 802.3at (PoE+) Compliant
● External 12V DC Power Adapter
● Max Power: 24 Watts (USB included)
Chassis● Plastic Enclosure
● Dimensions: 8 in. x 8 in. x 1.3 in. (20.5 cm x 20.5 cm x 3.4 cm) (H x W x D)
● Weight: 3 lbs. (1.36 Kg)
Mounting● Wall/Ceiling Mount With Included Accessories
● Pole Mount With Included Accessories 9/16” and 15/16” T-Rail
● Junction Box Mounting Kit Sold Separately
Environment● Operating Temperature: 32° to 104°F (0° to 40°C)
● Storage Temperature: -40° to 158°F (-40°C to 70°C)
● Relative Humidity: Up to 95%, Non-Condensing
Agency Approvals● Electrical/Safety Compliance
● UL 1950
Radio Approvals● EFCC Part 15 B
● FCC Part 15.247
● FCC Part E 15.407
● FCC Part 15.107
● FCC Part 15.109
Warranty● Limited Lifetime Warranty
