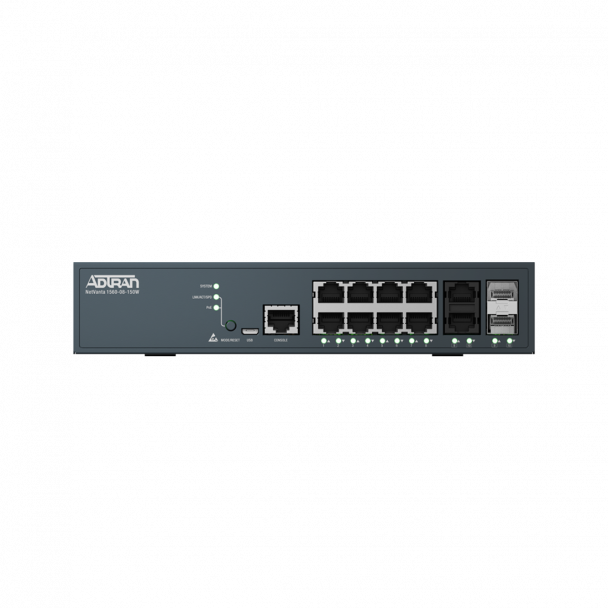

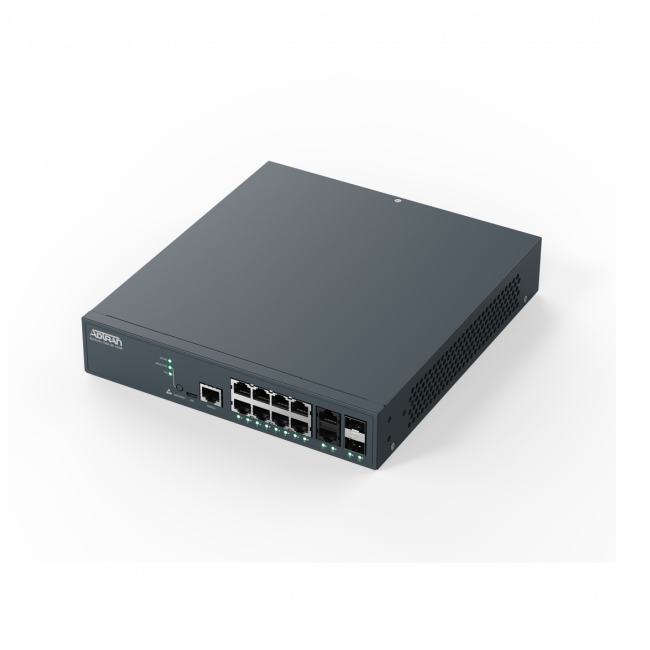

Adtran NetVanta 1560-08-65W 8-port, Layer 3, Gigabit PoE+ Ethernet Switch 65 Total Watts
- SKU: 17101561PF2
$605.00
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 17101561PF2 NETVANTA 1000 SWITCH
8-port, Layer 3, Gigabit PoE+ Ethernet Switch supporting 65 Total Watts
The Adtran NetVanta 1560-08-65W is an enterprise-class, fully managed 8-port Gigabit PoE+ switch delivering 65 total Watts of power. This switch is best for Gigabit to the desktop and Voice over IP (VoIP) applications. It\'s purpose built for enterprises looking to upgrade their networks with high-performance, reliable, scalable and easy-to-manage switching solutions. NetVanta 1560-08-65W switch offers advanced multilayer switching, high-bandwidth capabilities, voice-aware features, and the right functionality to enable scaling from small business to enterprise-sized networks.
Features:
- 8 - 10/100/1000 Base-T ports
- 2 - 1 Gbps combo copper/SFP Ports
- RJ-45 console port and micro USB port for management
- Non-blocking Layer 2 and Layer 3 switching capacity up to 176 Gbps
- Fully managed (Web GUI, CLI, SNMP)
- Industry standard CLI and config
- 802.3at (POE+), 802.3af (PoE) and Legacy PoE up to 65 total Watts
- Feature-rich Adtran switch engine for enterprise Ethernet switching
- Supports 802.1q VLANs and trunking, STP, IGMP
- Supports ERPS for high-level redundancy and up-time protection
- Advanced smart switching features (ACLs, L2/L3/L4 DiffServ, QoS policies, LACP link aggregation, broadcast control, denial of service protection)
- Faster VoIP deployments with VoIP VLAN and discovery
- Port queue-level policing and shaping
Specifications
Specifications 17108108PF2
| Ethernet Ports | ■ NetVanta 1560-08 (65W & 150W): ◆ 10 x 10/100/1000Base-T ◆ 2 x 1Gbps SFP Port ■ NetVanta 1560-24 (370W & 740W): ◆ 24 x 10/100/1000Base-T ◆ 2 x 10 Gbps SFP+ Ports ■ NetVanta 1560-48 (370W & 740W): ◆ 48 x 10/100/1000Base-T ◆ 4 x 10 Gbps SFP+ Ports |
| Console Port | ■ RJ-45 ■ Micro USB |
| Switching Performance | ■ Non-blocking Layer 2/3 Switching ■ 32,000 MAC addresses ■ 4,095 VLANs ■ Up to 176 Gbps forwarding bandwidth |
| Layer 2 Support | ■ 802.1q VLAN switching and Trunking ■ 802.1d Spanning Tree ■ 802.1w Rapid STP ■ 802.1s Multiple STP ■ ERPS G.8032 supporting up to 100 rings ■ 802.3ad Link Aggregation ■ Jumbo Frames (10240) ■ IGMP v1/v2/v3 Snooping/Querier/Proxy ■ MLD v1/v2 Snooping ■ 802.3x Flow Control ■ GVRP/MRP/MVRP ■ Loop Protection |
| Layer 3 Support | ■ DHCP relay ■ UPnP ■ 1000 ARP Entries ■ 128 Static Routes (IPv4 and IPv6) |
| Diagnostics | ■ Port and Flow Mirroring ■ Uni Directional Link Protection ■ LLDP (802.1ab) ■ LLDP-MED ■ Ping, Traceroute ■ sFlow ■ Cable Diagnostics |
| Front Panel Status LEDs | ■ Status ■ LAN: Link, Activity ■ LED Port Button: Toggle Port LEDs between Link, Activity, and POE Status |
| Quality of Service | ■ 802.1p, Drop Precedence Level, DSCP, Priority Code Point ■ Eight hardware queues per port ■ Classification and remarking ACLs ■ Strict Priority Scheduling ■ Weighted Round Robin (WRR) ■ Policing and Shaping per port ■ Port and Queue based ■ WRED ■ QoS Control List ■ Drop Eligible Indicator ■ Ingress and Egress Maps ■ Storm Policing |
| VLAN | ■ 4K VLANs simultaneously ■ Port-based VLANs ■ 802.1Q Tagged Trunked VLANs ■ Voice VLANs ■ MAC-based VLAN ■ Management VLAN ■ Q-in-Q VLAN ■ Private VLANs ■ Protocol-based VLAN |
| Security | ■ 802.1x Port Authentication ■ L2 VLAN client isolation ■ Port Security ■ IP source guard ■ RADIUS/TACACS+ ■ DoS Protection ■ DHCP Snooping ■ Hardware ACLs ■ Users and Privilege Levels ■ ARP Inspection |
| Administration | ■ CLI (Console/Telnet/ SSH) ■ SNMP v1,v2c,v3 ■ Web-based GUI ■ Dual image ■ SYSLOG ■ RMON ■ sFlow ■ RADIUS ■ TACACS+ ■ NTP ■ n-Command Support |
| PoE | ■ 802.3af (PoE), 802.3at (PoE+) and Legacy PoE ■ Max 30 Watts per Port ■ 802.3az Energy Efficient Ethernet ■ Power Management ■ PoE Scheduling |
| Environment | ■ Operating Temperature: 0° to 50°C (32° to 122°F) ■ Storage Temperature: -20° to 70°C (-40° to 158°F) ■ Relative Humidity: Up to 95%, non-condensing |
| NetVanta 1560-08 (65W & 150W) | ■ Chassis: 1U Metal Enclosure, ■ Desktop, Wall and Rackmountable ■ Dimensions: 1.73 in. x 8.66 in. x 9.53 in. (4.4 cm x 22 cm x 24.2 cm) (H x W x D) ■ Weight: 4.63 lbs (2.1 Kg) ■ Voltage: 100-240 VAC, 50/60 Hz ■ Max Power: 170 Watts ■ PoE Power: 65W & 150W |
| Agency Approvals | ■ FCC Part 15 Class A ■ IECS-003 Class A ■ ETSI EN 300 386 ■ UL/CSA 60950-1 and IEC60950-1 ■ CE Marking ■ RoHS Compliant ■ RCM mark for Australia and New Zealand |
| Warranty | ■ Limited Lifetime Warranty ◆ Includes access to phone product support |
