Adtran NetVanta 1760-8F 8-port, 10 Gigabit, Fiber Aggregation Switch
- SKU: 17101762F1
$3,567.20
+ $73.83 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
Adtran 17101762F1

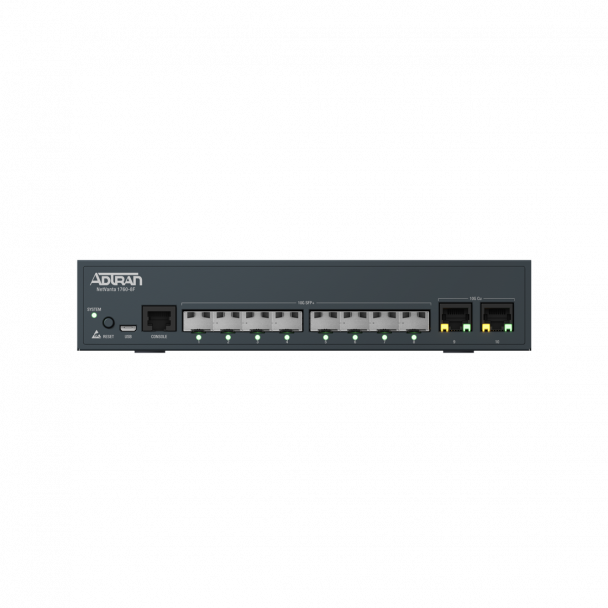

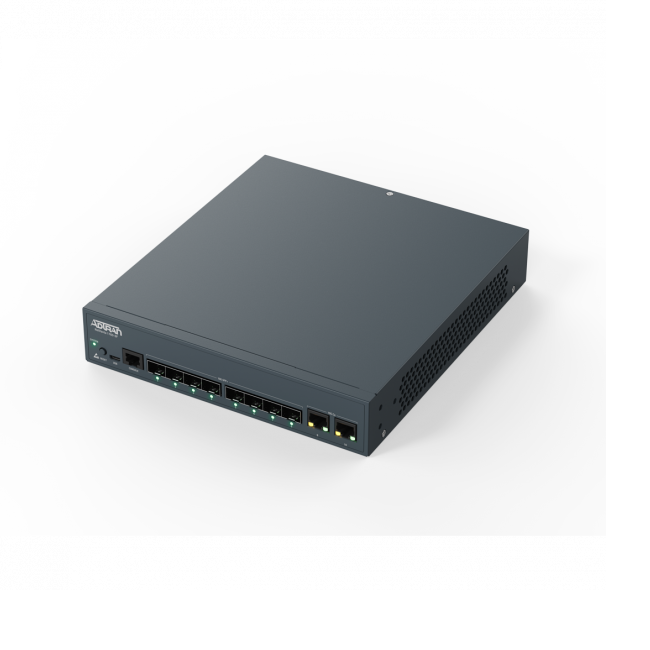

NetVanta 1760-8F 8-port, 10 Gigabit, Fiber Aggregation Switch
The Adtran NetVanta 1760-8F is an enterprise-class, fully managed, Layer 3, multi-Gigabit aggregation/access switch delivering high performance for today\u2019s most bandwidth-intensive applications. The NetVanta 1760-8F includes eight multi-rate 10G SFP+ ports and two multi-rate RJ-45 10G ports.
Features:
- 8 - 10G SFP+ ports
- 2 - 25G SFP28 ports
- RJ-45 console port and micro USB port for management
- Non-blocking Layer 2 and Layer 3 switching capacity up to 200 Gbps
- Fully managed
- Feature-rich Adtran Switching Engine for enterprise Ethernet switching
- Supports 802.1q VLANs and trunking, STP, and IGMP
- Supports ERPS for high-level redundancy and uptime protection
- Advanced smart switching features
- Port queue-level policing and shaping
Specifications
Specifications 17101762F1
| Ethernet Ports | ● NetVanta 1760-8F: z 8 – Multi-rate SFP+ Ports (100M/1G/2.5G/5G/10G) z 2 – Multi-rate RJ-45 Ports (100M/1G/2.5G/5G/10G) |
| Console Port | ● RJ-45 ● Micro USB |
| Environment | ● Operating Temperature: 32° to 122°F (0° to 50°C) ● Storage Temperature: -40° to 158°F (-20° to 70°C) ● Relative Humidity: Up to 95%, Non-condensing |
| Physical and Power | ● NetVanta 1760-8F:t z Chassis: 1U Metal Enclosure z Mount: Desktop, Wall, and Rack z Dimensions: 1.73 in. x 8.66 in. x 9.56 in. (4.4 cm x 22 cm x 24.3 cm) (H x W x D) Weight: 4.4 lbs (2.0 Kg) z Voltage: 100-250 VAC, 50/60 Hz Max Power: 170 Watts |
| Agency Approvals | ● CB (IEC 62368-1) ● UL (UL 62368-1) ● FCC ● CE/EMC ● EN 300 386 |
| Warranty | ● Limited Lifetime Warranty |
