Alpha Wireless 3.4-3.8GHz, 4-Port, Beamwidth 360⁰, 8.5dBi, MET Tilt Antenna
- SKU: AW3672-M-F-G
- Manufacturer: Alpha Wireless
- Data Sheet: Download
Product Information
Alpha Wireless AW3672-M-F-G

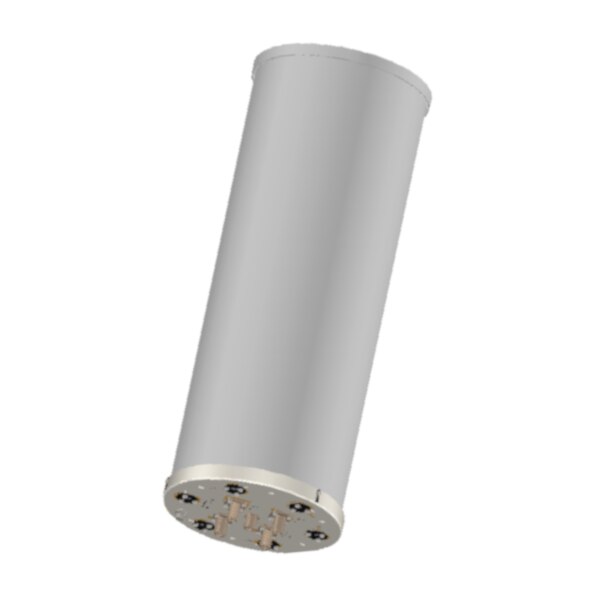

Alpha Wireless 3.4-3.8GHz, 4-Port, Beamwidth 360⁰, 8.5dBi, MET Tilt Antenna
This product offers patented 4x4 MIMO capability in a pseudo omni con6guration. In addition it offers independent tilt control on each of the six sectors across Bands 42/43 in a small form factor canister.
Alpha Wireless pseudo omni antenna provides 360⁰ coverage whilst in an ultra-compact Radome. This 4X4 MIMO Omni antenna enables improved Azimuth Pattern Control. The Radiation Pattern section on page 2 describes this in more detail.
The Variable Tilt feature of this Omni antenna enables the user to optimise the Elevation Beam for improved coverage and throughput.
This wide-band antenna was designed for urban environments where low visual impact is important. There are a number of mounting options available making deployments on lamp posts, utility poles, walls and other vertical structures possible.
Features:
- Wide-band antenna for 3GPP bands 42, 43 & 48.
- Optimized Pseudo omni with reduced azimuth ripple
- Independent RET control for each array (x6)
- Slim monopole design to reduce wind loading
- Integrated GPS
Specifications
Specifications AW3672-M-F-G
Frequency Range | 3400 - 3800MHz |
Polarisation | +/-45° Slant Linear |
Gain Basta | 8.0±0.5 |
Max | 8.5 dBi |
Azimuth Beamwidth | 360° |
Elevation Beamwidth | 11° |
Electrical Downtilt | T0⁰- T10⁰ |
Electrical Downtilt Deviation | < 1° |
Impedance | 50 Ohms |
VSWR | <1.5 |
Return Loss | 14 dB> |
Isolation | 25 dB> |
Passive Intermodulation | -150 dBc< |
Upper Sidelobe Suppression, Peak to 20º | 10 dB> |
Cross-Polar Discrimination | 7 dB> |
Maximum Effective Power Per Port | 50 W |
Dimensions | mm (in) 600 (23.6) x 220 (8.6) - (L x Ø) |
Packing Size (LxWxD) | mm (in) 680 (26.7) x 295 (11.6) x 445 (17.5) |
Net Weight (antenna) | kg (lb) 7.5 (16.5) |
Net Weight (mount) | kg (lb) 1 (2.2) |
Shipping Weight | kg (lb) 10(22) |
Connector Type (Female) | 4.3-10 |
Connector Quantity | 4 |
Connector Position | Bottom |
Windload Frontal (at Rated Wind Speed: 150km/h) | N (Ibf) 110 (25) |
Windload Lateral (at Rated Wind Speed: 150km/h) | N (Ibf) 110 (25) |
Survival Wind Speed | km/h (mph) 200 (125) |
Radome Material | UV-Stabilised PVC |
Radome Colour RAL | 7035 |
Product Compliance Environmental | RoHS |
Lightning Protection | DC Grounded |
Cold Temperature Survival | ºC (ºF) -40 (-40) |
Hot Temperature Survival | ºC (ºF) 70 (158) |
