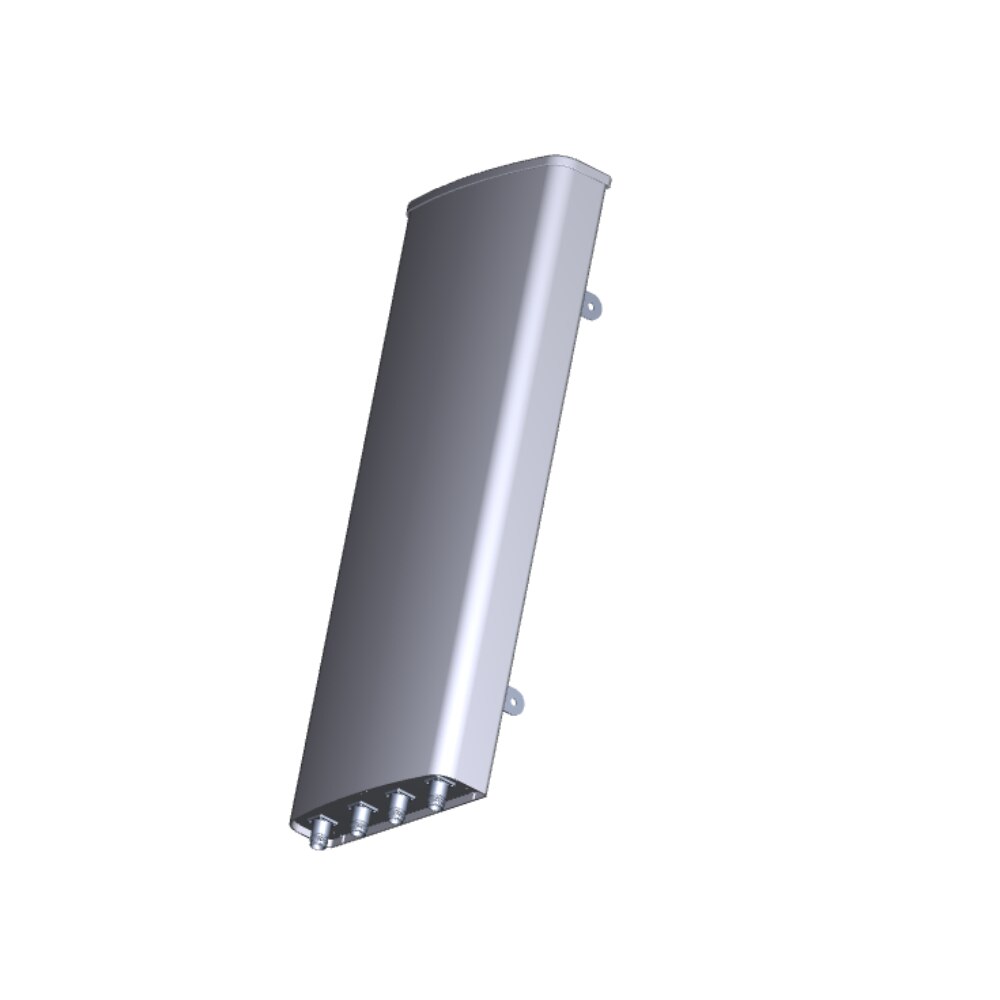

Alpha Wireless 3400 - 3800 MHz 4-Port 33⁰, RET Internally cascaded
US$1,549.00
- SKU: AW3711-E-F
- Manufacturer: Alpha Wireless
- Data Sheet: Download
Product Information
Alpha Wireless AW3711-E-F
3400 - 3800 MHz 4-Port 33⁰, RET Internally cascaded
PANEL antennas are the most commonly used solution for designing wireless networks. Alpha Wireless provides a wide array of solutions to meet the needs of the most intricate deployment requirements. This antenna has reduced Azimuth Sidelobes (<25dB) making it the ideal antenna for 6 sectored high capacity sites.
Features:
- 4×4 MIMO for maximum throughput.
- Azimuth Sidelobes suppression is <25dB – reducing cochannel interference from adjacent sectors.
- Narrow Azimuth beam to increase site capacity.
- Enhanced tilt range of 0 to 10 degrees.
Specifications
Specifications AW3711-E-F
| Electrical Specifications | |
| Frequency Range | 3400 - 3800 MHz |
| Polarisation | +/- 45⁰ Slant Linear Degree |
| Gain | |
| Min Tilt | 20.2 dBi |
| Mid Tilt | 20.1 dBi |
| Max Tilt | 20.0 dBi |
| Overall Tilts | 20.1 dBi |

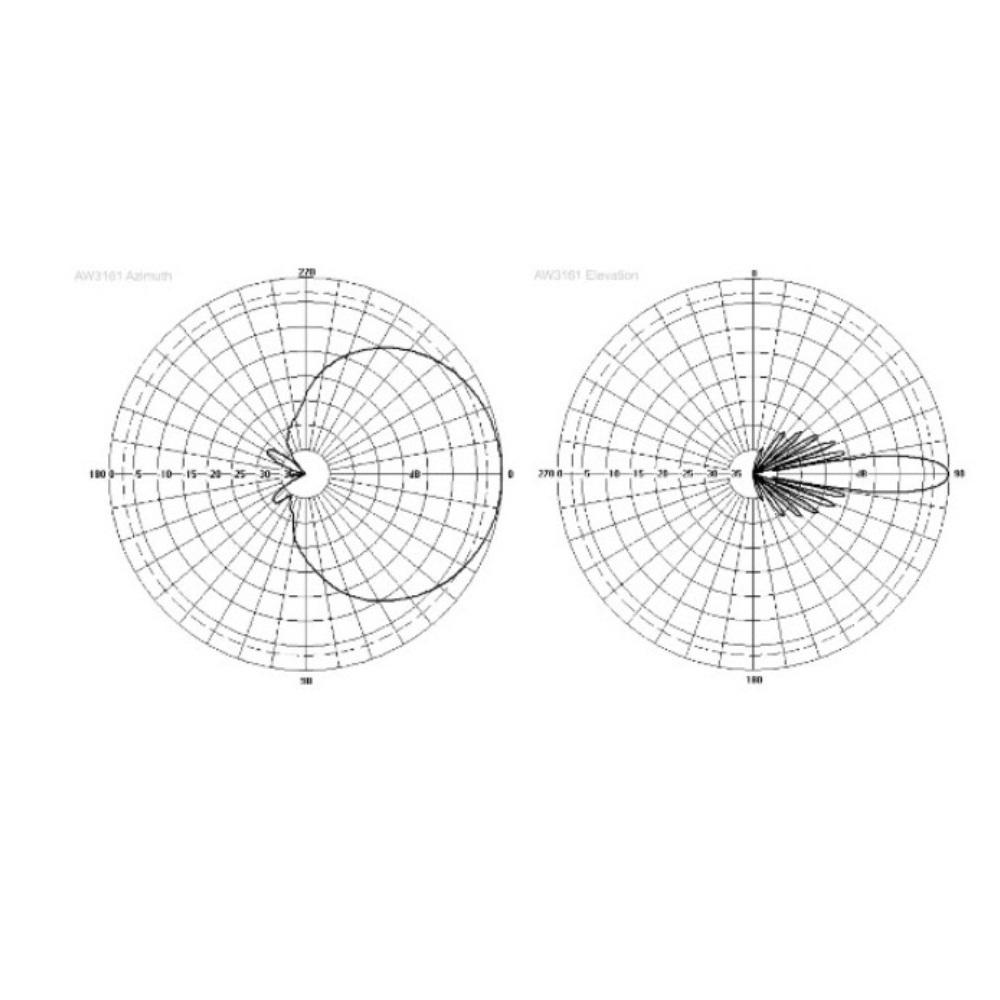

| Azimuth Beamwidth | 33⁰(+/- 3⁰) Degree |
| Azimuth Beam Squint | < 3⁰ Degree |
| Elevation Beamwidth | 6.5 (+/- 0.5⁰) Degree |
| Electrical Downtilt | T0⁰- T10⁰ Degree |
| Electrical Downtilt Deviation | <1⁰ Degree |
| Impedance | 50 Ohms |
| VSWR | < 1.43 |
| Return Loss | > 15 dB |
| Isolation | > 25 dB |
| Front to Back Ratio: Total Power +/-30° | > 30 dB |
| Upper Sidelobe Suppression, Peak to 20º | > 18 dB |
| Cross-Polar Discrimination | > 16 dB |
| Maximum Effective Power Per Port | 100W |
| Azimuth Sidelobes | < 25 |
| Mechanical Specifications | |
| Dimensions | 32.7" x 12.7" x 4.2" (LxWxD) |
| Weight | 27.8 lbs |
| Net Weight (antenna) | (lb) 9.5 (21) kg (lb) |
| Net Weight (mount) | (lb) 3.1 (6.8) kg (lb) |
| Connector Type (Female) | 4.3-10 |
| Connector Quantity | 4 |
| Connector Position | Bottom |
| Windload Frontal (at Rated Wind Speed: 150km/h) | 278 (62) N (Ibf) |
| Windload Lateral (at Rated Wind Speed: 150km/h | 116 (26) N (Ibf) |
| Survival Wind Speed | 200 (125) km/h (mph) |
| Radome Material | UV-Stabilised PVC |
| Radome Colour | 7035 RAL |
| Product Compliance Environmental | RoHS |
| Lightening Protection | DC Grounded |
| Cold Temperature Survival | -40 (-40) ºC (ºF) |
| Hot Temperature Survival | 70 (158) ºC (ºF) |
