Product Information
AMIT Wireless IDG500-CC501
4G CBRS WAN Extender CAT12
Features:

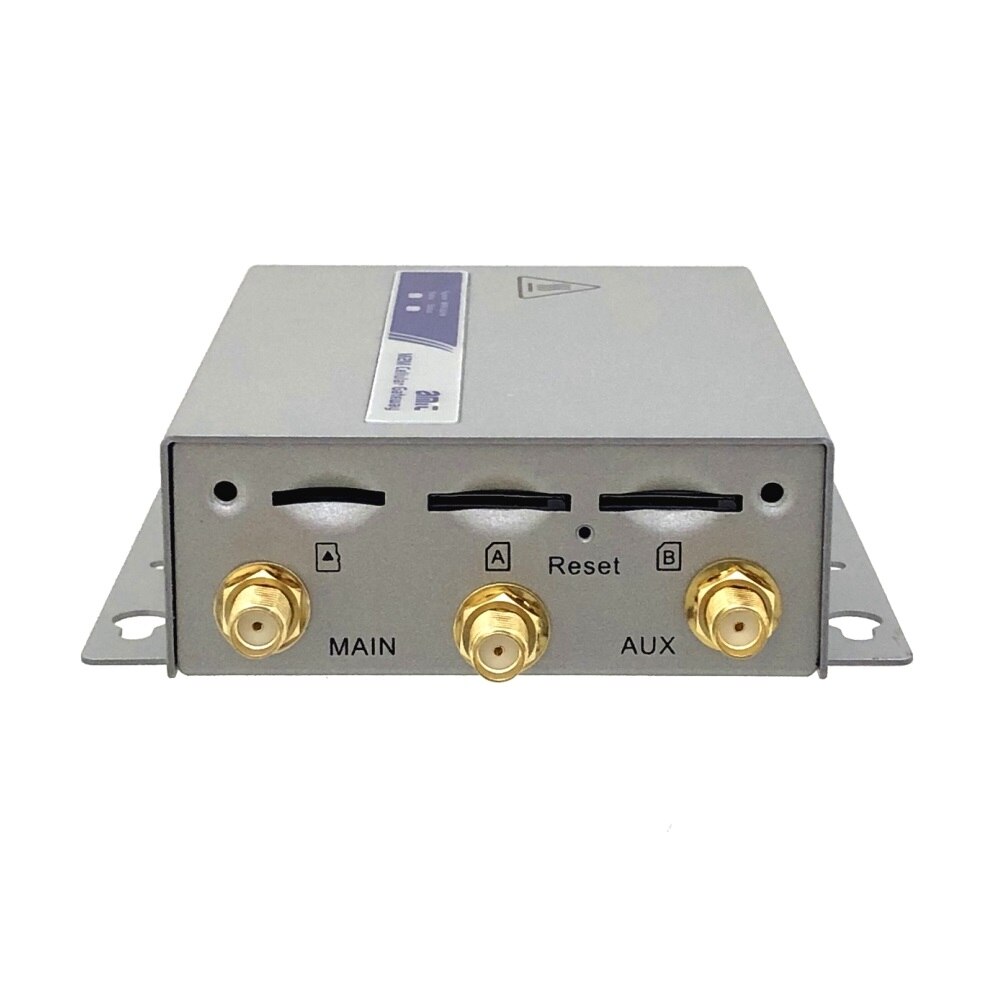

- Dual SIM CBRS LTE-A

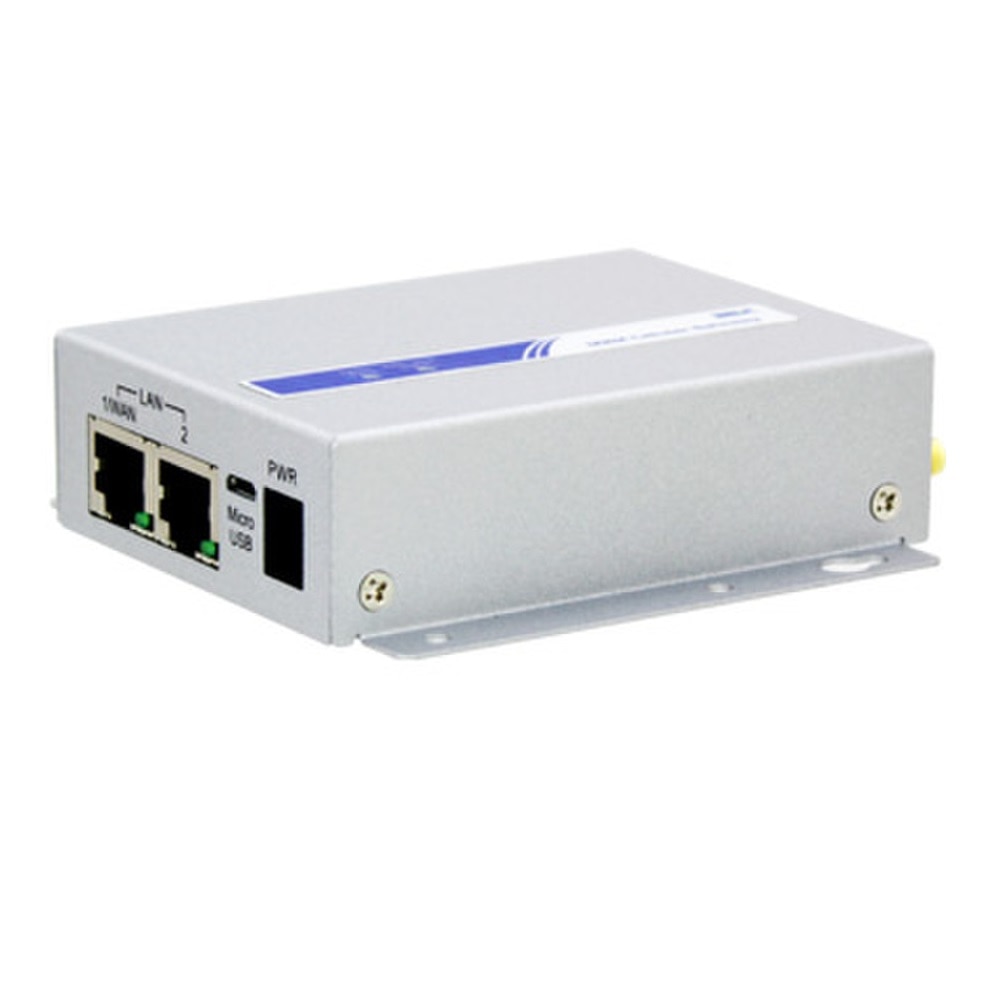

- 2*Gigabit Ethernet
- 1*Micro-USB , 1*micro SD
- GPS Location Trackting

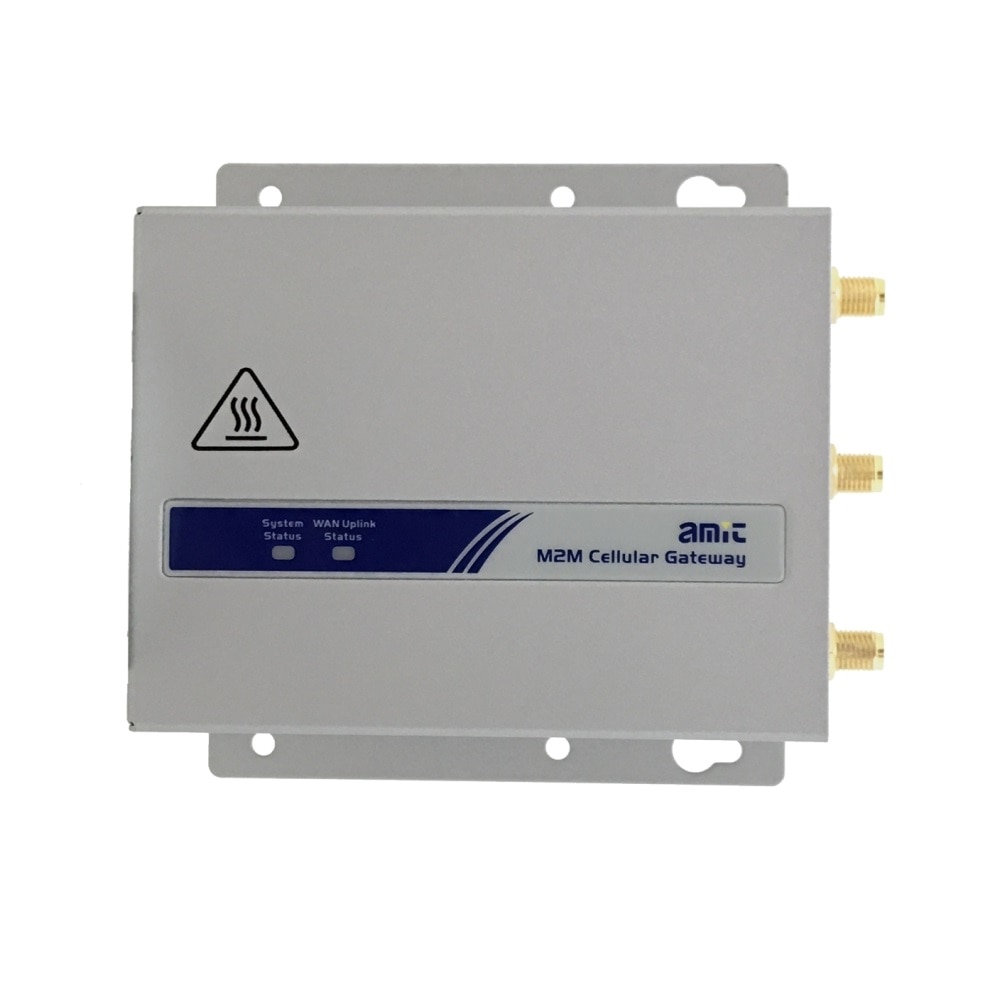

- Metal Housing, Wall Mount
- DC 5~18V, -30°C ~ 70°C
Product Functions:

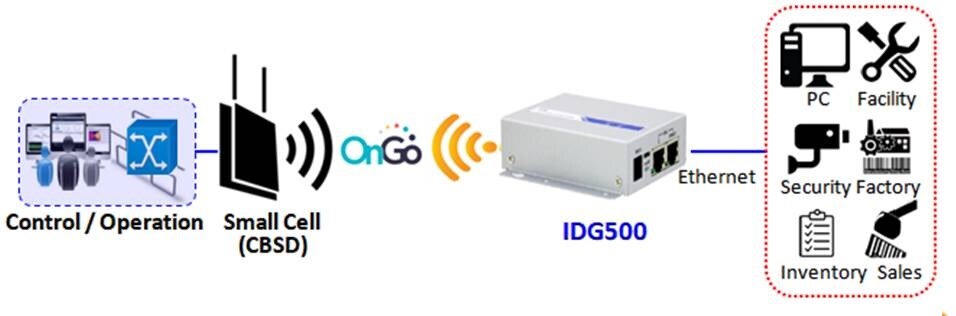

- Plug & Play, providing capability for existed Ethernet-based equipments to connect on CBRS OnGo network without any efforts.
- Expanding LTE-based WAN connection for various IP networks at instant, including enterprise, industrial IoT, manufacturing, and in-building networks.
- To be primarily or backup WAN for IP network connection. It can expand fail-over for network at single WAN between LTE and Ether-WAN. Dual SIMs allow to do connectivity fail-over between different networks or MNOs.
- Compact and easy to be integrated into solution. Equips high-speed Cat-12 LTE-A and two Gigabit Ethernet LAN. GPS enables location tracking. Micro-SD used for local storage. Micro-USB for future expansion.
- Support different VPN technologies which can build a VPN tunnel with remote site to provide a secure connection for data transmission.
- Both IPv4/IPv6 protocol stack meet ISP requirement. Gateway base on IP pass through or DHCP based NAT with Port Forwarding. Rich Routing function covers static, dynamic and OSPF compatible with most IP network.
- Web-UI for basic setting. CLI and Command Script for advance setting. TR-069 used with AMIT-NMS for multi-site management. SNMP used for popular network tools management. SDK used for application expansion development.
Application:
- Enterprise Private LTE
- In-Building Network
- Surveillance Network
- Industrial M2M/IoT
Specifications
Specifications IDG500-CC501
| Device Interface | |
| LTE Module | 1*Cat-12 LTE (600Mbps DL, 150Mbps UL), 2*SIM |

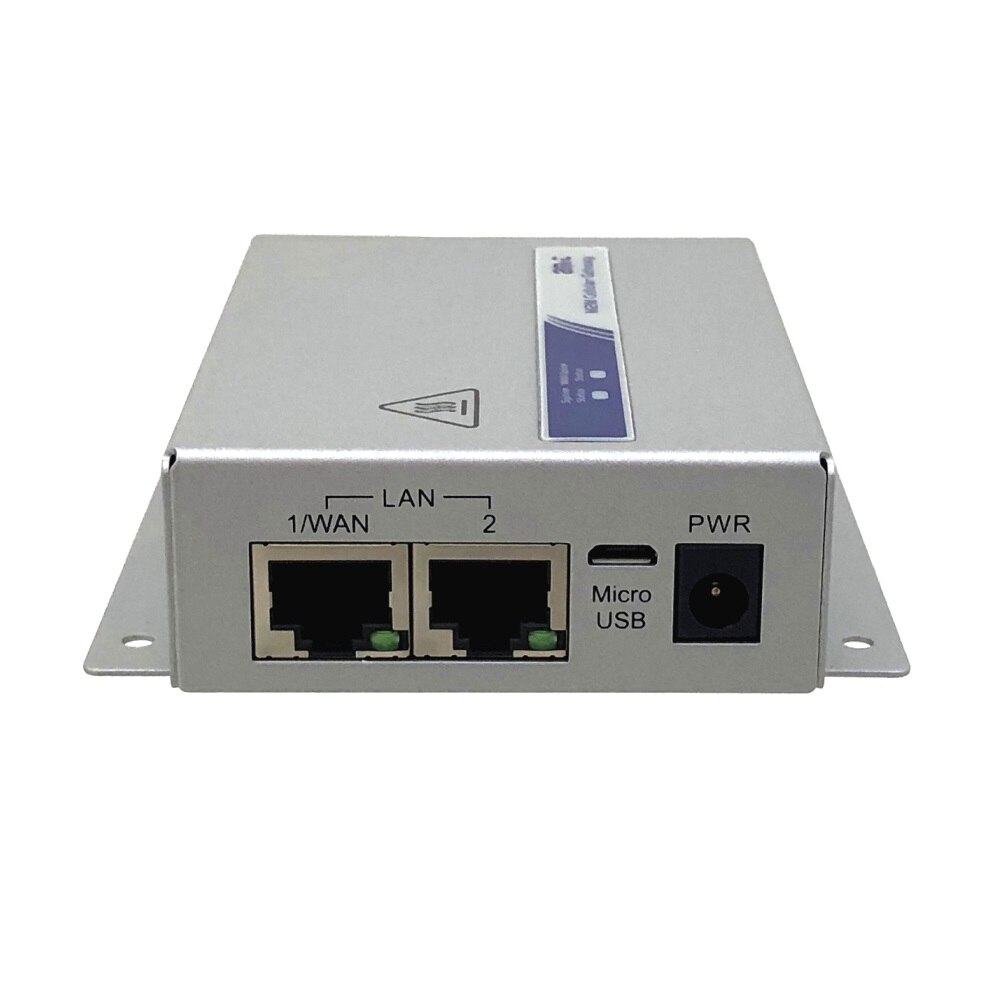

| Ethernet | 1(2)*RJ45 Gigabit Ethernet |
| Log Storage | 1*MicroSD, 1*MicroUSB |
| Power Input | 1* DC 5V ~ 18V (DC Jack) |

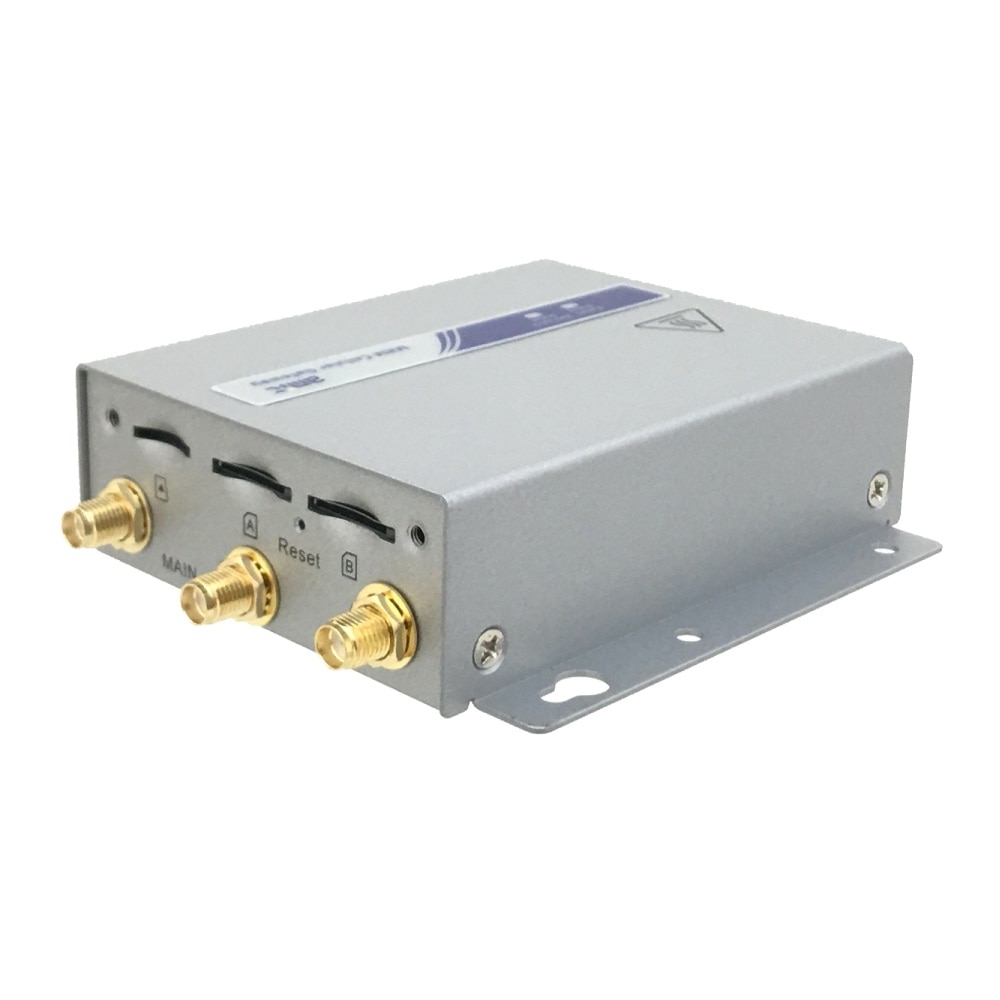

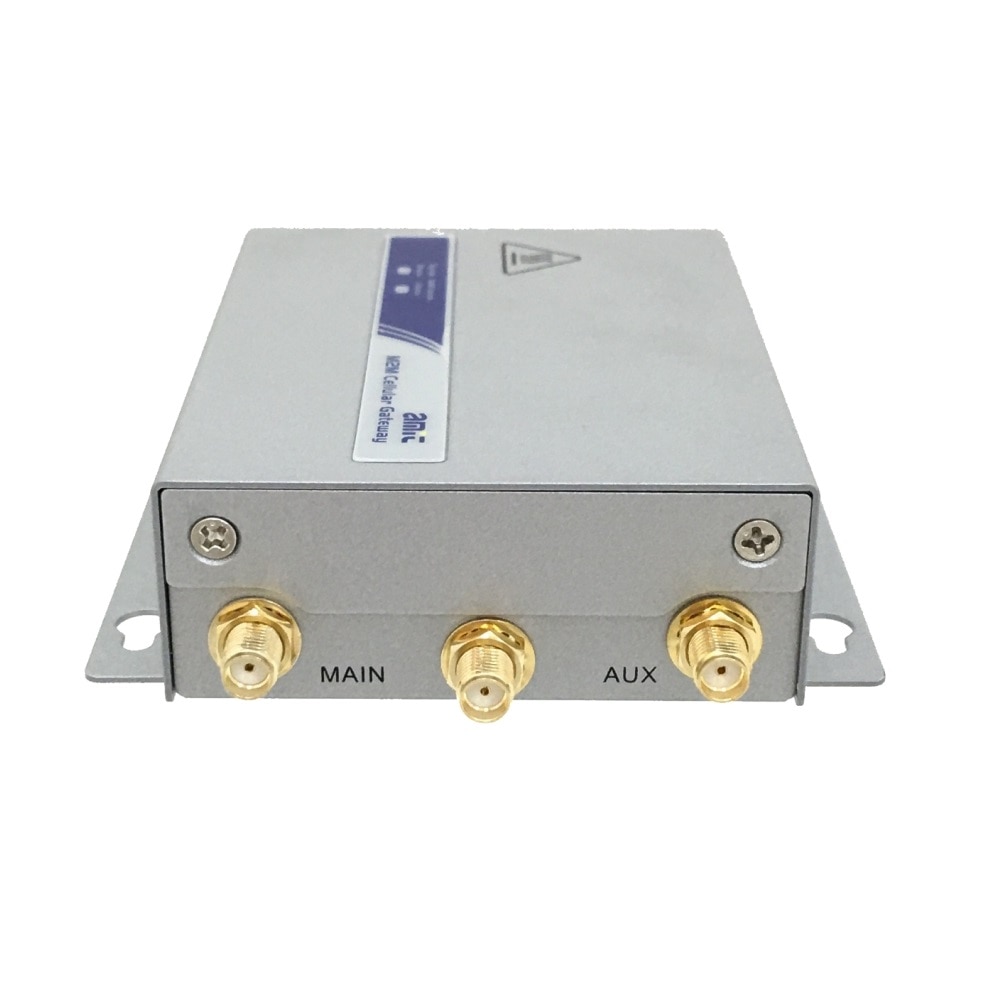

| Antenna Con. | 2*SMA (F)-LTE, 1* SMA(F)-GPS |
| WAN & Uplink | |
| WAN | CBRS LTE, Ether-WAN; Failover, |
| Cellular | CBRS LTE, IP Pass-through, IPv4/v6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE , PPTP, L2TP |
| Network Monitor | ICMP/DNS Query |
| Protocol | |
| LAN & VLAN | DHCP Server/Relay , Port/Tag based VLAN |
| IPv6* | Dual Stack, Static IPv6, DHCPv6, PPPoEv6 |
| Port Forward | Virtual Server, Virtual Computer, DMZ, VPN Pass-through |
| Routing | Static, Dynamic - RIP1/RIP2, OSPF, BGP |
| Object | |
| Scheduling | Time Schedule List |
| Grouping | Host Grouping List |
| Ext. Server | Email, Syslog, RADIUS, SCEP, FTP, DDNS, IGMP |
| Certificate | My Certificate, Trusted Certificate, Issue Certificate |
| Security | |
| VPN Tunneling | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Scenario | Site/Host to Site/Host; Dynamic VPN |
| Firewall | SPI Firewall with Stealth Mode, IPS |
| Access Control | Packet Filter, URL Blocking, MAC Filter |
| Administration | |
| Config & Mgmt. | Web, Telnet & SSH, Command Script, SNMPv3 Std. & Proprietary MIB , TR069 |
| System | Upgrade, Backup & Restore, Reboot & Reset, SysLog |
| Diagnostic | Packet Analyzer, Diagnostic Tools |
| Service | |
| Cellular Toolkit | Data Usage, SMS, SIM PIN, USSD, Network Scan |
| Event Handling | User Defined Manage/Notify Event; SMS, Mail, Syslog, SNMP Trap |
| GNSS* | GPS Location Tracking / Viewer |
| Environment | |
| OP/Store Temp. | -22°F-158°F (-30°C-70°C) |
| Storage Temp. | -40°F-185°F (-40°C-85°C) |
| Humidity | 10%~95% (non-condensing) |
| Enclosure | Metal, Mounting Tab |
| Dimension | 90(L)x93(W)x27(H)mm (exclude antenna connectors) 90(L)x101(W)x27(H)mm (include antenna connectors) |
| Weight | 1.4 lbs |
| Dimension | 8" x 6" x 3.5" inch |
| Certification | • FCC Part 15B • FCC Part 96 for CBRS • CBRS OnGo capable |
