Product Information

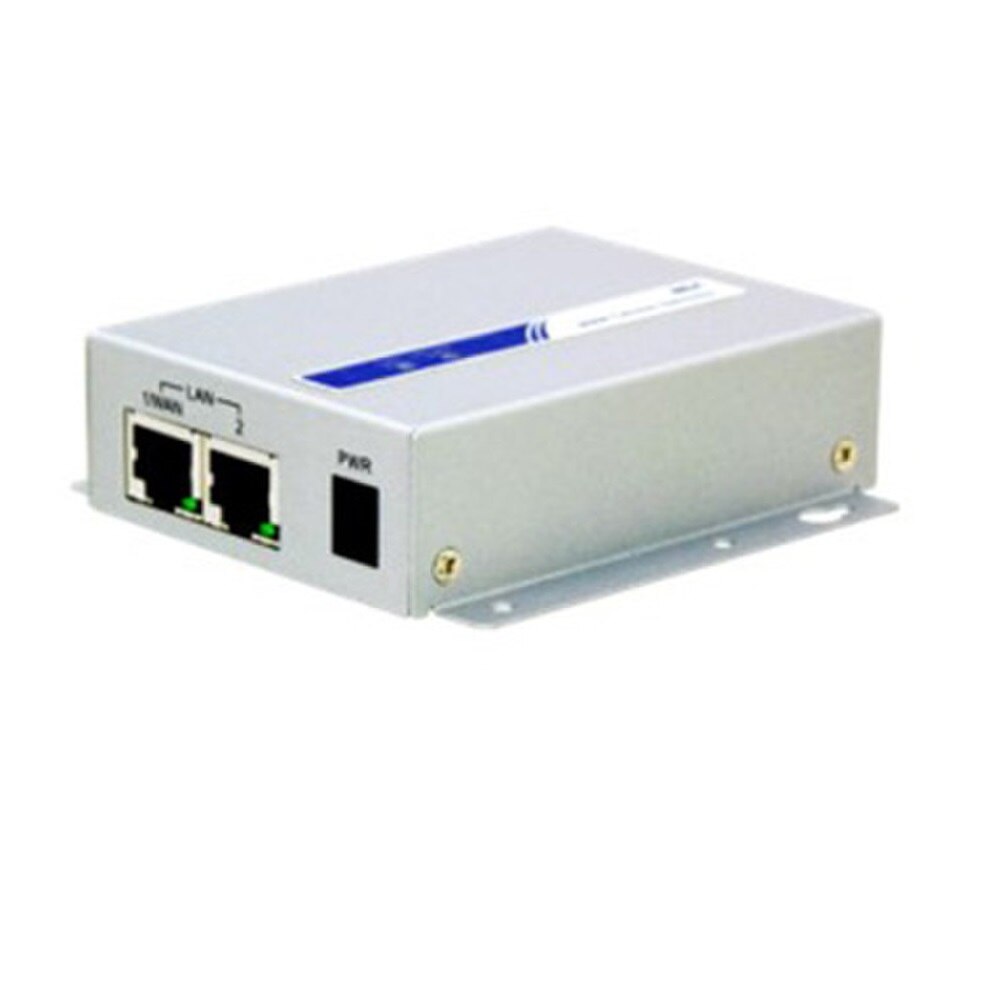

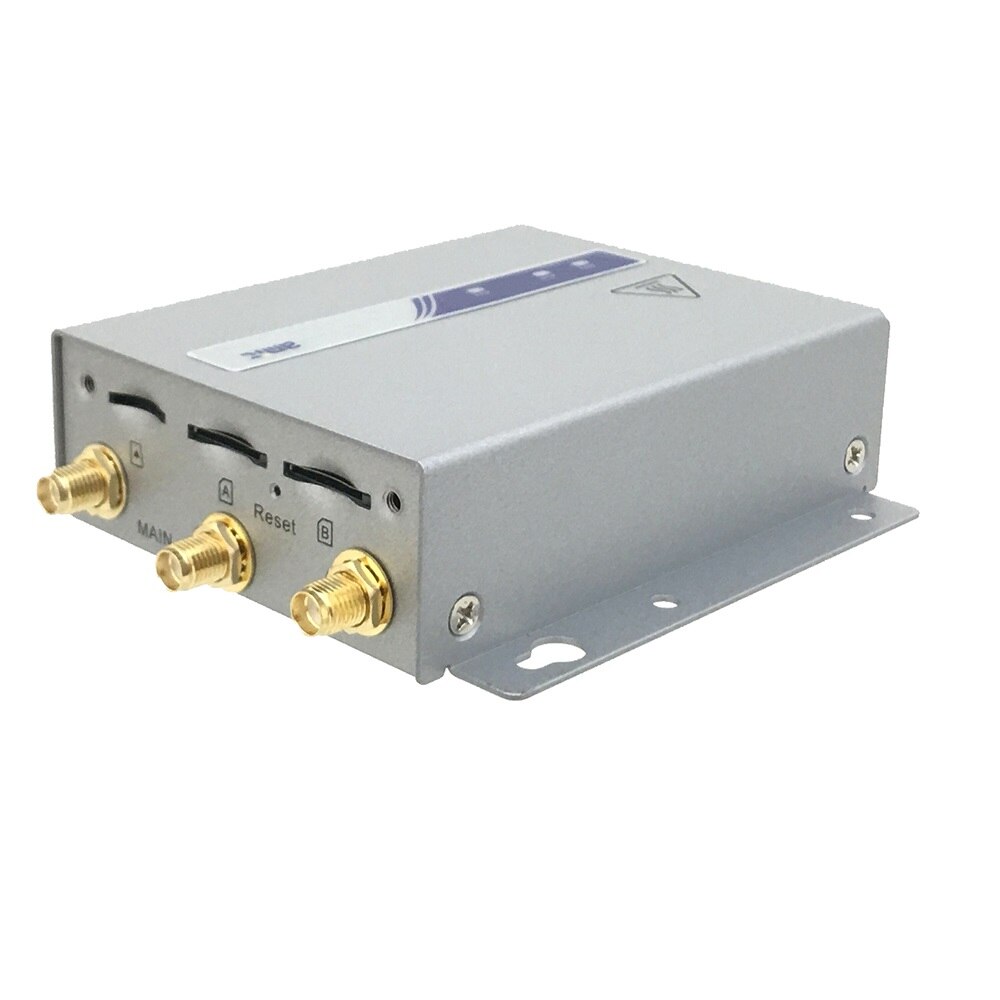

AMIT Wireless IDG500-C6012
4G CBRS WAN Extender CAT6

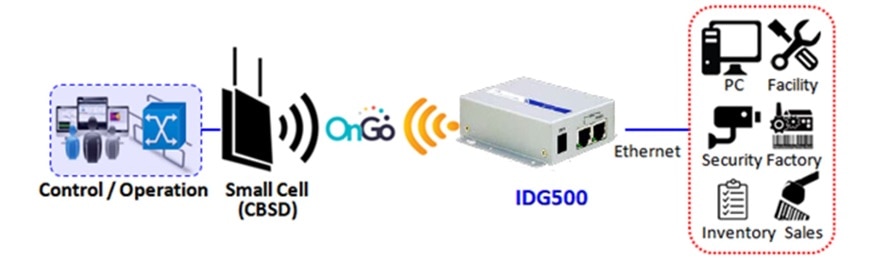

Plug & Play, providing capability for existing Ethernet-based equipment to connect effortlessly to a CBRS OnGo network.
Instantly create LTE-based WAN connection options for various IP networks, including enterprise, industrial IoT, manufacturing, and in-building networks.
Enable primary or backup WAN connection for IP networks. Expand network fail-over option at single WAN between LTE and Ether-WAN. Dual SIMs allow connectivity fail-over between different networks or MNOs.
Compact and easy solution integration. Provides high-speed Cat-6 LTE and two Ethernet LAN ports. Micro-SD option for local storage. The built-in 802.11n WiFi feature is an ideal solution to provide WiFi access to 5~10 WiFi clients at the same time.
Support for multiple VPN technologies enabling VPN tunnel with remote site providing a secure connection for data transmission.
IPv4/IPv6 protocol stack meeting ISP requirements. Gateway based on IP pass through or DHCP based NAT with Port Forwarding. Rich routing function covers static and dynamic options compatible with most IP networks.
Web-UI for basic settings. CLI and Command Script for advanced settings. TR-069 used with AMIT-NMS for multi-site management. SNMP option for popular network management tools.
Features:
- Dual SIM Cat-6 CBRS LTE
- 2* RJ45 Fast Ethernet
- 2.4GHz 802.11n WiFi
- 1*micro SD Slot

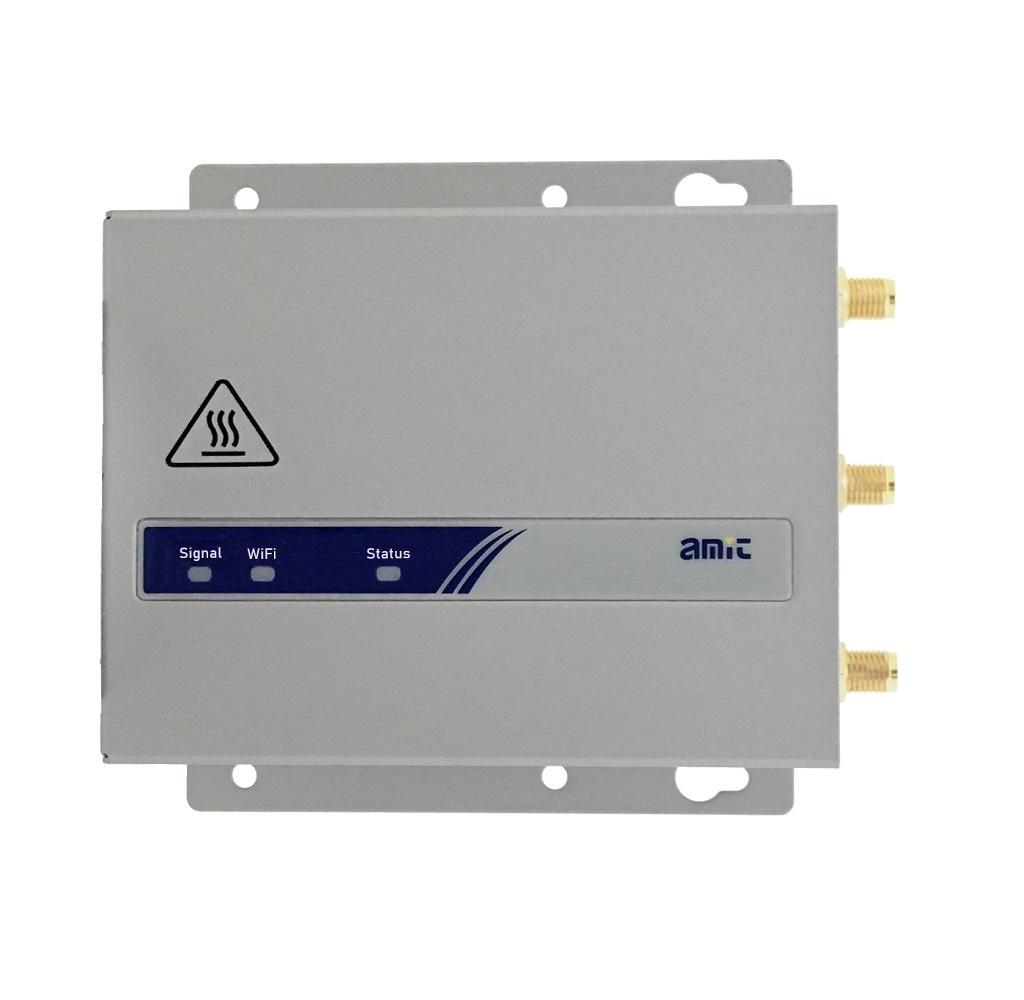

- Metal Housing, Wall Mount
- DC 5-18V, -30°C ~ 70°C
Application:
- Distance Learning
- Enterprise Private LTE
- In-Building Network
- Surveillance Network
- Industrial M2M/IoT
Specifications
Specifications IDG500-C6012
| Device Interface | |
| LTE Module | 1*Cat-6 LTE-TDD, 2*micro-SIM (3FF) |
| LTE Band | Band 42/43/48(CBRS) |

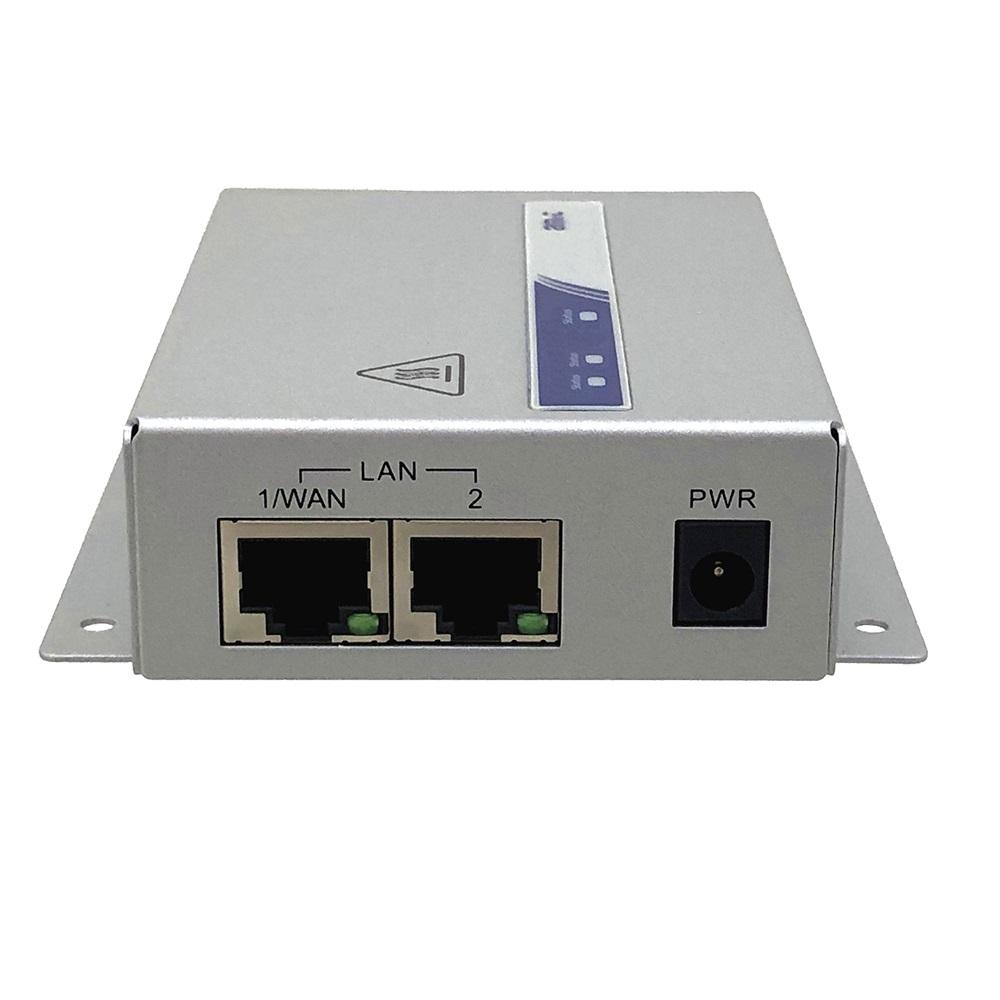

| Ethernet | 2*RJ45 Fast Ethernet |
| WiFi | 1Tx1R 2.4GHz 802.11b/g/n |
| Log Storage | 1*MicroSD |
| Power Input | 1* DC 5V ~ 18V (DC Jack) |

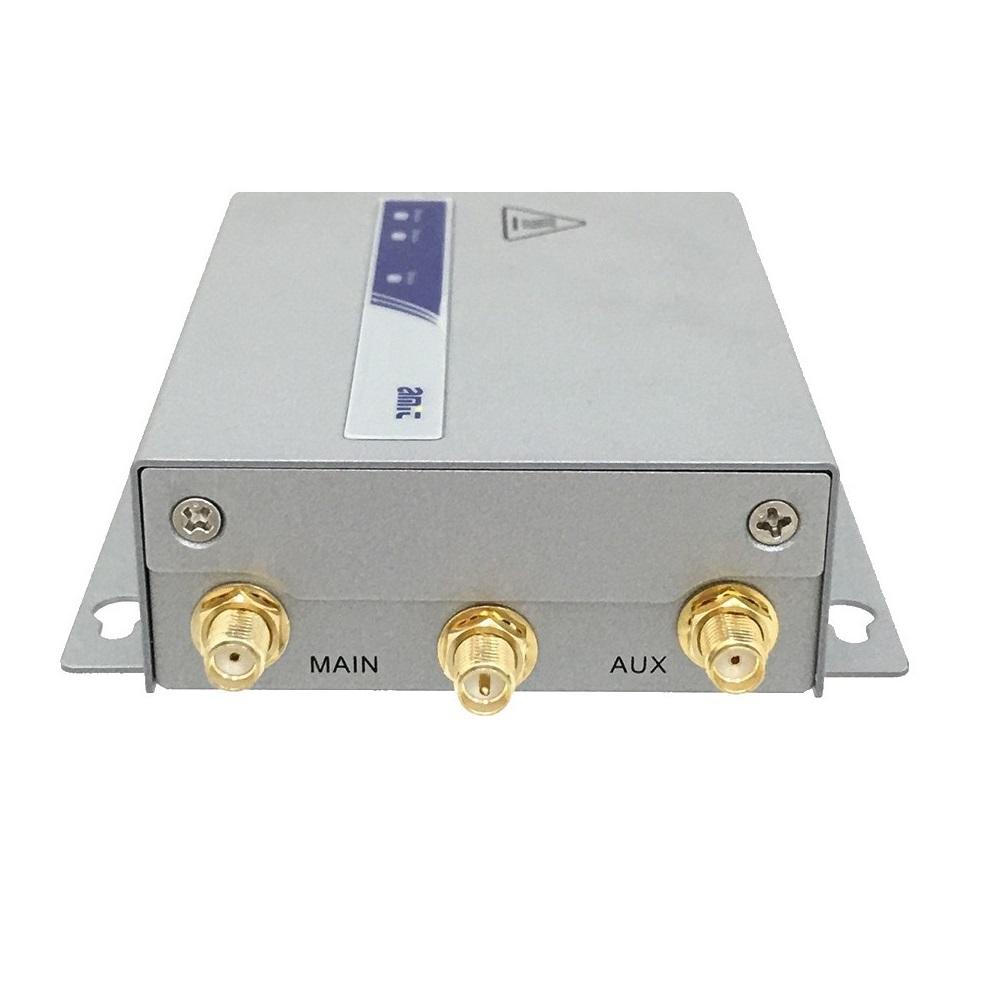

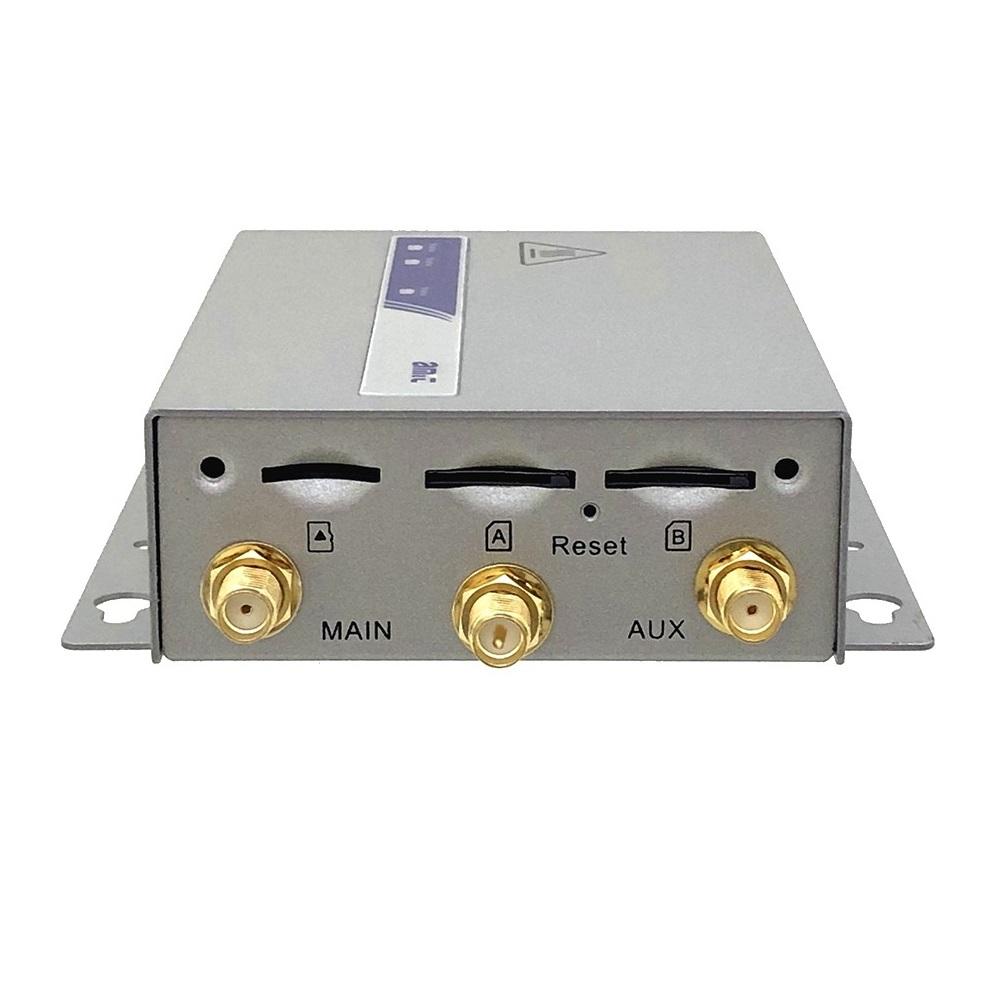

| Antenna Con. | 2*SMA (F)-LTE, 1* 2.4GHz WiFi |
| WAN & Uplink | |
| WAN | CBRS LTE, Ether-WAN; Failover, |
| Cellular | CBRS LTE, IP Pass-through, IPv4/v6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE , PPTP, L2TP |
| Network Monitor | ICMP/DNS Query |
| Protocol | |
| LAN & VLAN | DHCP Server/Relay , Port/Tag based VLAN |
| IPv6* | Dual Stack, Static IPv6, DHCPv6, PPPoEv6 |
| Port Forward | Virtual Server, Virtual Computer, DMZ, VPN Pass-through |
| Routing | Static, Dynamic - RIP1/RIP2 |
| Security | |
| VPN Tunneling | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Scenario | Site/Host to Site/Host; Hub and Spoke; Dynamic VPN |
| VPN Capability | Hardware crypto engine, IPSec: up to 3 tunnels |
| Firewall | SPI Firewall with Stealth Mode, IPS |
| Access Control | Packet Filter, URL Blocking, MAC Filter |
| Object | |
| Scheduling | Time Schedule List |
| Grouping | Host Grouping List |
| Ext. Server | Email, Syslog, RADIUS, SCEP, FTP, DDNS, IGMP |
| Certificate | My Certificate, Trusted Certificate, Issue Certificate |
| Administration | |
| Configuration & Mgmt. | Web, Telnet & SSH, Command Script, SNMPv3 Std. & Proprietary MIB , TR069 |
| System | Upgrade, Backup & Restore, Reboot & Reset, SysLog |
| Diagnostic | Packet Analyzer, Diagnostic Tools |
| Service | |
| Cellular Toolkit | Data Usage, SIM PIN, USSD, Network Scan |
| Event Handling | User Defined Manage/Notify Event; Mail, Syslog, SNMP Trap |
| Environment | |
| Operation Temperature | -22°F-158°F (-30°C-70°C) |
| Storage Temperature | -40°F-185°F (-40°C-85°C) |
| Humidity | 10%~95% (non-condensing) |
| Enclosure | Metal, Mounting Tab |
| Dimension | 90(L)x93(W)x27(H)mm (exclude antenna connectors) 90(L)x101(W)x27(H)mm (include antenna connectors) |
| Certification | • FCC Part 15B • FCC Part 96 for CBRS • CBRS OnGo capable |
| Weight | 1.4 lbs |
| Dimension | 8" x 6" x 3.5" inch |
