Arc Wireless Integrator Antenna 5.8GHz, 23dBi

(0)No Reviews yet
  • SKU: ARC-IA5823B02
  • Manufacturer: Arc Wireless
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Arc Wireless ARC-IA5823B02

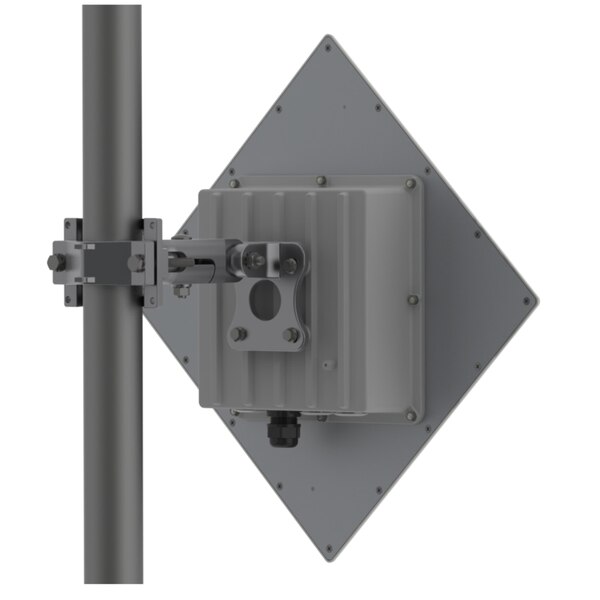

ARC Wireless ARC-IA5823B02 ARC Integrator Antenna 5.8GHz, 23dBi

ARC IESTM Panel Antenna 4.94-5.875 GHz 19dBi & 5.15-5.875 GHz 23dBi


  • Fits ARC IES™ Enclosure Solutions - Sold Separately
  • High gain, low cost circuit design
  • US Engineered
  • Manufactured under strict US quality control procedures
  • Low profile and rugged design for outdoor use
  • Custom Enclosures available


Specifications ARC-IA5823B02

Electrical Specifications

Frequency Range4.94-4.99GHz, 5.15-5.875 GHz
Gain (Typ)19dBi/23dBi
PolarizationSingle Linear – Vertical or Horizontal
3dB Beamwidth Vertical/ Horizontal10 degrees/ 10 degrees
VSWR≤1.5:1 typ, ≤1.7:1 max
Front-to-Back Ratio>40 dBi
Cross Polarization>30 dBi
Power Rating30 watts
Impedance50 ohms
Lightning ProtectionDC Ground
Connector TypeR/A SMA Jack

Physical/Environmental Specifications

Length x Width x Depth13.3 x 13.3 x 0.43in (33.8 x 33.8 x 1.1cm)
Weight2.02 lbs (0.92kg)
EnclosurePowder-coated die-cast aluminum, gray
RadomeUV stabilized ABS plastic, gray/td>
Wind Survivability125mph (201kph)
Wind Load1.23ft2 (0.12m2 )
Operating Temperature-49°F to 149°F (-45°C to 65°C)
Pole Mount Diameter0.75in to 3.0in (1.9cm to 7.6cm)
