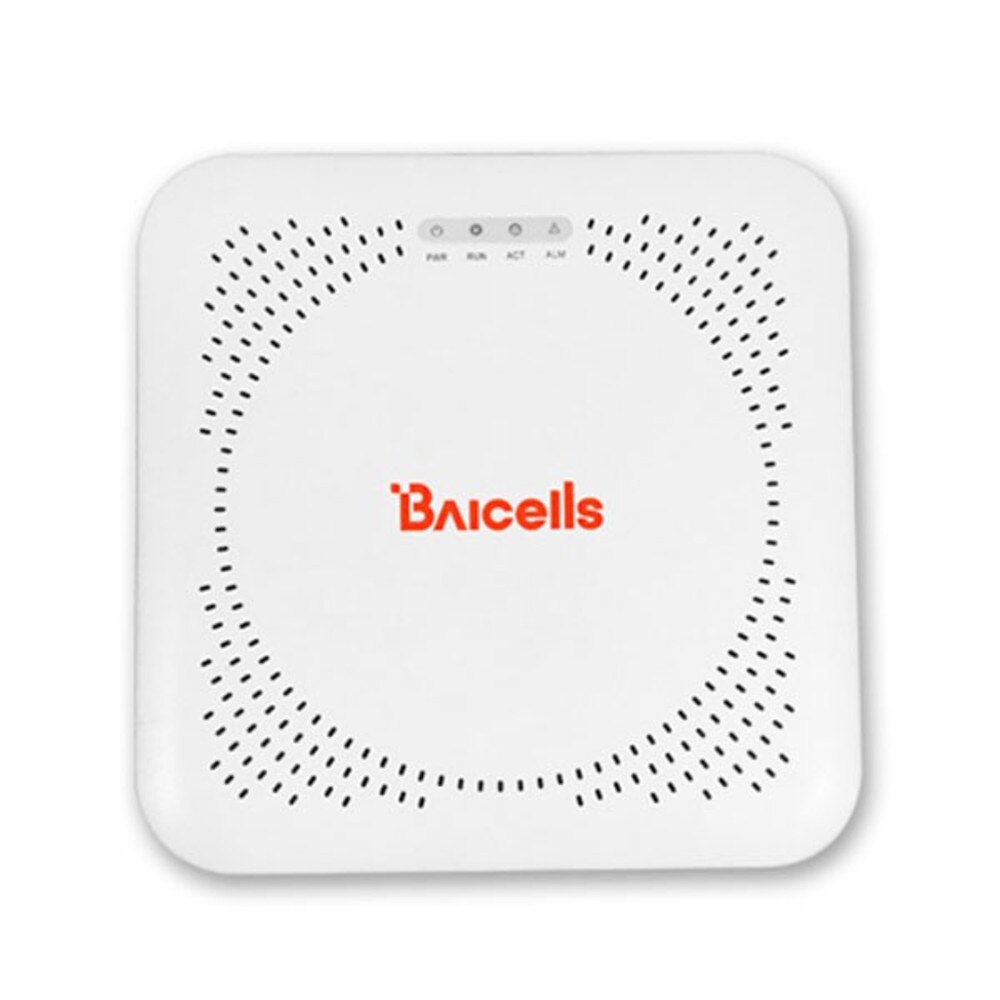

Baicells Neutrino430 Indoor TDD eNodeB
- SKU: pBS31010
Product Information
Baicells pBS31010
Neutrino430 Indoor TDD eNodeB
The Baicells Neutrino430 is an advanced two-carrier indoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250mW eNB can operate in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.
In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all Cat6/7 or higher user equipment.
In DC mode, each carrier is treated as an independent cell, supporting 96+96 users, with each supporting 5, 10, 15, or 20 MHz bandwidth. Using a Neutrino430 in DC mode simplifies and streamlines the deployment of split sectors. In addition to CA and DC mode options, HaloB (an embedded MME option) is available on the Neutrino430 as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB. This product comes with a standard product warranty; an extended warranty is available.
Features:
- Standard LTE TDD Bands 48 and partial 42, 43
- GUI-based local and remote web management
- Suitable for private and public deployments; any IP based backhaul can be used, including public transmission protected by Internet Protocol Security (IPSec)
- Built-in integrated antenna
- Excellent non-line-of-sight (NLOS) coverage
- Aggregate peak rate: (up to) DL 220 Mbps, UL 28 Mbps with 2x20 MHz, using all Cat6/7 or higher CPEs
- 96 concurrent users per carrier, 96+96 in DC mode
- Built-in 4-port omni antenna
- Integrated small cell form factor for quick and easy installation
- Configured out of the box to work with Baicells CloudCore.
- Supports HaloB operating mode
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with self-organizing network (SON) capabilities
- TR-069 network management interface support
- IoT with standard LTE Evolved Packet Core (EPC)
- Lower power consumption, which reduces OPEX
- Built-in DHCP server, DNS client, and NAT functionality, providing strong high-speed routing
Specifications
Specifications pBS31010
| HARDWARE | |
| LTE Mode | TDD |
| Frequency | Bands Band 48 and partial bands 42, 43 |
| Channel Bandwidth | 5/10/15/20 MHz per carrier |
| Max Output Power | 24 dBm/port |
| Power Supply | 12 VDC, POE ±48 V |
| Power Consumption | ~20 W (peak) |
| Receive Sensitivity | -100 dBm |
| Synchronization | GPS, Network Listening (NL), 1588v2 |

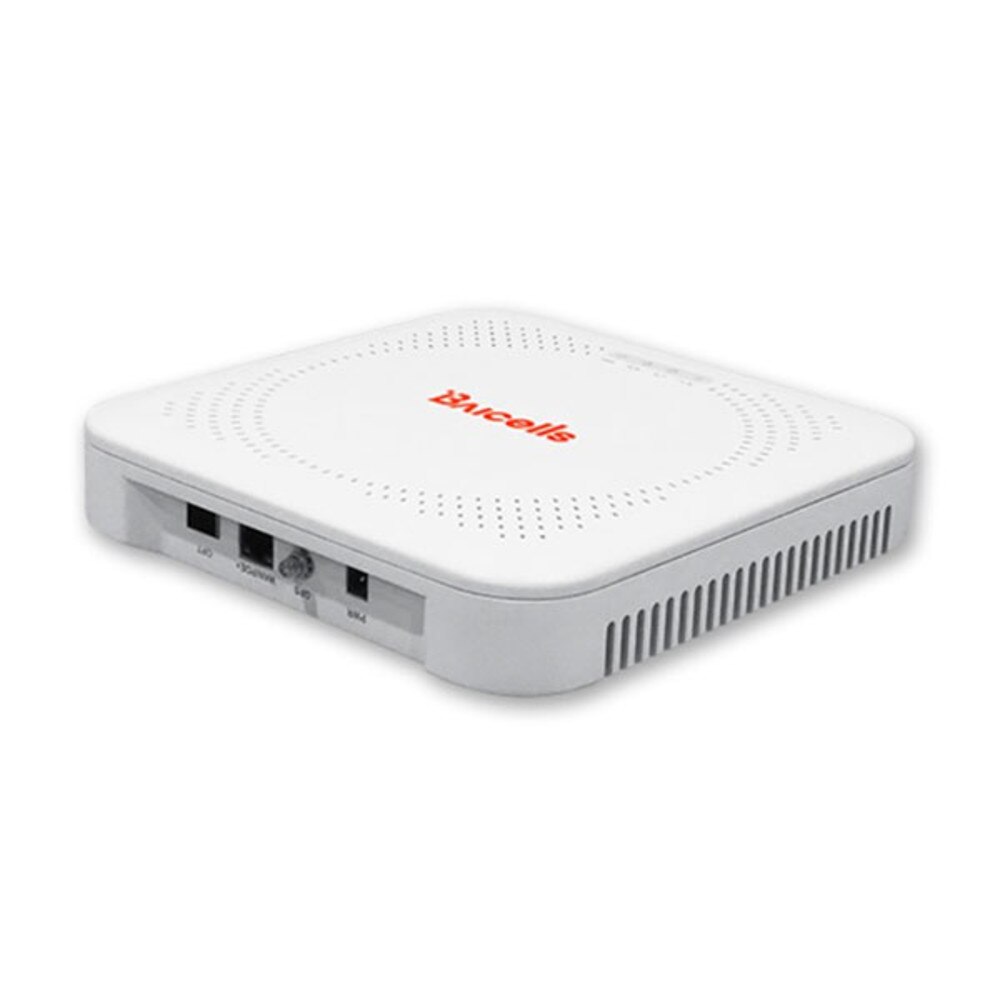

| Interfaces | 1 optical (SFP) and 1 RJ-45 Ethernet interface (1 GE) |
| MIMO | DL: 2x2 on each carrier |
| Installation | Ceiling or wall mount |
| Antenna | 4 dBi, built-in 4-port omni antenna |
| Antenna Gain | 4 ± 1 dBi |
| Dimensions (HxWxD) | 8.7 x 8.7 x 1.8 inches 220 x 220 x 45 millimeters |
| Weight | 3.52 lbs/1.6 kgs |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| SOFTWARE | |
| LTE Standard | 3GPP Release 15 |
| User Capacity | 96 concurrent users in single carrier mode 96+96 concurrent users in DC mode 96 concurrent users in CA mode |
| QoS Control | 3GPP standard Quality of Service Class Identifier (QCI) |
| Modulation | Self-organizing network: Automatic setup Automatic Neighbor Relation (ANR) PCI confliction detection |
| Traffic Offload | Local breakout |
| Voice | VoLTE (future software release) |
| SON | |
| RAN Sharing | Multi-Operator Core Network (MOCN) |
| Network Mgmt | TR-069 |
| Maintenance | Local/Remote Web maintenance Online status management Performance statistics Fault management Local/Remote software upgrade Logging Connectivity diagnosis Automatic start and configuration Alarm reporting KPI reporting User information tracing Signaling Trace |
| ENVIRONMENTAL | |
| Operating Temperature | 23°F to 113°F / -5°C to 45°C |
| Storage Temperature | 14°F to 122°F / -10°C to 50°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
