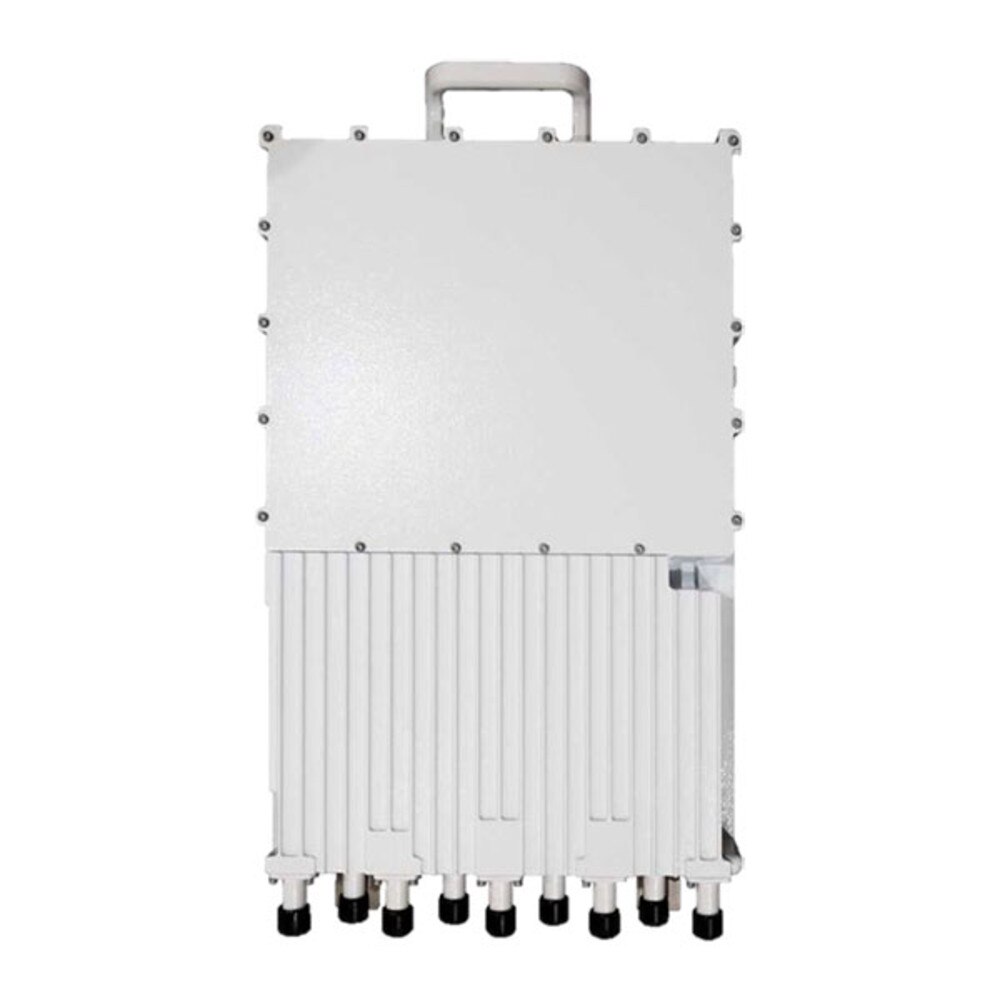

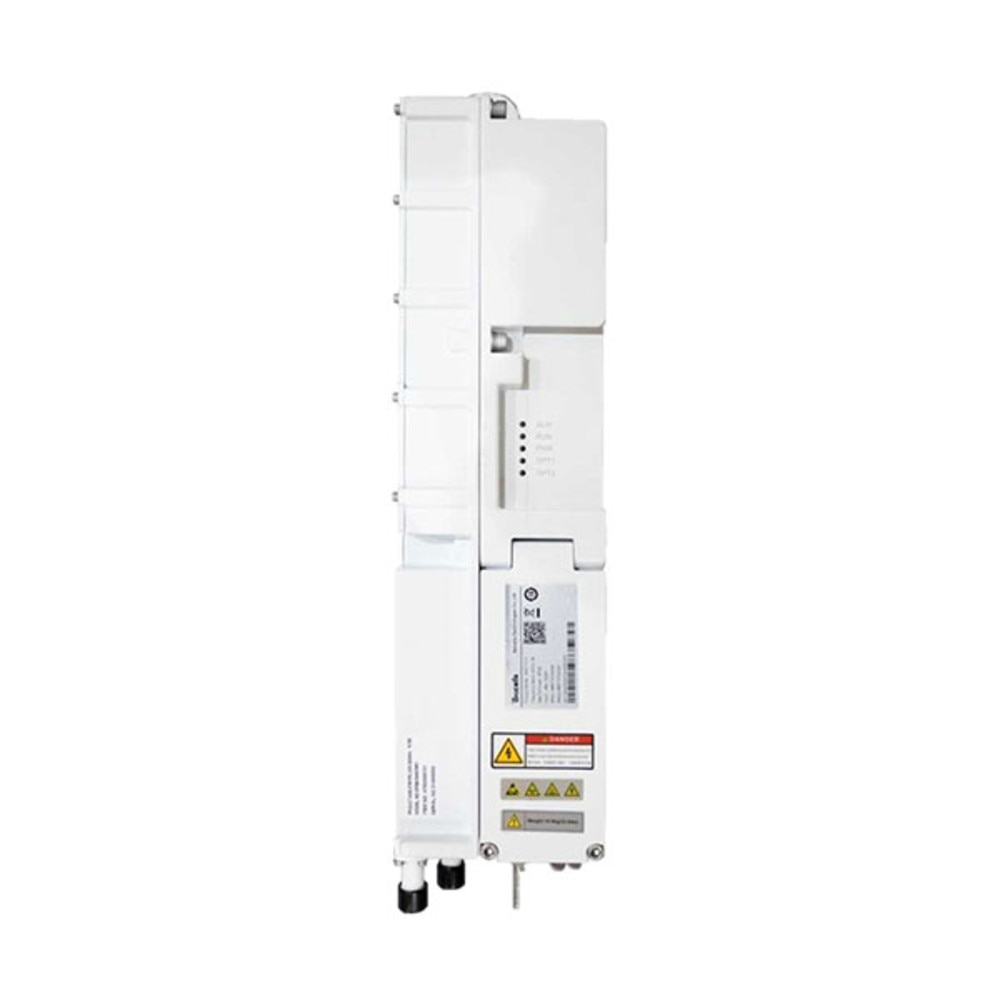

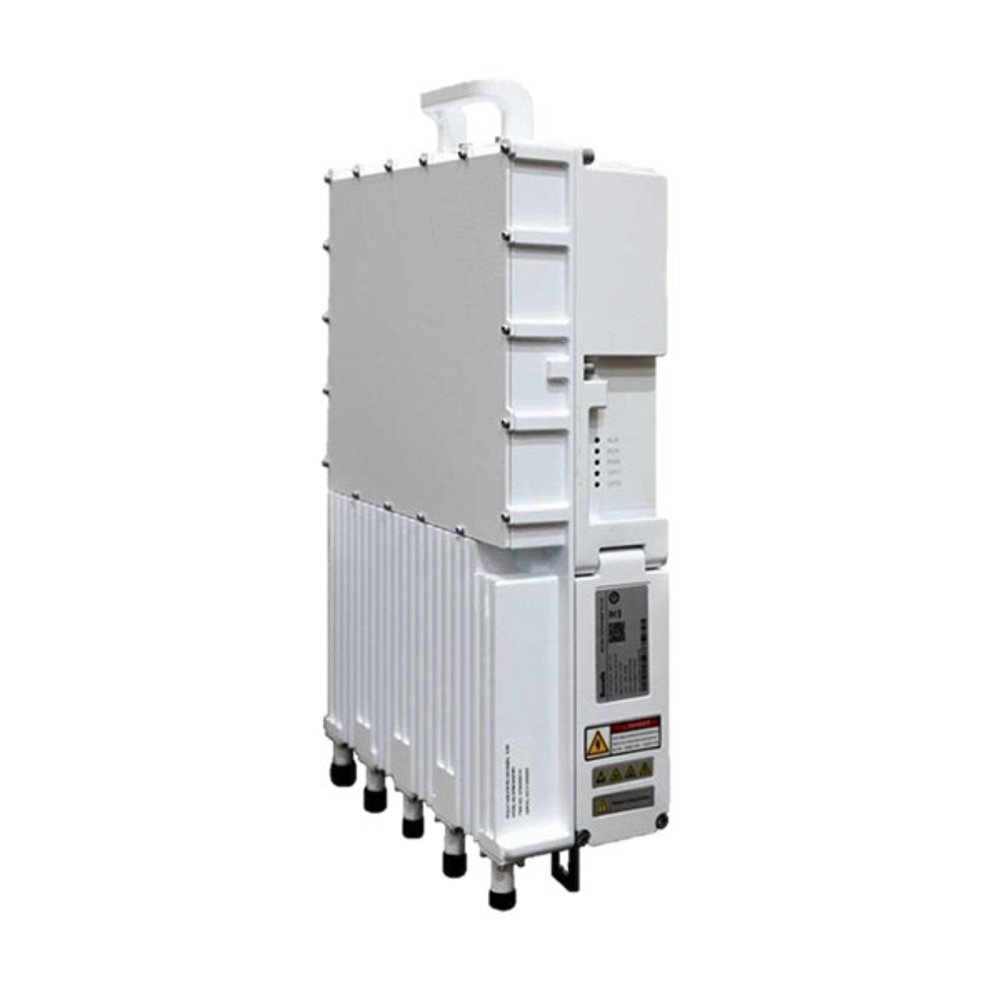

BaiCells Nova 846N 3.5GHz 5W Outdoor Base Station- LTE Release 15
- SKU: sBS71010
$8,499.00
Product Information
BaiCells sBS71010
Outdoor Base Station- LTE Release 15, 5 Watt (37 dBm), 8 Port, 3.5 GHz, Band 42/43/48, Single Carrier with HaloB
The Baicells Nova846 Outdoor TDD eNB is an advanced two-carrier outdoor eNodeB (eNB) that is compliant with 3GPP LTE TDD technology. This 8x5W eNB is capable of operating in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode. In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This essentially doubles the downlink capacity when the CA mode is used with all Cat6/7 user equipment.
In DC mode, each carrier is treated as an independent cell, supporting 128+128 users, and each supporting 20 MHz bandwidth. Using a Nova846 in DC mode simplifies and streamlines the deployment of split sectors.
Features:
- Standard LTE TDD Bands 41 and 48
- Compact design, easy to deploy
- Supports GPS synchronization
- 128+128 concurrent users, 256+256 RRC users
- Peak rate (up to): DL 440 Mbps with 4x4 MIMO Carrier Aggregation (CA) mode, UL 28 Mbps
- GUI-based local and remote Web management
- Highly secured with equipment certification against potential intrusion risk
- TR-069 network management interface support
- Embedded HaloB ("lite" EPC) solution
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with self-organizing network (SON) capabilities
- IoT with all standard LTE Evolved Packet Core (EPC)
- Lower power consumption, which reduces OPEX, can be powered easily by the Baicells compact outdoor SmartUPS EPB83521 and EPB93531 series
Specifications
Specifications sBS71010
| HARDWARE | |
| Air Interface | LTE |
| LTE Mode | TDD |
| Frequency Bands | Band 41, 48 |
| Channel Bandwidth | 5/10/15/20 MHz |
| Carrier Config. | Maximum 2 carriers |
| Max Output Power | 37 dBm / channel x 8 channel |
| MIMO | DL: 4x4 |
| Rx Sensitivity | -102 dBm |
| Synchronization | GPS |
| Data Interface | 1 optical GE or 1 electrical GE or 2 optical GE |
| LED Indicator | 5 x status LED: RUN/ACT/ALM/GE0/GE1 |
| Power Supply | -40.5 to 57 VDC, Nominal -48 VDC |
| Power Consumption | <=200 W |
| Installation | Pole or wall mount |
| Antenna Port Config | 2 x cluster antenna port (4T4R) |
| Antenna | External high-gain antenna |
| Dimensions (HxWxD) | 18.7 x 10 x 4.8 inches 475 x 254 x 123 millimeters |
| Volume | <=14.8 Liters |
| Weight | 17.6 lbs./8 kgs |
| Basic Report Function | RSSI, VSWR, TSSI (transmission signal strength), temperature, etc. |
| Cooling Method | Natural convection cooling @ vertical installation |
| Noise Figure | Room temperature: <2.5, All temperature: <3.5 |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| SOFTWARE | |
| LTE Standard | 3GPP Release 15 |
| User Capacity | 128+128 concurrent users, 256+256 RRC users Future software release 256+256 concurrent users, 512+512 RRC users |
| QoS Control | 3GPP standard QCI |
| Modulation | DL: QPSK, 16 QAM, 64 QAM, and future software release 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Voice | VoLTE, Circuit Switched Fallback (CSFB)* |
| Traffic Offload | Local breakout |
| SON | Self-organizing network: Automatic setup Automatic Neighbor Relation (ANR) PCI confliction detection |
| RAN Sharing | Multi-Operator Core Network (MOCN)* |
| HaloB | Supported |
| Network Mgmt | TR-069 |
| Maintenance | Remote/local maintenance Online status management Performance statistics * Fault management* Local or remote software upgrade Logging Connectivity diagnosis |
| ENVIRONMENTAL | |
| Operating Temperature (ambient) | -40°F to 131°F / -40°C to 55°C |
| Humidity | 2% to 95% |
| Ingress Protection Rating | IP66 |
| Salt Fog/Salt Spray | GR-487 |
| Seismic Specification | Telcordia GR-63-CORE, Section 4.4 Zone 4 |
| Wind Resistance | ETSI300019-1-4 |
| EMC | • ETSI EN 301 489-4 • ETSI EN 301 908-1 |
| sBS71010 | sBS71010 (TDD Outdoor eNB, band 48 (3550 MHz-3700 MHz), 8T8R, 8*5 W, 48 VDC, outdoor, external antenna, 1*RJ45+1*OPT) • FCC certification: TBD • IC certification: TBD |
