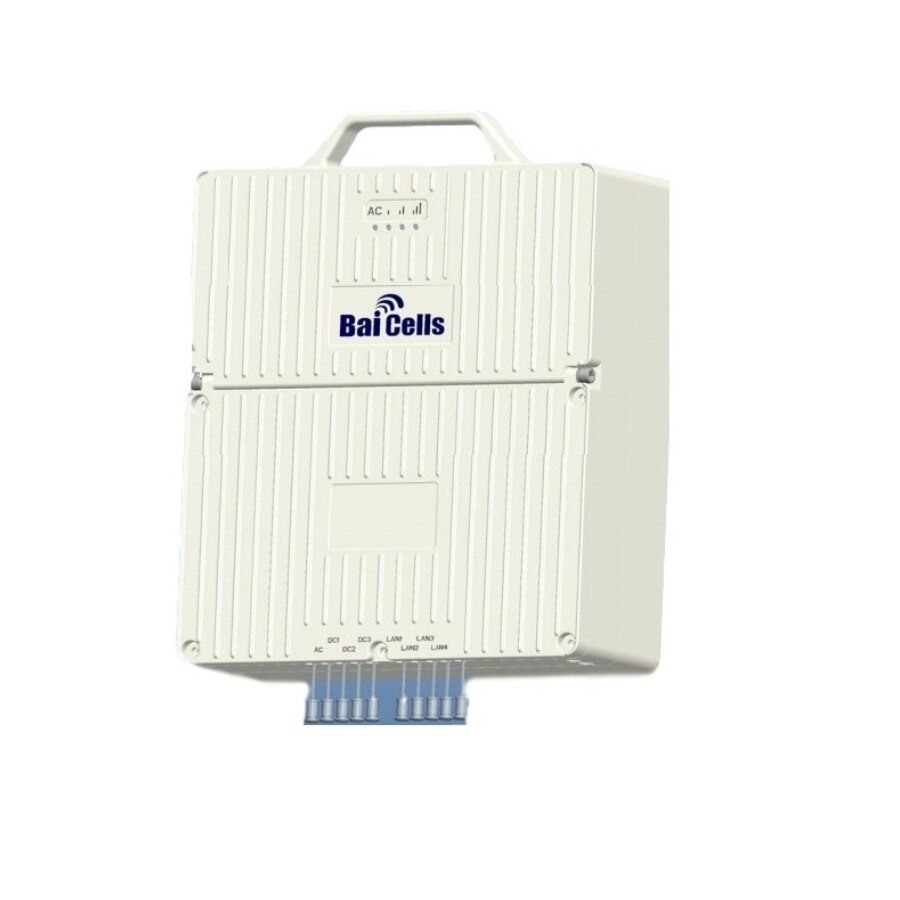

Baicells Outdoor SmartUPS, 200W, 5Ah, +48V DC output
- SKU: 1109000003
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
Baicells 1109000003
Outdoor SmartUPS, 200W, 5Ah, +48V DC output, Network Management Interface, POE+
Wireless Internet Service Providers (WISPs) and operators typically rely on electrical infrastructures to power their network equipment. During times of power outages, or in rural and remote locations where the reach of power is limited, operators need a reliable backup power source. The Baicells Smart Uninterruptible Power Supply (SmartUPS) is a comprehensive platform which converts AC to DC 48V, supports GigE speeds, and uses PoE+ power supply. It can power Baicells Long-Term Evolution (LTE) eNodeBs (eNBs) and other equipment such as cameras, meteorological monitoring, microwave, and security systems.
The unit is small and easy to deploy, and has a high protection grade rating of IP66. The SmartUPS is very cost-effective, especially when compared to traditional indoor and outdoor power cabinets.
Features:
- Up to 200 Watt power supply
- High IP66 ingress protection rating
- Intelligent battery / OMC management
- 3-year Lithium battery service life
- Supports optical solar input and gigabit optical interface (SFP)
- Supports multiple devices
- User-friendly LEDs and interfaces
- Multiple output power options: 48 VDC, PoE, or inverter supplied AC
Specifications
Specifications 1109000003
| Dimensions (HxWxD) | 10.6 x 4 x 12.6 inches 270 x 105 x 320 millimeters |
| Weight | 5Ah – 15.2 lbs / 6.9 kg 10Ah – 18.7 lbs / 8.5 kg |
| Cooling Mode | Natural cooling |
| Installation Mode | Pole or wall |
| Pole Diameter Support | 4-8.3 in / 105-210 mm |
| Noise Grade | ≤ 35 dB (A) @ 1.5 m Meets standard GR487 |
| Ingress Protection Rating | IP66 |
| Input Voltage | 110 VAC (90-264 VAC) |
| Battery Capacity | 5Ah or 10Ah Lithium Ion. Optional external battery for 48V 20Ah and 48V 50Ah. |
| Output Voltage | 37-54 VDC |
| Total Output | 200 Watts - 5 AMP 400 Watts - 10 AMP Future: 1kw - External customized battery |
| Switch | Max 4-port Gigabit Ethernet switch |
| SFP | 1 Gigabit SFP cage |
| PoE Port | 1 PoE+ |
| ENVIRONMENTAL SPEC | |
| Operating Temperature Range | -40°F to 159°F / -40°C to 55°C Solar radiation included |
| Storage Temperature Range | -4°F to 158°F -20°C to 70°C |
| Operating Humidity Range | 5%~95% RH No dewdrops |
| Altitude | 0-4000 m (2000m to 4000m. With every 200 m altitude increase, max operating temperature decreases 1°C.) |
