Baicells Nova Outdoor Base Station - LTE Release 9, 1 Watt (30 dBm), 2 Port, 3.5 GHz, Band 42/43

(0) No Reviews yet
  • SKU: mBS1105
  • Manufacturer: BaiCells
  • Data Sheet: Download
  • Availability: 10 In Stock (updated live)
$3,999.00

Specifications mBS1105

HARDWARE
LTE Mode FDD/TDD
Frequency Bands FDD: Bands 1/3/5/7/13/28A
TDD: Bands 38/39/40/41/42/43/48 and customized
Channel Bandwidth FDD Bands 1/3/7: 5/10/15/20 MHz
FDD Bands 5/13/28A: 5/10 MHz
TDD: 5/10/15/20 MHz
Max Output Power 30 dBm / antenna
Receive Sensitivity FDD Band 7: -100 dBm
FDD Bands 1/3: -101 dBm
FDD Bands 5/13/28A: -102 dBm
TDD Bands 42/43/48: -100 dBm
TDD Bands 38/39/40/41: -101 dBm
Synchronization Mode • Network listening (FDD only)
• GPS
• 1588v2 (TDD only)
Backhaul Mode One optical and one RJ-45 Ethernet interface (1 GE)
MIMO DL: 2*2
Interfaces 1 optical (SFP) port and 1 RJ-45 Ethernet Interface (1 GE)
Dimensions (HxWxD) FDD:
13.7 x 9.6 x 3 Inches
345 x 245 x 77 millimeters

TDD:
8.9 x 12 x 2.9 inches
227 x 305 x 74 millimeters
Installation Method AntennaPole or wall mount External high-gain antenna
Power Consumption FDD: < 70W
TDD: < 45W
Power Supply +/- 48V DC, AC adaptor (multi-national standards)
Weight FDD: 12.8 lbs (5.8 kg)
TDD: 9.7 lbs (4.4 kg)
SOFTWARE
LTE Standard 3GPP Release 9
Peak Rate FDD
20 MHz: DL 150 Mbps, UL 50 Mbps
10 MHz: DL 75 Mbps, UL 25 Mbps TDD

• 20 MHz:
SA1: DL 80 Mbps, UL 20 Mbps
SA2: DL 112 Mbps, UL 14 Mbps

• 10 MHz:
SA1: DL 40 Mbps, UL 14 Mbps
SA2: DL 55 Mbps, UL 7 Mbps
User Capacity Maximum 255 (FDD) and 96 (TDD) concurrent users
QoS Control 3GPP standard QCI
Modulation FDD UL: QPSK, 16QAM
FDD DL: QPSK, 16QAM, 64QAM

TDD UL: QPSK, 16QAM, 64QAM
TDD DL: QPSK, 16QAM, 64QAM
Voice Solution CSFB, VoLTE, eSRVCC
Traffic Offload Local IP Access (LIPA) Selected IP Traffic Offload (SIPTO)
SON Self-Organizing Network

• Automatic setup
• Automatic Neighbor Relation (ANR)
• PCI confliction detection
Spectrum Scanning (TDD) Supported
UL Interference Detection Supported
RAN Sharing Supported
Network Management Interface TR069 interface protocol
MTBF ≥ 150000 hours
MTTR ≤ 1 hour
Maintenance Remote/local maintenance Online status management Performance statistics Fault management Local or remote software upgrade Logging Connectivity diagnosis Automatic start and configuration Alarm reporting KPI recording User information tracing Signaling trace (TDD)
ENVIRONMENTAL
Operating Temperature -40°F to 131°F / -40°C to 55°C
Storage Temperature -49°F to 158°F / -45°C to 70°C
Humidity 5% to 95%
Atmospheric Pressure 70 kPa to 106 kPa
Ingress Protection Rating IP66
Power Interface Lightning Protection Differential mode: ±10 KA
Common mode: ±20 KA

Baicells mBS1105

Nova Outdoor Base Station - LTE Release 9, 1 Watt (30 dBm), 2 Port, 3.5 GHz, Band 42/43 Gen2

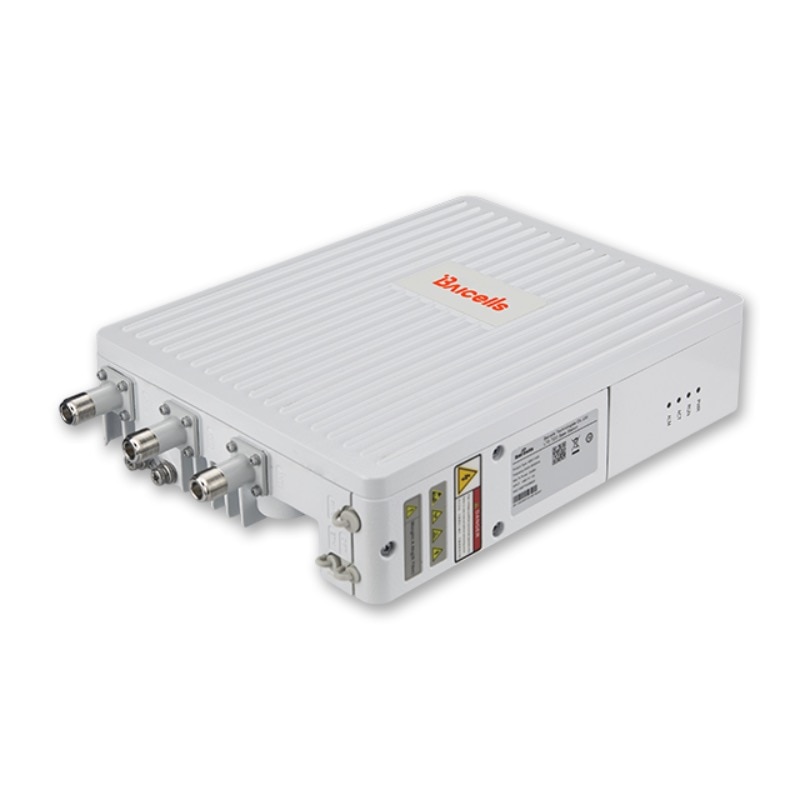

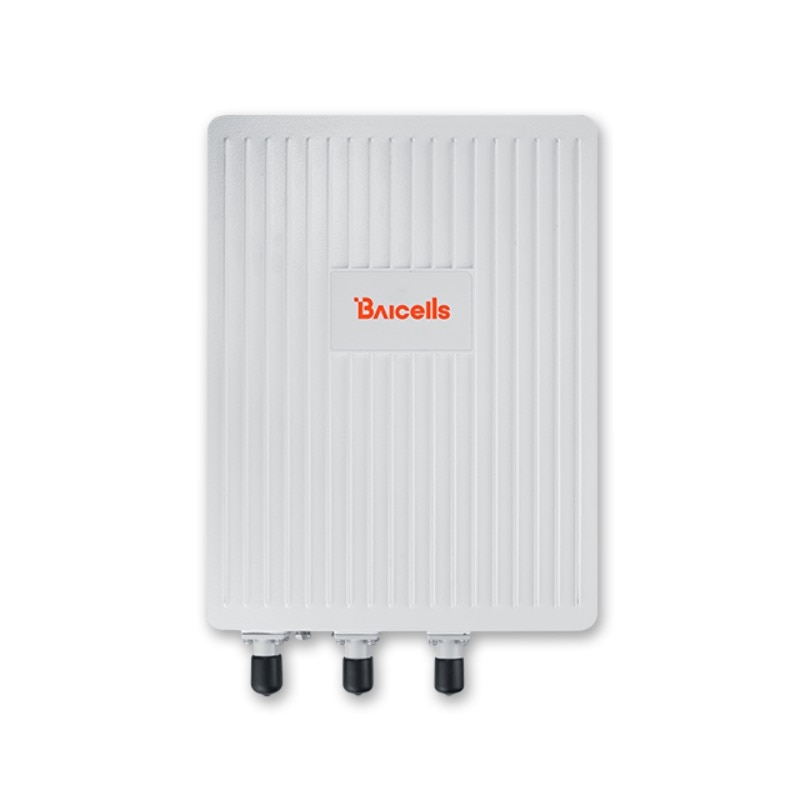

This Baicells Nova-233 generation 2 (G2) eNodeB is an outdoor LTE FDD/TDD base station with 2*1W output power (2x2 MIMO with 1W output each channel). The unit is compact, lightweight, and easy to deploy.

The second-generation Nova-233 incorporates a vast set of enhancements requested by customers, such as SFP, port rearrangement for easier weatherproofing, lower weight, and even improved mounting hardware.


Features:

  • Standard LTE network modes: - FDD bands 1/3/5/7/13/28A - TDD bands 38/39/40/41/42/43/48 and customized
  • Peak rate (20 MHz): - FDD: 150 Mbps DL, 50 Mbps UL - TDD: 112 Mbps DL, 20 Mbps UL
  • Max 255 (FDD) and 96 (TDD) concurrent users
  • Supports 5/10/15/20 MHz bandwidth operation
  • Super slim, beautiful design suitable for private and public deployments
  • Any IP based backhaul can be used, including public transmission
  • Lower power consumption to reduce OPEX
  • Plug-and-play with SON capabilities
  • IoT with most EPC vendors
  • Excellent NLOS coverage performance
