BlinQ FW-25-CPE, LTE B41, Standard Gain CAT12, Outdoor Rated
- SKU: FWC-122-25
$225.00
- Manufacturer: BlinQ
- Data Sheet: Download
Product Information

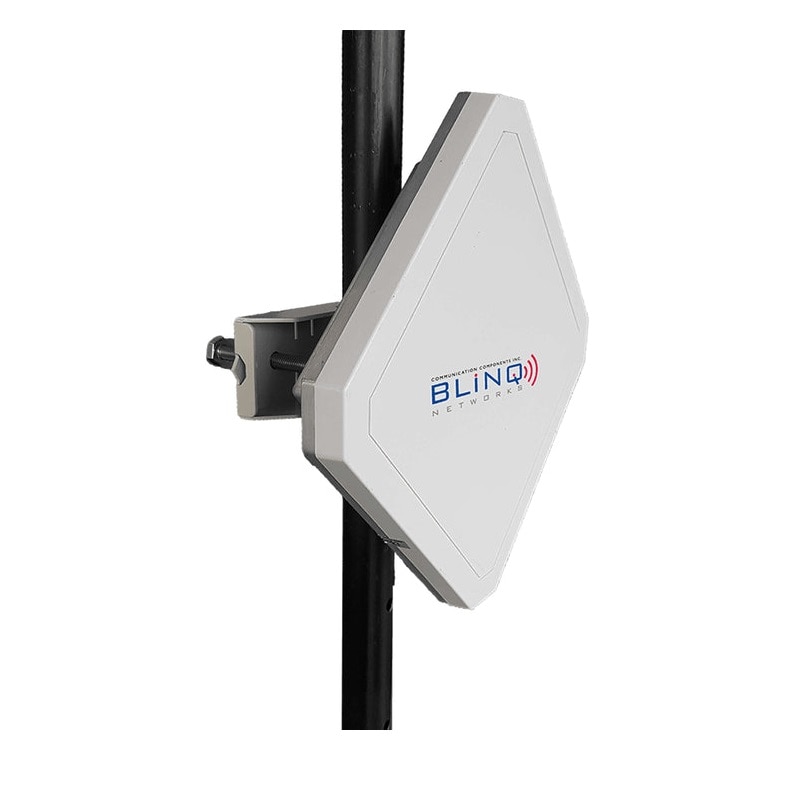

BlinQ FWC-122-25
FW-25-CPE, LTE B41, Standard Gain CAT12, Outdoor Rated
Supporting up to 80 MHz bandwidth with carrier aggregation and 256 QAM modulation in downlink, BLiNQ’s FWC-122-25 CPE provides a high capacity solution to meet the connectivity needs of a wide variety of users.
Its rugged housing, installation bracket and high IP67 rating also provides peace of mind for deployments in all kinds of tough outdoor environments.
Features:
- Supports TDD-LTE Band 41*
- 3GPP Release 12 Compliant
- Supports up to UE LTE Downlink Category 12/ Uplink Category 13 PHY Rate **
- Supports 4x4 MIMO with 40 MHz CA Maximum and DL 2x2 MIMO up to 80 MHz CA
- Supports DL 256QAM with DL 2x2 MIMO only (Contiguous and Non-Contiguous Bandwidth)
- Supports UL 2Tx (CDD / UL_CA/ UL_MIMO)
- Physical 2Tx & 4Rx in RF Front End
- Supports 1.8V and 3V SIM and USIM Card for LTE Mode
- Supports Dynamic Host Configuration Protocol
- Built-in Web Server for Web-Based Configuration
- Password Protected Access and Configuration
- Supports IEEE 802.3, IEEE 802.3u, 802.3ab (10/100/1000 Mbps )
- Supports 802.3at POE standard - Available on outdoor rated WAN port
- Supports NAT/Tunnel/Bridge/Router Mode
- Supports VPN Pass-Through
- IP67 Environmental Rating
Specifications
Specifications FWC-122-25
| Dimension (L x W x H) | 9.8” x 9.8” x 2.2” (250 x 250 x 55mm) |
| Weight | 3.5 lbs (1.6 kg) |
| PoE | 802.3at |
| Power | Input: Universal range 100~240V AC ; Output: 56 VDC |
| Reset/Reboot Button | Tactile Switch (inside box) |
| Operating Humidity | 5% to 95% |
| Storage Humidity | 5% to 95% |
| Operational Temperature | -40°F to 131°F (-40°C to 55°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| FCC | FCC Certified |
| Safety | IEC 60950-22:2016, IEC 62368-1:2014 compliant |
| RF Exposure | Meets 47 CFR FCC Part 2.1091 |
| NETWORKING & OAM | |
| LTE BB ASIC | GDM7243A (GCT Semiconductor) |
| LTE RF ASIC | GRF7243A (GCT Semiconductor) |
| Ethernet LAN Port | 1 x RJ-45 Port 10/100/1000 Auto-Sensing, Auto-MDX |
| LED Indicators | Signal Strength / LAN / SIM |
| SIM Function | 1.8V / 3V SIM and USIM card |
| PIN/PUK Code | Yes (Ready with chipset) |
| Stack | IPv4, IPv6, Dual |
| NAT/Dynamic NAT | Yes |
| Router Mode | Yes |
| Bridge Mode | Yes |
| Tunnel Mode | GRE, L2TP |
| DCHP Server in LAN | Yes (For NAT mode, support 253 clients max.) |
| DNS Relay | Yes |
| DDNS Client | Yes |
| VPN Pass-Through – IPSec/PPTP/L2TP | Yes |
| UPNP | Yes |
| HTTP(s) Server | Yes |
| ALG Support (FTP/SIP/…) | Yes |
| Networking Debug/Testing | IPerf, Ping, Traceroute |
| RADIO SPECIFICATION | |
| Frequency Band | TDD LTE Band 41 |
| Peak DL Throughput | 440 Mbps (4x4 + 40 MHz CA, TDD Config 2-7) |
| Peak UL Throughput | 30 Mbps (TDD Config 2-7 with 64 QAM) |
| Carrier Aggregation | 2CC up to 20 MHz each |
| DL Carrier Aggregation Bandwidth | 80 MHz max. |
| UL Carrier Aggregation Bandwidth | 40 MHz max. with 2CC |
| UL 2Tx Diversity | 26 dBm |
| UL 2Tx CA | 23 dBm |
| UL 2Tx MIMO | 23 dBm |
| Tx Power Dynamic Range | 63 dB |
| Receiver Sensitivity (@ 20 MHz) | -96 dBm |
| Channel Bandwidth | 10, 20 MHz |
| DL Carrier Aggregation Matrix | DL MIMO 2x2 – Intra, Contiguous & Non-Contiguous DL MIMO 4x4 – Intra Band Only |
| DL Modulation | 4x4 MIMO with 64 QAM Max. 2x2 MIMO with 256 QAM Max. |
| UL Modulation | Max. 64 QAM |
| LTE Compliance | 3GPP Release 12 |
| Antenna Peak Gain (Single) | 12.5 dBi (4 antennas) |
| DEVICE MANAGEMENT & SECURITY | |
| WEB | Yes |
| SNMP | Ready for IoT |
| TR-069 | Ready for IoT |
| FOTA Upgrade | Yes |
| System Log/Diagnostic | Yes (Chipset embedded tool) |
| Username/Password Configuration | Yes |
| L2/L3 Firewall | Basic Firewall/Port Forwarding/Port Trigger/DMZ/Remote WAN Ping/Remote Web Access Control |
| Time Zone Configuration | Yes |
| Dual Firmware | Yes (Switchable) |
| Firmware Verification | Yes (Use digital signal to verify installed software) |
