Primus Cable Shielded RJ45 Connector for CAT5E Ethernet Cable (100pcs)

(0) No Reviews yet
  • SKU: CN1-011-8C5SH-100
  • Manufacturer: Primus Cable
  • Availability: Open chat or call usEmail me when this product is in stock!
$45.00

Specifications CN1-011-8C5SH

Electrical Specifications
UL Applications: 250 Volts AC Max., At 2 AMPS
Dielectric with Standing Voltage:500 Volts AC
Insulation Resistance:100 M Ω
Termination:Resistance 20m Ω Max After Environmental Testing
Mechanical Specifications
Cable-to-Plug Tensile Strength:20 Pound Min.
Durability:200 Matting Cycles
Physical Characteristics
Housing:Polycarbonate, UL94V-0
Color:Transparent
Contact Blade:Copper Alloy
Conductor:Stranded & Solid Wire, 24 - 26 AWG (Plug Can Be Used For Wire OD’s of 0.96 - 1.02 mm)
Gold Plating:50µ”
Shielded Shell:Copper Alloy

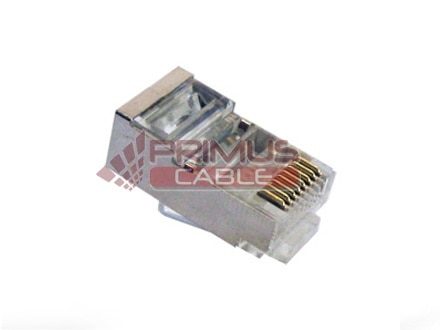

Shielded RJ45 Connector for CAT5E Ethernet Cable

We believe making great products is the key to building a great network. Our Shielded CAT5E RJ45 Connectors are made with high standards, keeping our customer and their network in mind. Even with something as small as an RJ45 connector, it must be made right and it must work right. These shielded RJ45 connectors work with solid and stranded cable with 8 pins (gold plated) and 8 conductors.
