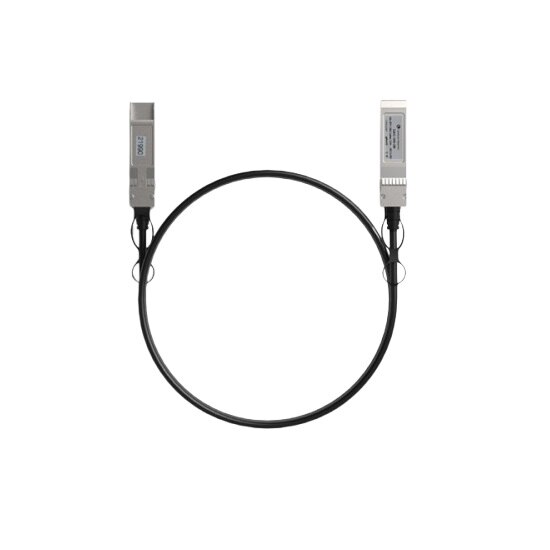

Cambium SFP+ Direct Attach Twinax Cable, Passive, 2m
- SKU: DAC-10G-2M-VP
$64.35 $65.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium DAC-10G-2M-VP
SFP+ Direct Attach Twinax Cable, Passive, 2m
The Direct Attach Copper Cable (DAC) makes it easier, less expensive and more reliable to deploy cnWave radios ‘back-to-back’, eliminating the need for separates SFP modules and cable terminations. The DAC cable can also be used for connecting distribution switches to co-located core switches. The Cambium DAC cable delivers rates up to 10 Gbps, is two meters long and, importantly for outdoor applications, operates from -40°C to +85°C.
Benefits of using the DAC cable:
- Eliminates the need to buy two SFP+ transceivers and a compatible optical cable, resulting in reduced inventory management.
- DAC cables are factory terminated and ensure watertight sealing
- Prevents installer errors when terminating optical cables to SFP+ transceivers.
- The overall cost of using the DAC cable solution is much lower than individually buying the SFP+ transceivers and optical cables.
DAC use cases:
- Connecting a 60 GHz cnwave™ V3000-to-V3000 backhauled link
- Connecting a 60 GHz cnWave™ V5000 backhauled by V3000
- Connecting a Distribution layer switch to a core switch
Specifications
Specifications DAC-10G-2M-VP
| Dimension | 12" x 12" x 2" inch |
| Weight | 0.2 lbs |
| Data rate | 10.3125 Gbps |
| Cable Type | Twinax Copper Cable – Passive |
| Connector Type | SFP+ to SFP+ |
| Cable Jacket | PVC |
| Conductor diameter | 30 AWG |
| Cable Diameter | 4.5mm to 6.5mm |
| Bend Radius | 22.5mm to 32.5mm |
| Length | 2m |
| Standard | 10G Ethernet IEEE 802.3ae; SFF-8341 compliant EEPROM: SFF-8472 compliant |
| Operating Temperature | -40°C to +85°C |
| UV Rating | UV resistant tested as per UL 2556 |
| IP Rating | IP67 (only cable) |
| Regulatory | IEC 61000-4-2 level 4 FCC CFR 47 Part 15 class B EN55032 Class B IEC 61000-4—3 ROHS UL 62368-2 UL 60950-22 |
