Cambium 5.4-6.0 GHZ, Antenna for 90 Degree Sector

(0)No Reviews yet
  • SKU: 85009324001
US$‎697.23
  • Manufacturer: Cambium Networks
  • Data Sheet: Download

Out of Stock

Call for Availability

Product Information

Cambium Networks 85009324001

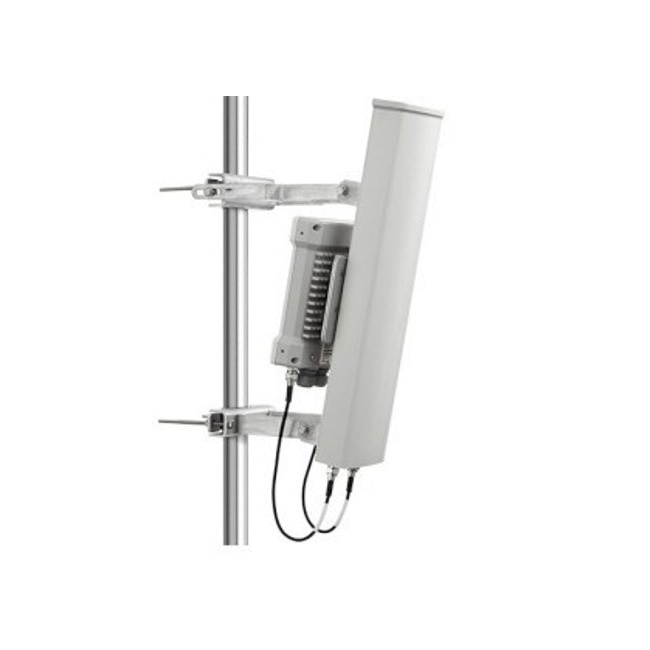

5.4-6.0 GHZ, 90° Sector Antenna

The Cambium Networks Point-to-Multipoint (PMP) 450 Access Point (AP) can provide more than 90 Mbps throughput and is interoperable with PMP 430 and PMP 100 Series Subscriber Modules (SM). Service providers with an installed base of PMP 100 subscribers can now migrate to new high-throughput PMP 450 modules to enhance overall capacity; allowing more users and/or higher rate plans.

Utilizing 2x2 MIMO-OFDM technology, new deployments can take advantage of Cambium Networks proprietary feature set, while achieving data rates higher than 90 Mbps. From the available synchronization options to its diverse feature set, the PMP 450 provides flexible deployment options that make it a good fit for high capacity, high reliability networks.

Cambium Networks provides exceptional wireless broadband connectivity solutions. With more than 3 million modules deployed in thousands of networks around the world, Cambium solutions are proven to provide cost effective, reliable data, voice and video connectivity.

Specifications

Specifications 85009324001

Frequency Range 5.4-6.0 GHz
Antenna Type Access Point Sector
Gain 17dBi +1dBi /-1dBi
VSWR 1.5:1 max
Port To Port Isolation 33 dB
3dB Beamwidth-Azimuth 65°
3dB Beamwidth-Elevation
Elevation Null Fill Down to -23°
1st Null -18dB min
2nd Null -33dB min
3rd Null -36dB min
Azimuth Sidelobes ETSI EN 302.326-3 SS2
Polarization Dual Linear, Horizontal / Vertical
Maximum Input Power 30 W
Input Impedance 50 Ohms
Front-to-Back Ratio V-pol>32 dB
Cross Polarization >28 dB
Dimensions (HxWxD) (mm) 570 x 146 x 64
Antenna Weight (kg) 2.9 kg, w/o bracket kit
Antenna Connector 2 x N-Type Female, Straight
Wind Survival 216 km/h
Pole Mounting Hardware Quick Release, 1.5” to 4.5” Dia. Pole
Mechanical Downtilt 0° to 11°
