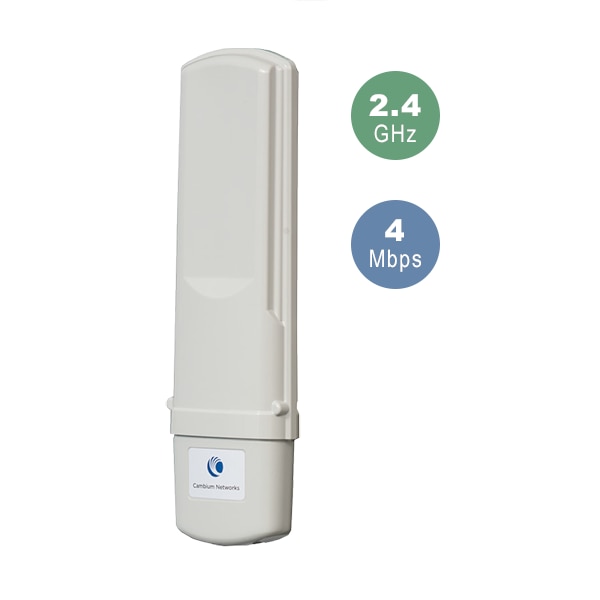

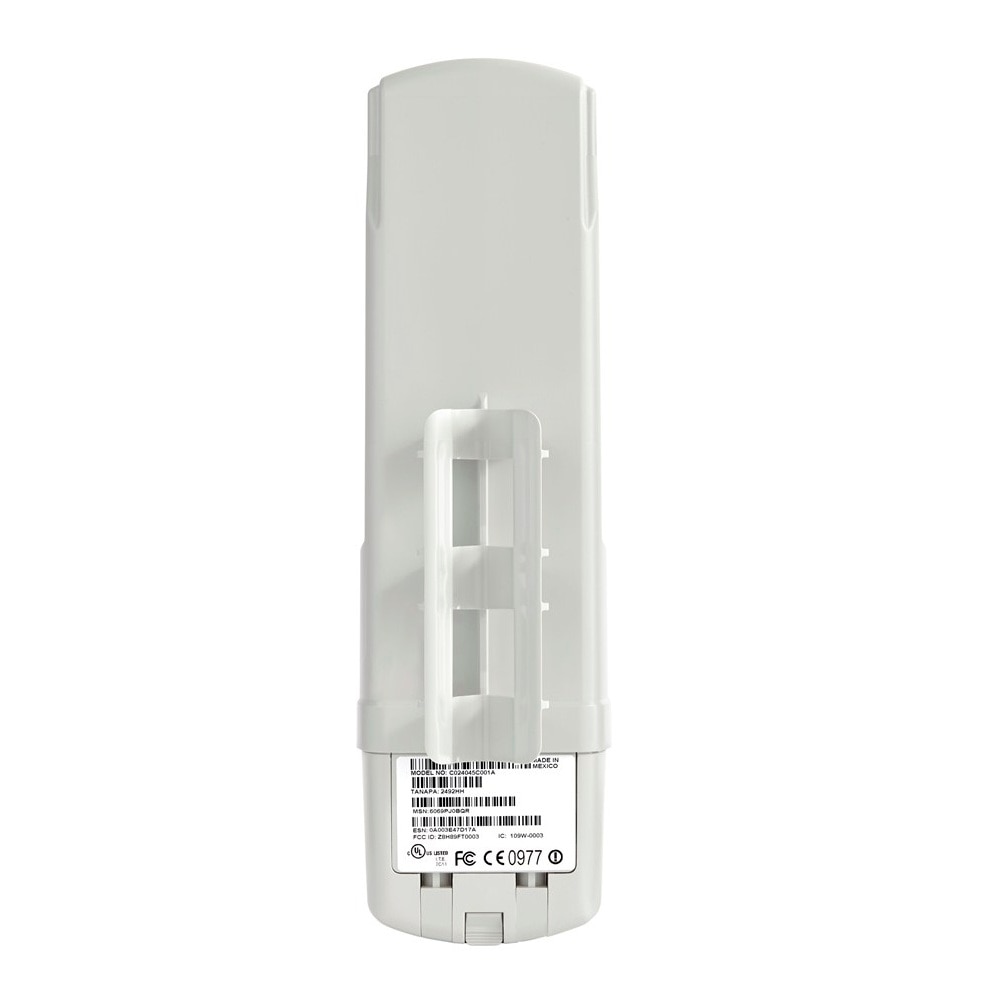

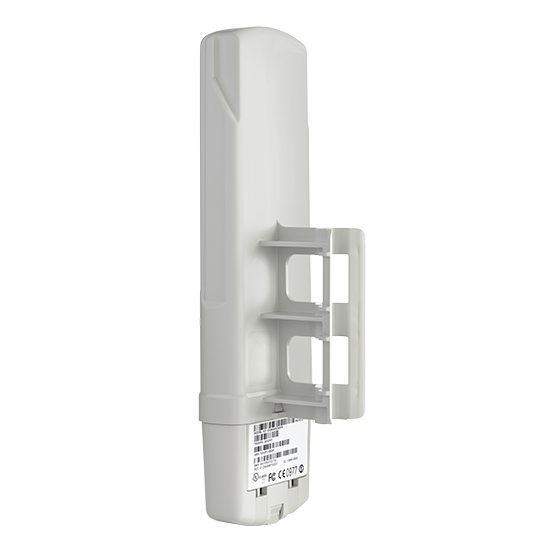

Cambium 2.4 GHz PMP 450 Subscriber Module 4Mbps
- SKU: C024045C001A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C024045C001A
2.4GHz PMP 450 Subscriber Module 4Mbps
The Cambium Networks Point-to-Multipoint (PMP) 450 Access Point (AP) can provide more than 90 Mbps throughput and is interoperable with PMP 430 and PMP 100 Series Subscriber Modules (SM). Service providers with an installed base of PMP 100 subscribers can now migrate to new high-throughput PMP 450 modules to enhance overall capacity; allowing more users and/or higher rate plans.
Utilizing 2x2 MIMO-OFDM technology, new deployments can take advantage of Cambium Networks proprietary feature set, while achieving data rates higher than 90 Mbps. From the available synchronization options to its diverse feature set, the PMP 450 provides flexible deployment options that make it a good fit for high capacity, high reliability networks.
Cambium Networks provides exceptional wireless broadband connectivity solutions. With more than 3 million modules deployed in thousands of networks around the world, Cambium solutions are proven to provide cost effective, reliable data, voice and video connectivity.
Specifications
Specifications C024045C001A
| CHANNEL SPACING | CONFIGURABLE ON 2.5 MHz INCREMENTS, SELECTABLE TO 50 KHz AT 3 GHz FREQUENCY |
| FRQUENCY RANGE | 5470 - 5875 MHz 2400 - 2483.5 MHz |
| CHANNEL WIDTH | 5 MHz, 10 MHz or 20 MHz |
| MAC (MEDIA ACCESS CONTROL) LAYER | CAMBIUM NETWORKS PROPRIETARY |
| PHYSICAL LAYER | 2x2 MIMO OFDM |

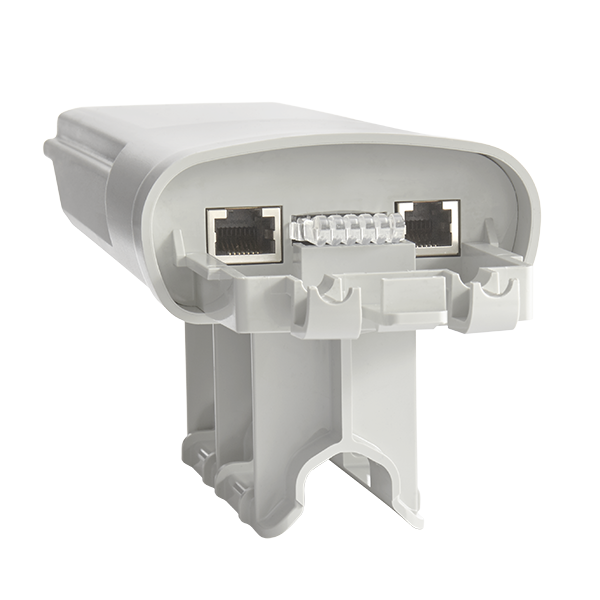

| ETHERNET INTERFACE | 10/100/1000BaseT, half/full duplex, rate auto negotiated (802.3 compliant) |
| PROTOCOLS USED | 1IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| NETWORK MANAGEMENT | HTTP, Telnet, FTP, SNMP v2c |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| ARQ | YES |
| MAXIMUM DEPLOYMENT RANGE | UP TO 40 MILES |
| LATENCY | 3 - 5 ms, TYPICAL |
| GPS SYNCHRONIZATION | YES, VIA AUTOSYNC (CMM3, CMM4, uGPS, iGPS) |
| QUALITY OF SERVICE | DIFFSERVE QoS |
| ANTENNA CONNECTION | INTEGRATED PATCH ANTENNA, CONNECTORIZED VERSIONS AVAILABLE |
| SURGE SUPPRESSION | IEC 61000-4-2 (ESD) 15kV (AIR), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (LIGHTNING) 100A (8/20mS) |
| MEAN TIME BETWEEN FAILURE | > 40 YEARS |
| ENVIRONMENTAL | IP55 |
| TEMPERATURE | -40°C TO +55°C (-40°F TO +131°F), 0-95% NON-CONDESNSING |
| WEIGHT | 0.45 kg (1 lb.) |
| WIND SURVIVAL | 190 km/hour (118 mi/hour) |
| DIMENSIONS (HxWxD) | 30 x 9 x 9 cm (11.75” x 3.4” x 3.4”) |
| TYPICAL POWER CONSUMPTION | 9 W (5 GHz AND 2.4 GHz), 12 W (3 GHz) |
| MAXIMUM POWER CONSUMPTION | 12 W (5 GHz AND 2.4 GHz), 15 W (3 GHz) |
| INPUT VOLTAGE | 20 TO 32 V |
| ENCRYPTION | 56-bit DES, FIPS-197 128-bit AES |
