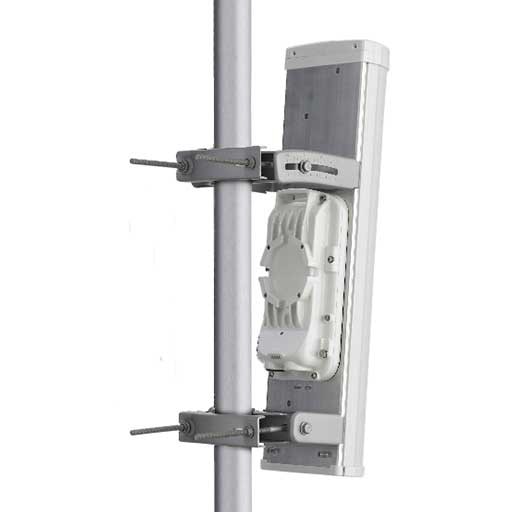

Cambium 3GHz PMP 450i Integrated AP 90°

(0) No Reviews yet
  • SKU: C030045A002A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: 10 In Stock (updated live)
$3,359.00

Specifications C030045A002A

Channel SpacingConfigurable on 2.5 MHz increments, 3 GHz customizable up to 50 KHz
Frequency Range3300 to 3900 MHz
Channel Width5 / 7 / 10 / 15 / 20 / 30 MHz
MAC (Media Access Control) LayerCambium Networks proprietary
Physical Layer2x2 MiMO OFDM
Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols UsedIPv4, UDP, TCP, IP, ICMP,Telnet, DNMP, HTTP, FTP
Network ManagementHTTP, HTTPS, Telnet, FTP, SNMP v3
VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber Per SectorUp to 238
ARQYes
Maximum Deployment RangeUp to 40 miles (64 km)
Latency3 -5 ms, typical
GPS SynchronizationYes, via Autosync (CMM4)
Quality of Service(Diffserve QoS)
Integrated Sector Antenna90° Azimuth, 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual Polarity
Antenna Gain17 dBi ± 1 dBi Integrated 90° sector
Transmit Power Range40 dB dynamic range (to EIRP limit by region) (1 dB step)
Maximum Transmit Power+27 dBm combined output (+25 dBm combined for 3 GHz)
Surge Suppression (LPU fitted)EN61000-4-5: 1.2us/50us, 500 V voltage waveform
Mean Time Between Failure> 40 years
EnvironmentalIP67, IP66
Temperature / Humidity-40 to 60°C (-40 to 140°F), 0 to 05% non-condensing
WeightApprox. 7.5 kg (16.5 lbs)
Wind Survival200 km/h (124 mph)
Dimensions59.7 x 16.2 x 15.2 cm (23.5 x 6.4 x 6 ")
Power Consumption15 W typical, 25 W max, 55 W max with Aux port PoE out enabled
Input Voltage48 to 59 VDC, 802.3at compatible
Encryption56-bit DES, FIPS-197 128-bit AES
CEEN 302 326-2 v1.2.2 / EN 302 326-3 v1.3.1

Cambium Networks C030045A002A

3GHz PMP 450i Integrated AP 90°

Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.

Key Features:

  • Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
  • Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
  • Dynamic Interference Filtering to provide industry leading noise isolation for improved performance.
  • Updated FPGA and SoC architecture triples the processing power compared to PMP 450.
  • Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
  • Option with new Integrated 90 degree sector antenna optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
