Cambium 3 GHz PMP 450i Integrated Access Point, 90 Degree, No Encryption
US$3,877.65
- SKU: C030045A004A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C030045A004A
Cambium 3 GHz PMP 450i Integrated Access Point, 90 Degree, DES Only
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Features:
- Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance.
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450.
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.

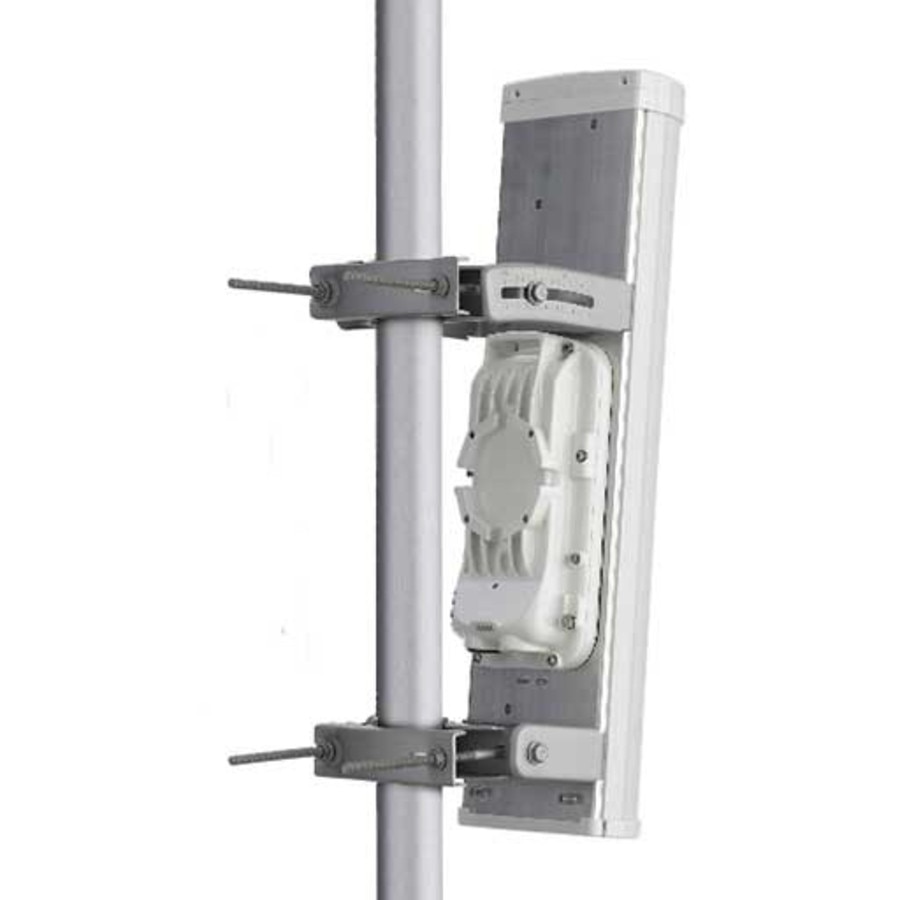

- Option with new Integrated 90 degree sector antenna optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
Specifications
Specifications C030045A004A
| Channel Spacing | Configurable on 2.5 MHz increments, 3 GHz customizable up to 50 KHz |
| Frequency Range | 3300 to 3900 MHz |
| Channel Width | 5 / 7 / 10 / 15 / 20 / 30 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MiMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP,Telnet, DNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Subscriber Per Sector | Up to 238 |
| ARQ | Yes |
| Maximum Deployment Range | Up to 40 miles (64 km) |
| Latency | 3 -5 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM4) |
| Quality of Service | (Diffserve QoS) |
| Integrated Sector Antenna | 90° Azimuth, 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual Polarity |
| Antenna Gain | 17 dBi ± 1 dBi Integrated 90° sector |
| Transmit Power Range | 40 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +27 dBm combined output (+25 dBm combined for 3 GHz) |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform |
| Mean Time Between Failure | > 40 years |
| Environmental | IP67, IP66 |
| Temperature / Humidity | -40 to 60°C (-40 to 140°F), 0 to 05% non-condensing |
| Weight | Approx. 7.5 kg (16.5 lbs) |
| Wind Survival | 200 km/h (124 mph) |
| Dimensions | 59.7 x 16.2 x 15.2 cm (23.5 x 6.4 x 6 ") |
| Power Consumption | 15 W typical, 25 W max, 55 W max with Aux port PoE out enabled |
| Input Voltage | 48 to 59 VDC, 802.3at compatible |
| Encryption | 56-bit DES, FIPS-197 128-bit AES |
| CE | EN 302 326-2 v1.2.2 / EN 302 326-3 v1.3.1 |
