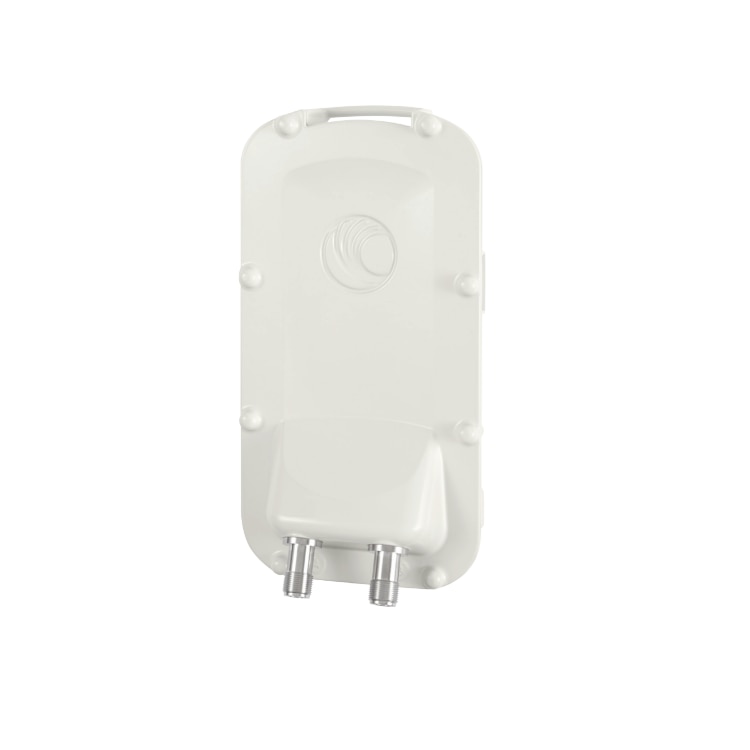

Cambium 3 GHz PMP 450i Connectorized Access Point, LITE
US$1,899.15
- SKU: C030045AL01A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C030045AL01A
PMP450i LITE 3GHz AP, Connectorized Access Point Limited to 20 Subscribers Connected. CBRS and Part 96 compliant
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Key Features:
- Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAXLOC certified models available for hazardous deployments
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly
- Options for Integrated 90° sector antenna optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance, or Integrated 10° sector antenna for highly directional sectors
- Now capable of up to 300 Mbps per sector in a 40 MHz channel
Specifications
Specifications C030045AL01A
| Channel Spacing | Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz |
| Frequency Range | 3 GHz : 3300 - 3900 MHz |
| Channel Width | 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MiMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP,Telnet, DNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Subscriber Per Sector | Up to 238 - *Lite models limited to 20 Subscribers, License Key (C000045K010A) available to remove this limit |
| ARQ | Yes |
| Maximum Deployment Range | Up to 40 miles (64 km) |
| Latency | 3 -5 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM4) |
| Quality of Service | (Diffserve QoS) |
| Antenna Connection | 50 ohm, N-Type (Connectorized version only) |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform |
| Mean Time Between Failure | > 40 years |
| Environmental | IP67, IP66 |
| Temperature / Humidity | -40 to 60°C (-40 to 140°F), 0 to 05% non-condensing |
| Weight | Approx. 2.0 kg (4.5lbs) |
| Wind Survival | 322 km/h (200 mph) |
| Dimensions | 26.0 x 13.4 x 6.4 cm (10.3 x 5.3 x 3.3 ") |
| Power Consumption | 15 W typical, 25 W max, 55 W max with Aux port PoE out enabled |
| Input Voltage | 48 to 59 VDC, 802.3at compatible |
| Encryption | 56-bit DES, FIPS-197 128-bit AES |
| CE | EN 302 326-2 v1.2.2 / EN 302 326-3 v1.3.1 |
