Cambium PTP 450i 3 GHz END High Gain Antenna

  • SKU: C030045B002A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!

Cambium Networks C030045B002A

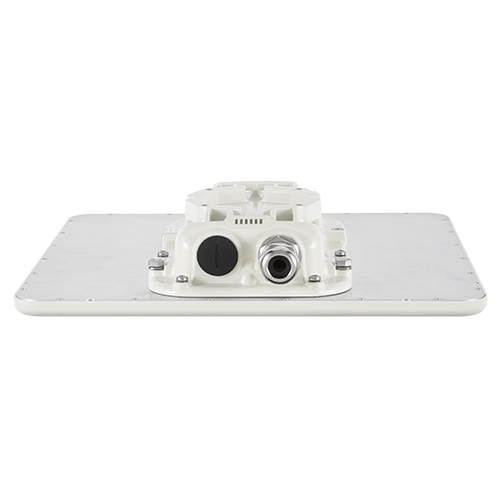

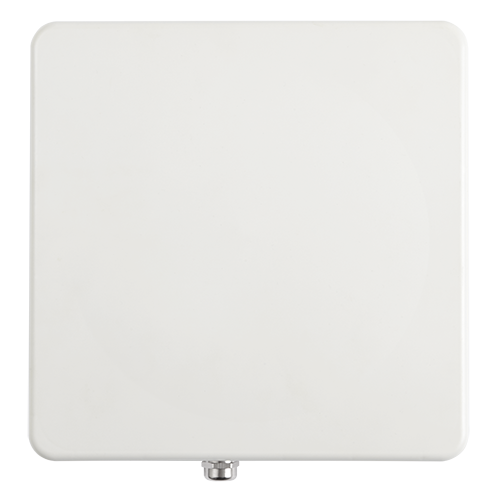

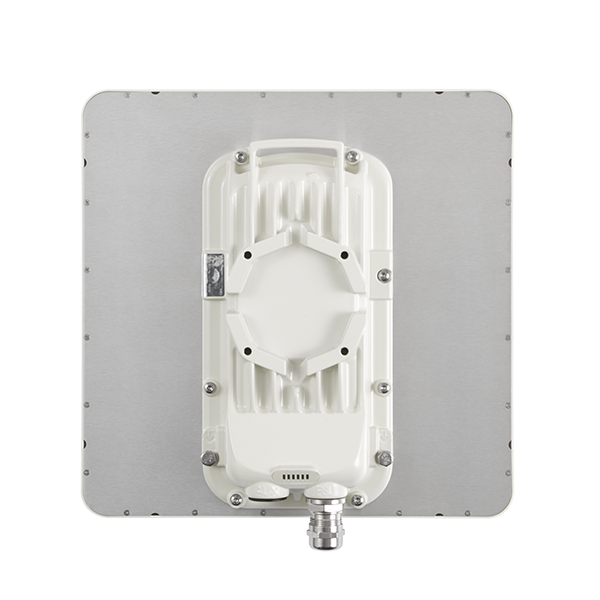

PTP 450i 3 GHz END High Gain Antenna

Designed for fixed outdoor applications, the PTP 450 platform is optimized for reach, reliability and throughput. It features the most resilient and effective set of wireless broadband technologies in the marketplace.

The PTP 450 is available in multiple bands including 5 GHz, 3.5 GHz licensed and 3.65 GHz lightly licensed. This variety of bands gives enterprises and service providers flexibility to choose the most effective solution for their network.

The Cambium Networks PTP 450 point to point solution is designed for connecting enterprise customers to the network quickly while meeting service level agreements with reliable consistent throughput.

Low latency of 3 - 5 ms effectively supports video and VoIP services. Flexible channel width (5, 10 and 20 MHz) allows users to select the most effective channel width for the current network environment. 256-QAM modulation rate offers the unique ability to use the PTP 450 platform for services requiring fast and reliable transmission.

OFDM 2x2 MIMO A and B technology allows dual stream operation for most channel conditions, guaranteeing successful deployment of wireless networks in challenging environments.

The PTP 450 can be fitted with either the CLIP (5 GHz only) or the reflector dish to extend the range by increasing the link budget. Multiple PTP 450s can be mounted on a single tower and synchronized with the Cambium GPS synchronization solutions.

Shipping Information:

Dimensions (W x H x L)13.39cm X 5.12cm X 14.49cm
Weight6.39 lbs

Specifications C030045B002A

Description 3 GHz PTP 450i END, Integrated High Gain Antenna.
Broadband Frequency Band 3.5 GHz
requency Range 3300-3900 MHz
Broadband Antenna TypeIntegrated
Data Rate 120 Mbit/s
Security/Encryption 56-bit DES, FIPS-197 128-bit AES
Maximum Data Rate 120 Mbit/s
Channel Bandwidth 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz or 30 MHz
Interface 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
