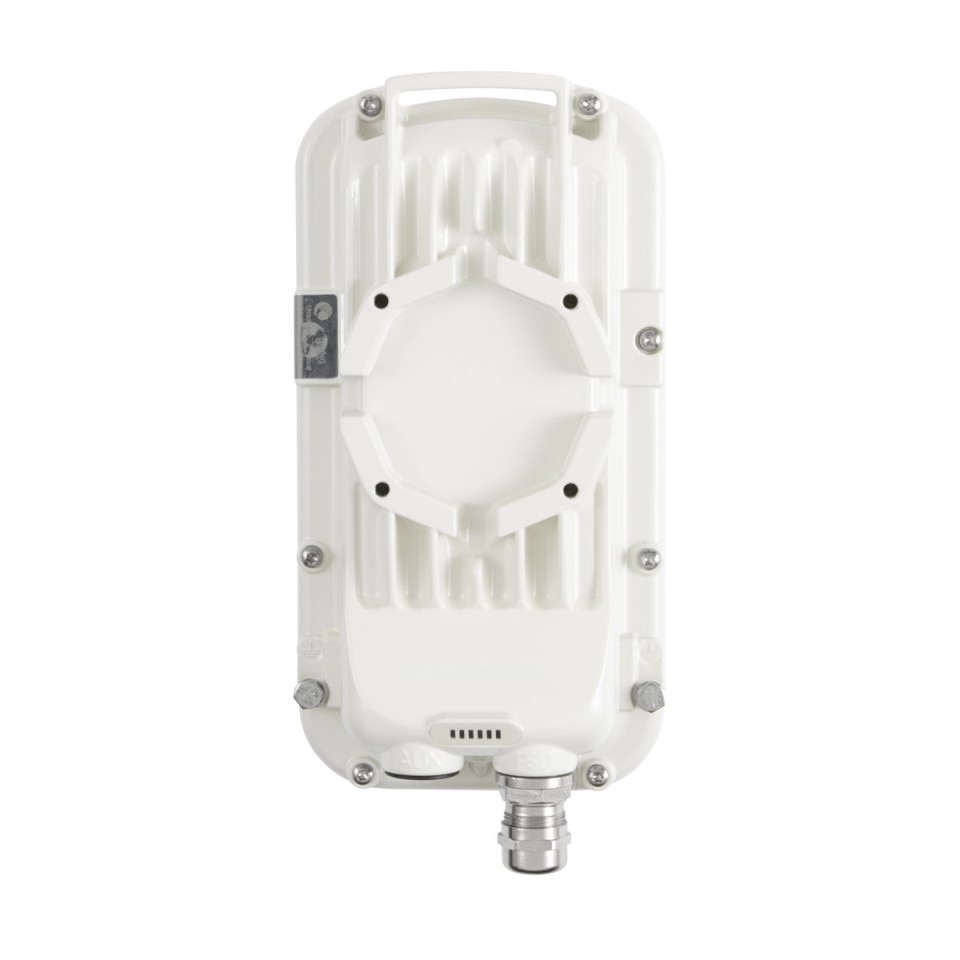

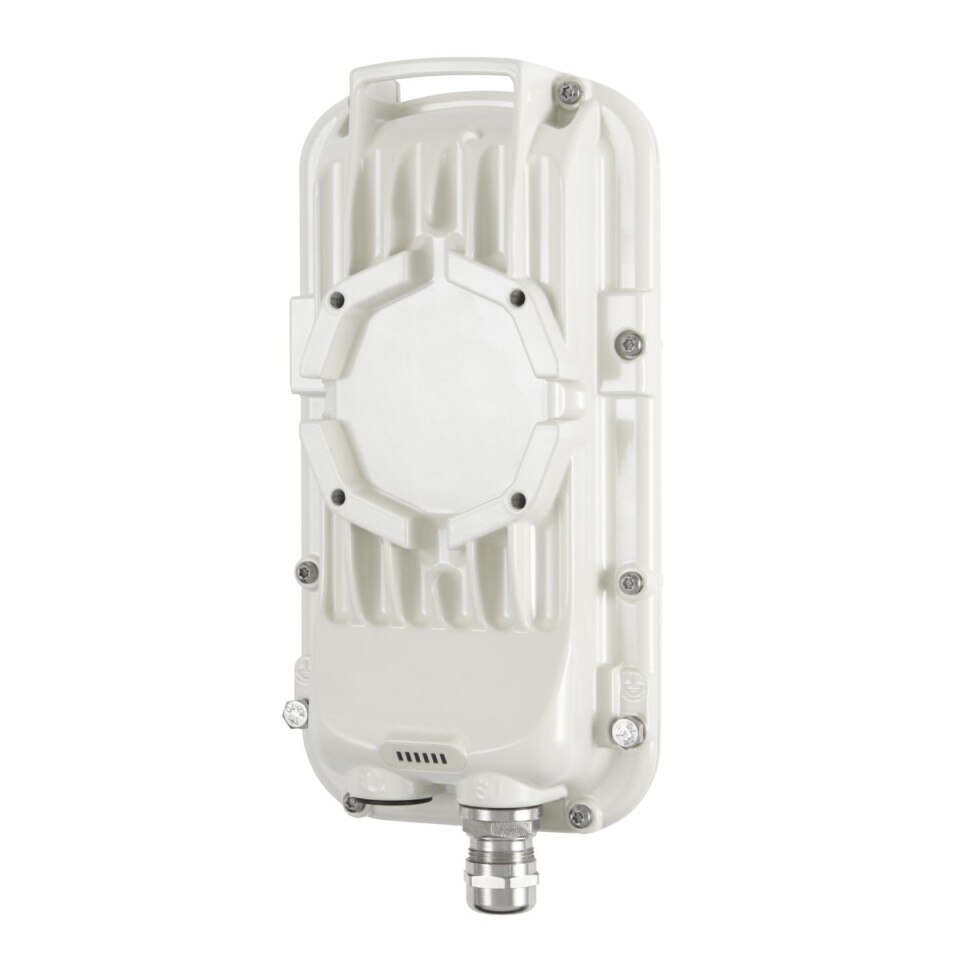

Cambium 3 GHz PTP 450i END, Connectorized, No Encryption
US$1,101.04
- SKU: C030045B003A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C030045B003A
Cambium 3 GHz PTP 450i END, Connectorized, No Encryption
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Features:
- Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
- Now capable of over 300 Mbps throughput in a 40 MHz channel.
Specifications
Specifications
| Channel Spacing | 3 GHz: Customizable to 50 KHz |
| Frequency Range | 3 GHz: 3300 - 3900 MHz |
| Channel Width | 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) |
| Maximum Deployment Range | Up to 200 kilometers (124 miles) depending on configuration |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, via Autosync (UGPS, CMM4 or CMM5) |
| Quality of Service | Diffserve QoS |
| Antenna Connection | 50 ohm, N-Type (Connectorized version only) |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A |
| Mean Time Between Failure | >40 Years |
| Dust and Water Ingress Protection Rating | IP67, IP66 |
| Temperature / Humidity | -40°C to +75°C (-40°F to +167°F), 0-100% condensing |
| Weight | Approx. 2.0 kg (4.5 lbs) |
| Wind Survival | 322 km/h (200 mi/h) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (HxWxD) | 26.0 x 13.4 x 6.4 cm (10.25” x 5.25” x 3.25”) |
| Power Consumption | 15 W typical, 18 W max, Using Aux port PoE for another device will increase power draw |
| Input Voltage | 48-59 V DC, 802.3at compliant |

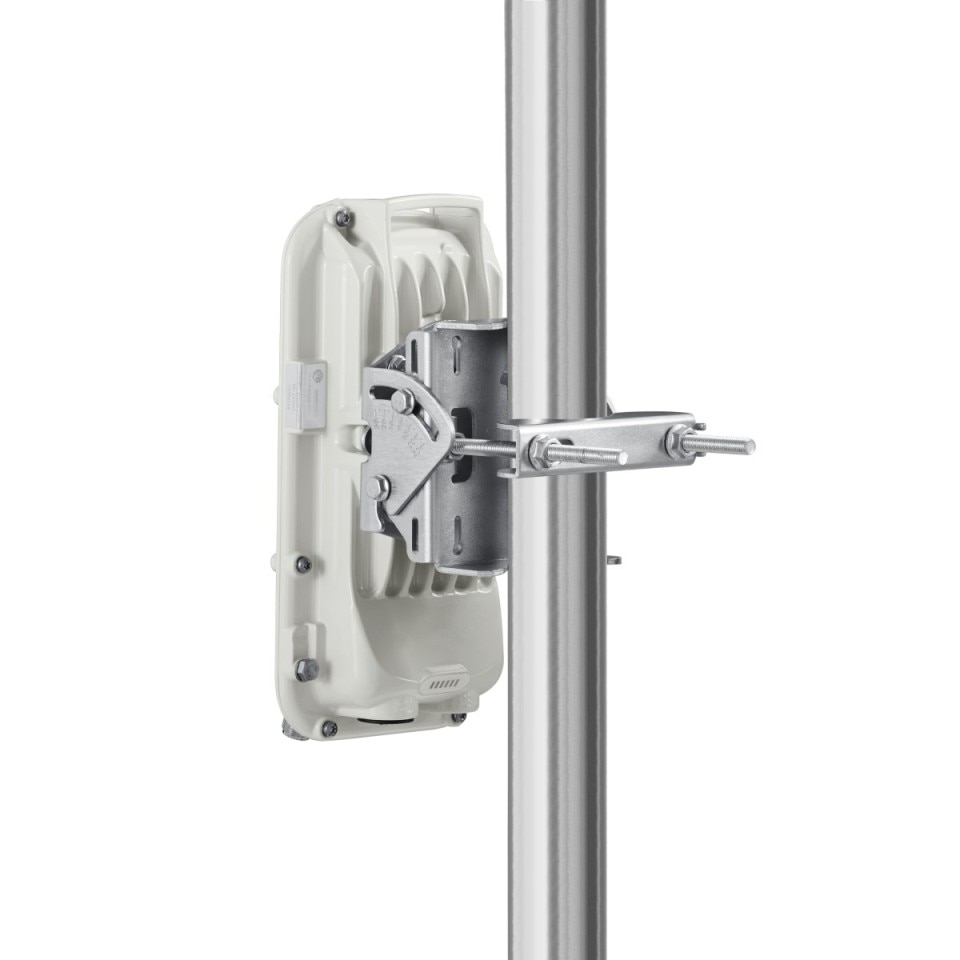

| Mounting | Wall or Pole mount with Cambium Networks Model # N000045L002A |
| Antenna Beam Width | 10° azimuth for integrated antenna |
| Antenna Gain | 3 GHz Integrated: +19 dBi dual pol, H+V |
| Transmit Power Range | 40 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +27 dBm combined output (+25 dBm combined for 3 GHz) |
| VSWR | 1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, Backhaul slave implements ATPC (Future Software release) |
| ISED Canada | 109W-0028 (3 GHz) |
| FCC ID | Z8H89FT0028 (3 GHz) |
