Cambium 3.3-3.8 GHz 90° Sector Dual Slant OFDM

(0) No Reviews yet
  • SKU: C030045D901A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for availabilityEmail me when this product is in stock!
$440.00

Specifications C030045D901A

FREQUENCY RANGE 3.3 – 3.8 GHz
ANTENNA TYPE Access Point Sector
GAIN 16dBi +1dBi /-1dBi
VSWR 1.5:1 max
PORT TO PORT ISOLATION 25 dB min
6dB BEAMWIDTH-AZIMUTH 90°
3dB BEAMWIDTH-AZIMUTH 65°
3dB BEAMWIDTH-ELEVATION
AZIMUTH SIDE LOBES ETSI EN 302 326-3 SS2
ELEVATION NULL FILL Down To -25°
POLARIZATION Dual Slant, +/- 45°
MAXIMUM INPUT POWER 30 W
INPUT IMPEDANCE 50 Ohms
FRONT-TO-BACK RATIO ETSI EN 302 326-3, V1.2.2, Table 12, SS2 > 35 dB, 180 ± 30°
CROSS POLARIZATION > 12 dB, 0 ± 30°
MECHANICAL SIZE (mm)715h X 123w X 68d
ANTENNA WEIGHT 3.0 kg (6.6 lb), w/o bracket kit
MOUNTED ANT WEIGHT (w/ AP) 4.6 kg (10 lb)
ANTENNA CONNECTOR 2 X N-Type Female, Straight
WIND SURVIVAL 216 km/h (135 mph)
WIND LOADING (@216 km/h) Front: 249 N (56 lbf)
POLE MOUNTING HARDWARE Quick Release, 1.5” TO 4.5” Dia. Pole
MECHANICAL DOWNTILT 0° TO 11°

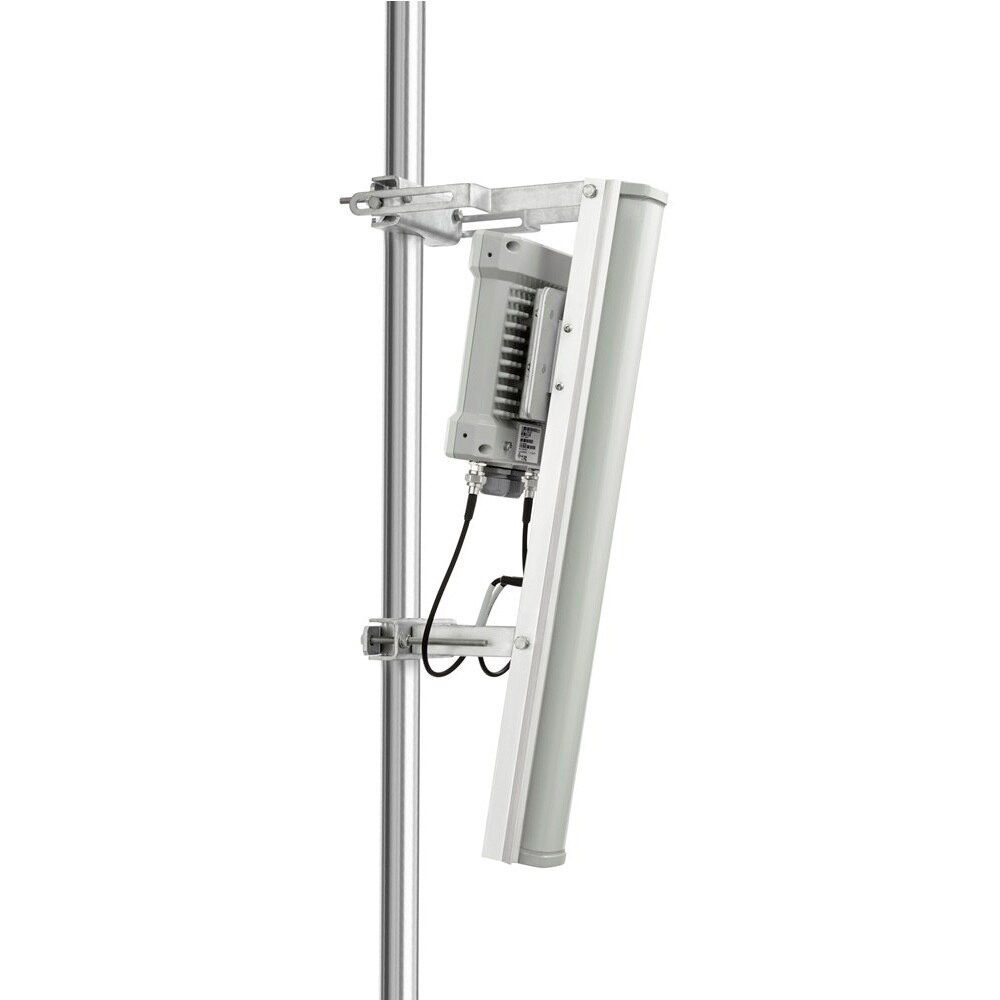

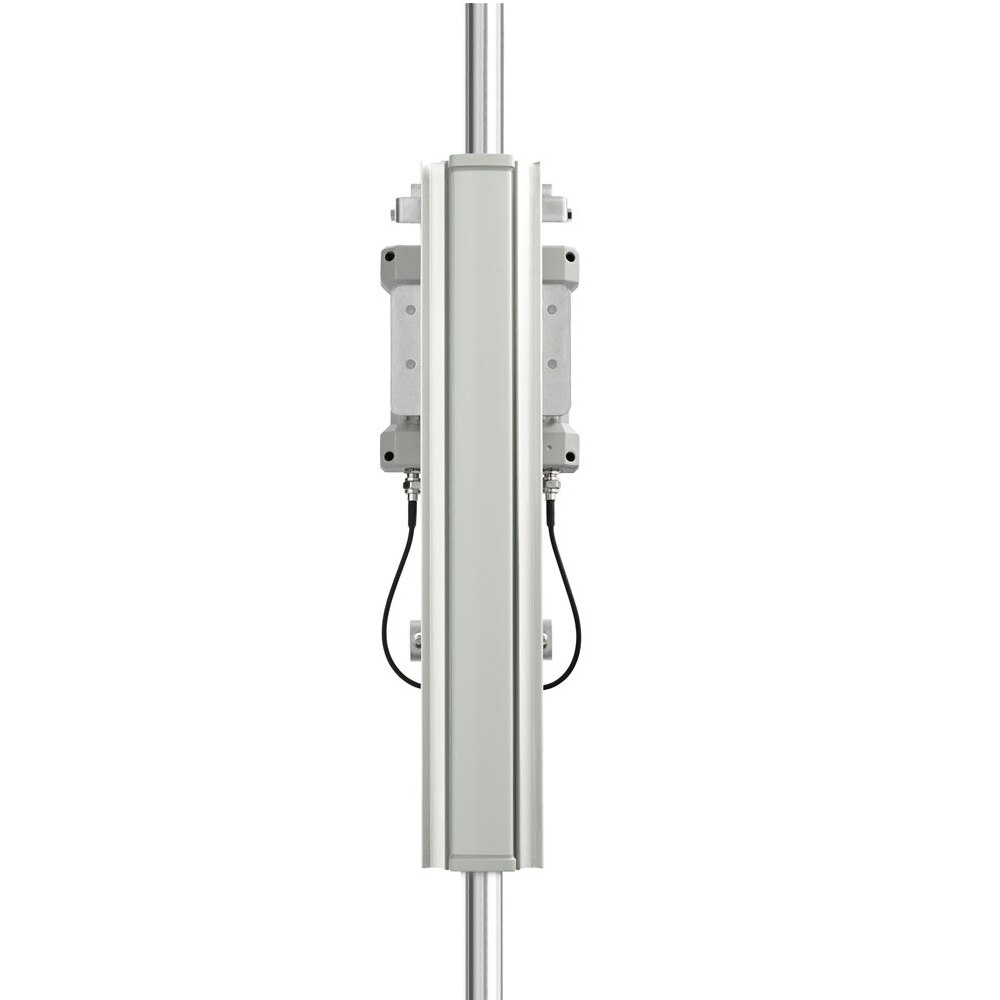

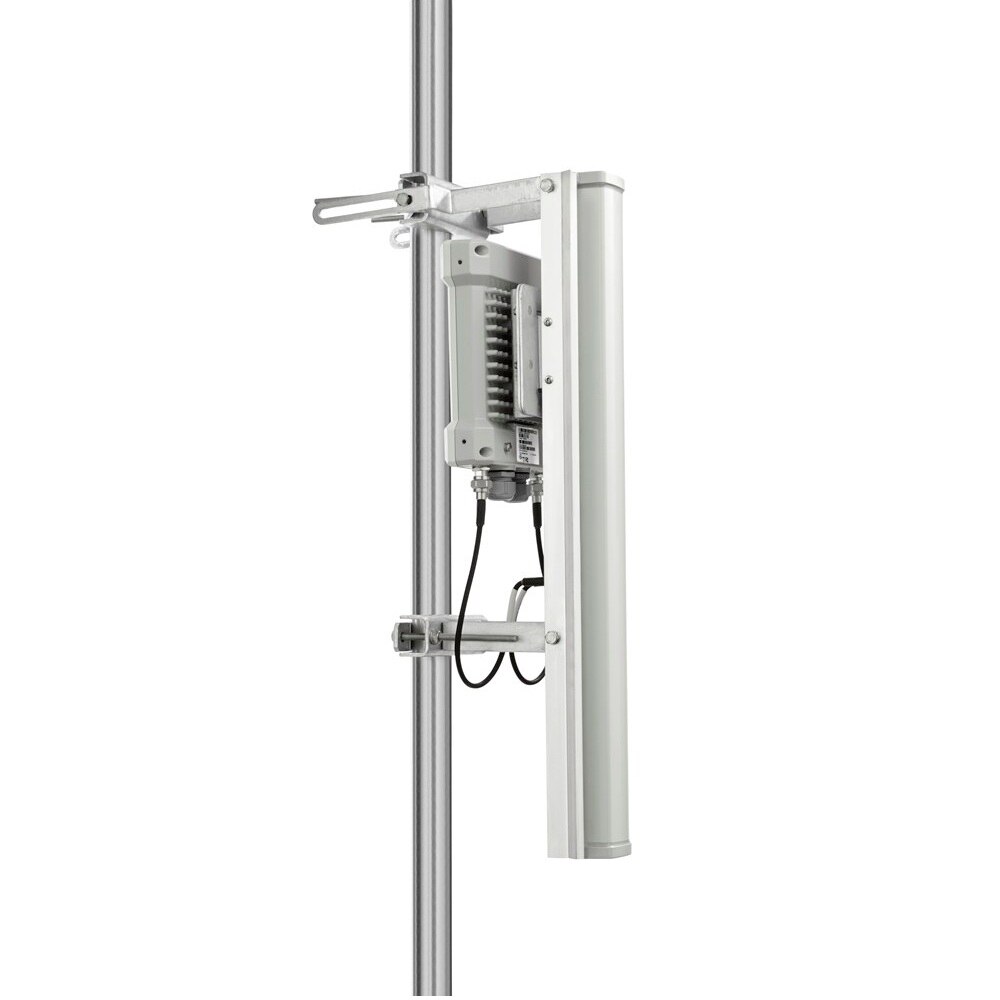

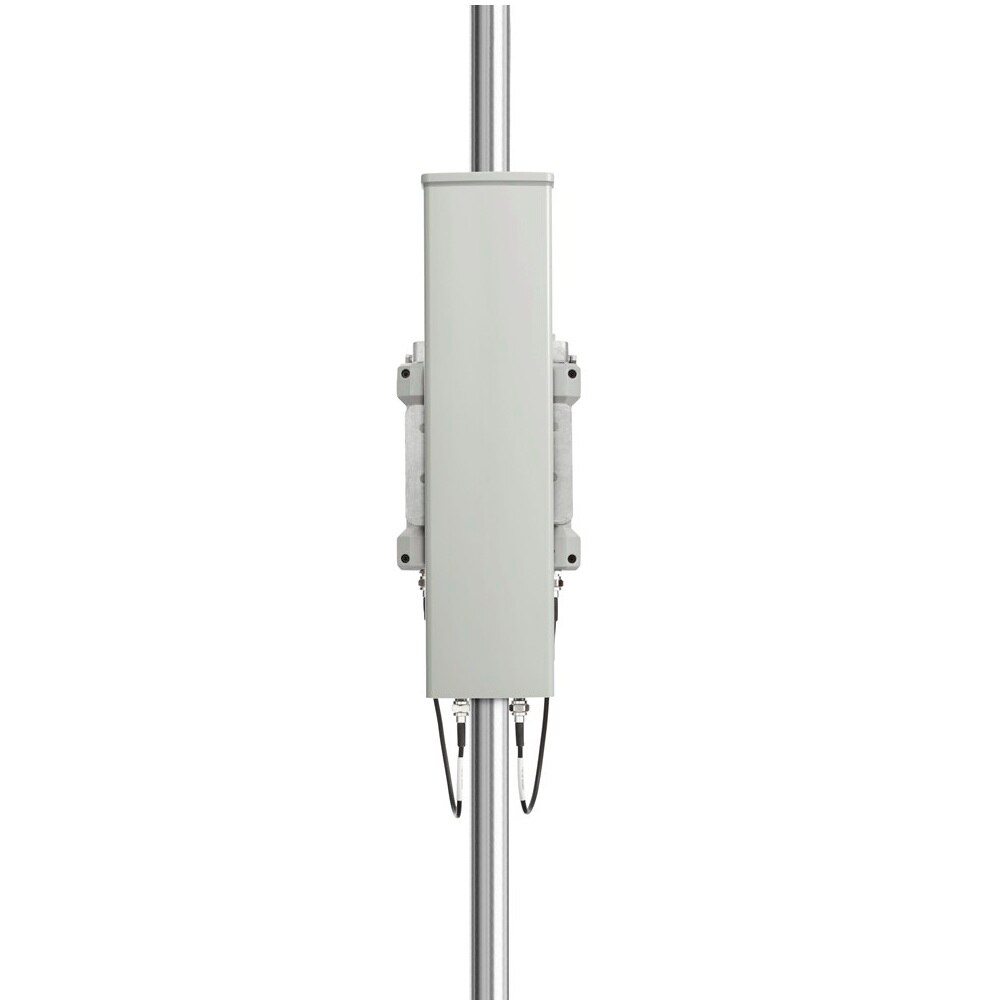

Cambium 3.3-3.8 GHz 90° Sector Dual Slant OFDM

Antenna for 90 Degree Sector (Dual Slant OFDM) Access Point not included

A wireless broadband communication system has many components; each one contributes to the overall performance and ultimately affects operator revenues. Well-designed components that complement each other will improve overall network performance, increase the longevity of the system and optimize operators’ profits.

One of the principal considerations in a communications system is antennas. Their impact is enormous - using the wrong antenna will degrade the overall performance of an otherwise well engineered system, resulting in customer dissatisfaction.

At Cambium Networks, antennas are engineered to address most typical network and terrain challenges and built to the highest level quality and reliability. The 3 GHz Access Point 90 degree sector antennas are specifically designed for use with the 3 GHz PMP 450 platform of products. As a result of their consistent front-to-back ratio in combination with power control and high gain, these antennas deliver optimized performance, including maximized spectral efficiency and easy installation.


Features:

The 3 GHz Access Point Antenna offers an ideal array of features - spectral efficiency, higher gain than other solutions, a capability to overcome environmental challenges and improved signal strength. This antenna operates within 3 GHz band, covering 3.5 GHz and 3.65 GHz.


2x2 Multiple Input and Multiple Output (MIMO) gives 3 GHz Access Point Antennas the benefits of dual stream operation for most channel conditions, provides interference mitigation by selecting the best signal quality and allows for successful deployment of wireless networks in difficult environments.


High gain directional solution used by 3 GHz Access Point Antennas effectively focuses the main 16 dBi lobe while minimizing side-lobe leakage. This targeted transmission increases capacity over other types of antennas and decreases the interference from adjacent sources, while assuring the best signal quality for customers.


3 GHz Access Point Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.
