Cambium PTP 550 Connectorized 5 GHz FCC US Line Cord
- SKU: C050055H001A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Cambium Networks C050055H001A

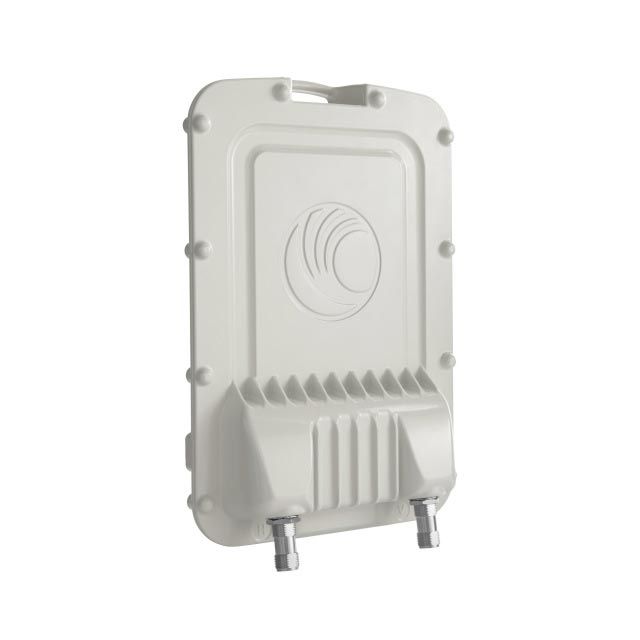

Cambium PTP 550 Connectorized 5GHz FCC US Line Cord
The PTP 550, with its unmatched 1.4 Gbps performance, provides the highest throughput in a point-to-point configuration. The PTP 550 radio is ideal for quickly establishing high-capacity backhaul for any application ranging from video surveillance to ISP backhaul network traffic. The PTP 550 solution draws it attributes from Cambium’s Point to Point product portfolio such as PTP 650/670 and PTP 450i backhaul solutions.
Each PTP 550 comes with IP66/67 Metal enclosure, which protects the radio from extreme condition and solar radiation.
Using GUI e-alignment on the radio, the PTP 550 provides accurate and reliable way to install the radio.
Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel the PTP 550 achieves 1.36 Gbps.
DYNAMIC SPECTRUM OPTIMIZATION (DSO)*
With Dynamic Spectrum Optimization, PTP 550 systems are constantly optimizing the channel of operation to maximize link reliability and performance. Based on environment the PTP 550 can be set to move or search better spectrum. As a result, customer can get more throughput with limited spectrum in even the most challenging environments.
- 5.150 GHz to 5.850 GHz
- Targeted for 1.36 Gb/s with Channel Bonding
- Dynamic Spectrum Optimization (DSO) hardware ready
- TDD Sync capability
- cnMaestro™ support
- Channel bandwidth: 2x 20/40/80 MHz
- Maximum range of 122 miles
- FIPS-197 128 bit AES encryption
|Broadband Frequency Band||5 GHz|
|Frequency Range||5.150-5.950 GHz|
|Broadband Antenna Type||Connectorized|
|Data Rate||1.36 Gbit/s|
|Maximum Data Rate||1.36 Gbit/s|
|Interface||1 Gigabit Port: Data + PoE power input, 1 SFP port|
|Temperature Range||-40-60 deg C|
