Cambium PTP 670 Connectorized END with AC+DC Enhanced Supply (FCC)
US$3,409.55
- SKU: C050067H002C
- Manufacturer:
- Data Sheet: Download
Product Information
Cambium Networks C050067H002B

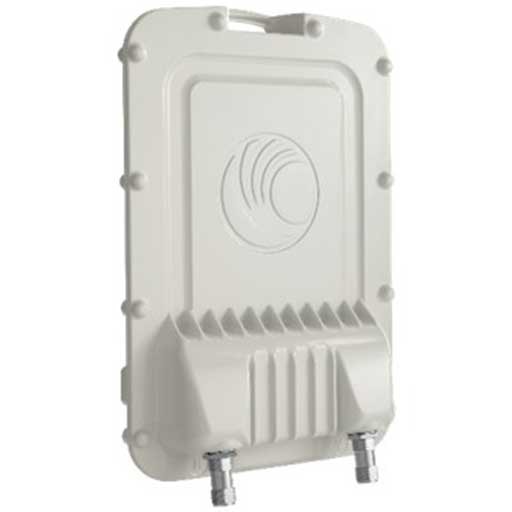

PTP 670 Connectorized END with AC+DC Enhanced Supply (FCC)
C050067H002B is a connectorized PTP 670 radio, with 2 N-Female connectors. This model comes with an AC/DC power injector, and operates on frequencies between 4.9 and 6.05GHz. PTP 670 uses HCMP (High Capacity MultiPoint) for a quick setup, useful for applications such as temporary emergency networks.
Features:
- Frequency band: 4.9 to 6.05GHz
- Maximum of 450MB/s and maximum range of 155 miles in a PTP topology
- Up to 8 remote notes and maximum of 25 mile range in a HCMP topology
- FIPS-197 128/256-bit AES encryption
- IEEE 1588v2 and Synchronous Ethernet (SyncE)
Specifications
Specifications C050067H002B
- RF Bands: Wide-band operation 4.9 to 6.05GHz (allowable frequencies and bands are dictated by individual country regulations)
- Channel Sizes: 5/10/15/20/30/40/45MHz channels, depends on individual country regulations
- Spectral Efficiency: 10bps/Hz maximum
- Channel Selection: By Dynamic Spectrum Optimization or manual intervention. Automatic selection on start-up and continual self-optimization to avoid interference
- Maximum Transit Power: Up to 27dBm
- Ethernet Protocol: IEEE 802.3
- Latency: 1-3 milliseconds one direction
- QoS: Extensive QoS supporting up to 8 Queues
- Timing Transport: Synchronous Ethernet; IEEE 1588v2
- Remote Modules Master: Up to 8 Nodes
- Channel Bandwidth: 20 and 40MHz
