Cambium ePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (US cord)

(0)No Reviews yet
  • SKU: C050900C161A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
12 in stock
College Station
12 In stock

Product Information

Cambium Networks C050900C161A

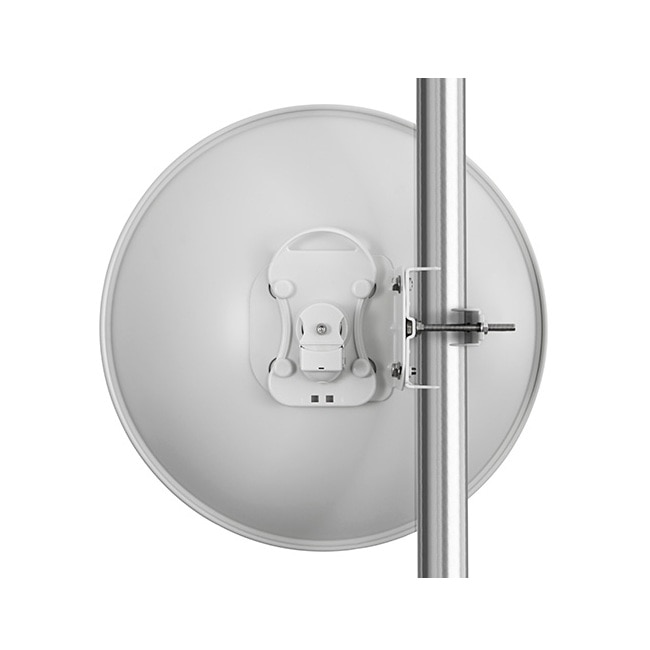

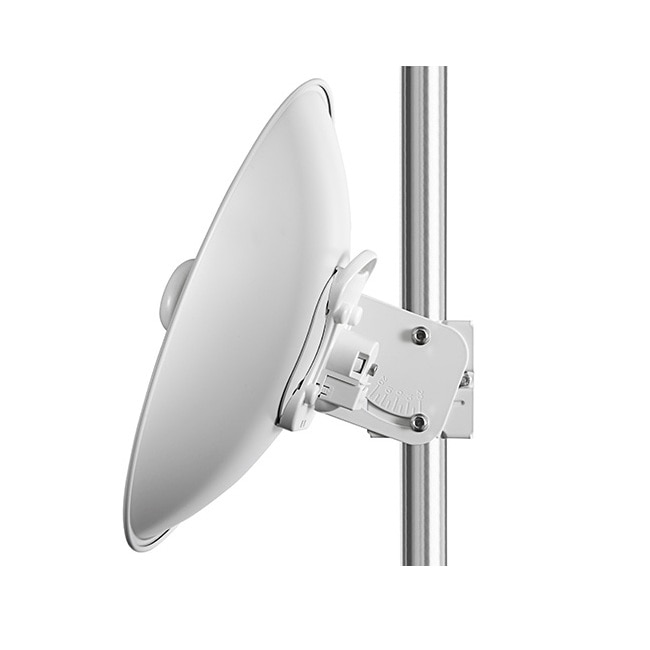

Cambium ePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (US cord)

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 and 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

Specifications

Specifications C050900C161A

SPECTRUM
Channel Spacing Configurable on 5 MHz increments
Frequency Range 2.4 GHz Model: 2402 – 2472 MHz 5 GHz Model: 4910 - 5970 MHz
Channel Width 5 | 10 | 20 | 40 MHz
INTERFACE
MAC (Media Access Control) Layer Cambium Proprietary
Physical Layer2x2 MIMO/OFDM
Ethernet Interfaced 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
PHYSICAL
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Weight 2.4 GHz Model: 2.8 kg (6.2 lbs) 5 GHz Model: 2.3 kg (5.1 lbs)
Wind Survival 145 km/hour (90 mi/hour)
Dimensions (Dia x Depth) 47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range 6.4 cm - 7.6 cm (2.5 in - 3 in)
Power Consumption 10 W Maximum, 5 W Typical
Input Voltage 10 to 30 V
SECURITY
Encryption 128-bit AES (CCMP mode)
CERTIFICATIONS
FCCID 2.4 GHz: Z8H80FT0019 / 5 GHz: Z8H80FT0015
Industry Canada Cert2.4 GHz: 109W-0019 / 5 GHz: 109W-0015
CE 5 GHz: EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1
ANTENNA SPECIFICATIONS 2.4 GHZ SPECIFICATION
Frequency Range 2402 – 2472 MHz
Antenna Type Dish
Peak Gain 17 dBi
3dB Beamwidth-Azimuth 17°
3dB Beamwidth-Elevation 17°
Front-To-Back Isolation >20 dB
Cross Polarization >15 dB
