Cambium ePMP 5 GHz Force 300 CSM Radio (IC) (Canada/US cord)
|Channel Spacing||Configurable in 5 MHz increments|
|Frequency Range||Wide Band Operation 4.910 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)|
|Channel Width||20 | 40 | 80 MHz|
|MAC (Media Access Control) Layer||Cambium Proprietary|
|Physical Layer||2x2 MIMO/OFDM|
|Ethernet Interfaced||10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts|
|Protocols Used||IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH|
|Network Management||IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™|
|VLAN||802.1Q with 802.1p priority|
|Nominal Receive Sensitivity (w/FEC) @20 MHz Channel||MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)|
|Nominal Receive Sensitivity (w/FEC) @40 MHz Channel||MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)|
|Nominal Receive Sensitivity (w/FEC) @80 MHz Channel||MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)|
|Modulation Levels (Adaptive)||MCS0(BPSK)to MCS9 (256QAM5/6)|
|Transmit Power Range||0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)|
|Surge Suppression||1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)|
|Temperature||-22°F to +140°F (-30°C to +60°C)|
|Weight||0.46 kg (1.0 lbs.)|
|Wind Survival||180 km/hour (112 mi/hour)|
|Dimensions (Dia x Depth)||220mm x 80mm x 25mm (8.7in. x 3.15in. x 1.0 in.)|
|Pole Diameter Range||6.4 cm – 7.6 cm (2.5 in – 3 in)|
|Power Consumption||12 Watts|
|Input Voltage||30 Volts|
|Encryption||128-bit AES (CCMP mode)|
|Industry Canada Cert||109W-0047|
|CE||EN301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)|
|C058910C122A||ePMP 5 GHz Force 300 CSM Radio (FCC) (US cord)|
|C050910C124A||ePMP 5 GHz Force 300 CSM Radio (IC) (Canada/US cord)|
|C050910C223A||ePMP 5 GHz Force 300 CSM Radio (EU) (EU cord)|
|C050910C323A||ePMP 5 GHz Force 300 CSM Radio (EU) (UK cord)|
|C050910C021A||ePMP 5 GHz Force 300 CSM Radio (ROW) (no cord)|
|C050910C121A||ePMP 5 GHz Force 300 CSM Radio (ROW) (US cord)|
|C050910C221A||ePMP 5 GHz Force 300 CSM Radio (ROW) (EU cord)|
|C050910C321A||ePMP 5 GHz Force 300 CSM Radio (ROW) (UK cord)|
|C050910C421A||ePMP 5 GHz Force 300 CSM Radio (ROW) (India cord)|
|C050910C422A||ePMP 5 GHz Force 300 CSM Radio (India) (India Cord)|
|C050910C521A||ePMP 5 GHz Force 300 CSM Radio (ROW) (China cord)|
|C050910C621A||ePMP 5 GHz Force 300 CSM Radio (ROW) (Brazil cord)|
|C050910C721A||ePMP 5 GHz Force 300 CSM Radio (ROW) (Argentina cord)|
|C050910C821A||ePMP 5 GHz Force 300 CSM Radio (ROW) (ANZ cord)|
|C050910C921A||ePMP 5 GHz Force 300 CSM Radio (ROW) (South Africa cord)|
|C050910CZ21A||ePMP 5 GHz Force 300 CSM Radio (ROW) (No PSU)|
|ANTENNA CONNECTORS||5 GHZ SPECIFICATION|
|Frequency Range||4.910– 5.970 MHz|
|Connectors||2 x 50 ohm, RP-SMA (Reverse Polarity SMA) Compatible with RF-Elements TwistPort™ Adaptor for ePMP|

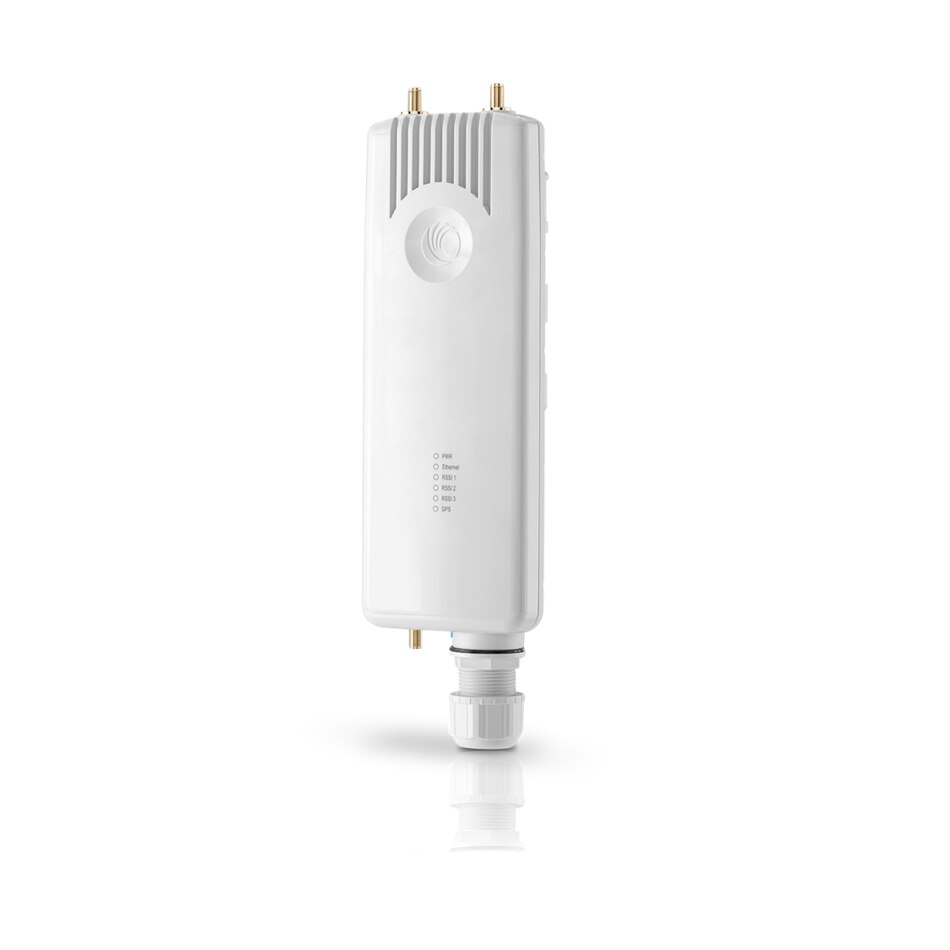

Cambium Networks C050910C124A (International Version)
ePMP Force 300 CSM Radio, 5GHz Connectorized Subscriber Module, IC. US power cord
Wireless service providers and enterprises around the g lobe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.llAC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300 CSM offers a versatile solution enabling a wide variety of deployment models including high-gain parabolic dishes and narrow-beam horns for point to point applications and, with the ePMP 3000 Access Point, point to multipoint operations.
- Cambium Networks' ePMP Force 300 CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300 CSM supports channel size configurations from 20 MHz up to 80 MHz and
- modulations up to 256 OAM.
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services VoIP, video, data - and provides three levels of traffic priority.
- Long deployment range is enabled by up to 27dBm of transmit power and connectorized antenna ports.
- The Force 300 CSM offers deployment versatility with options for parabolic dishes and compatibility with the RF Elements Twistport'" ePMP adaptor.
- Installation is a breeze with the easy to install mount, capable of pole and wall mounting.
