  • Cambium PTP 820S Radio 6HGHz, TR150A, Ch1W3, Lo, 6875-6950MHz

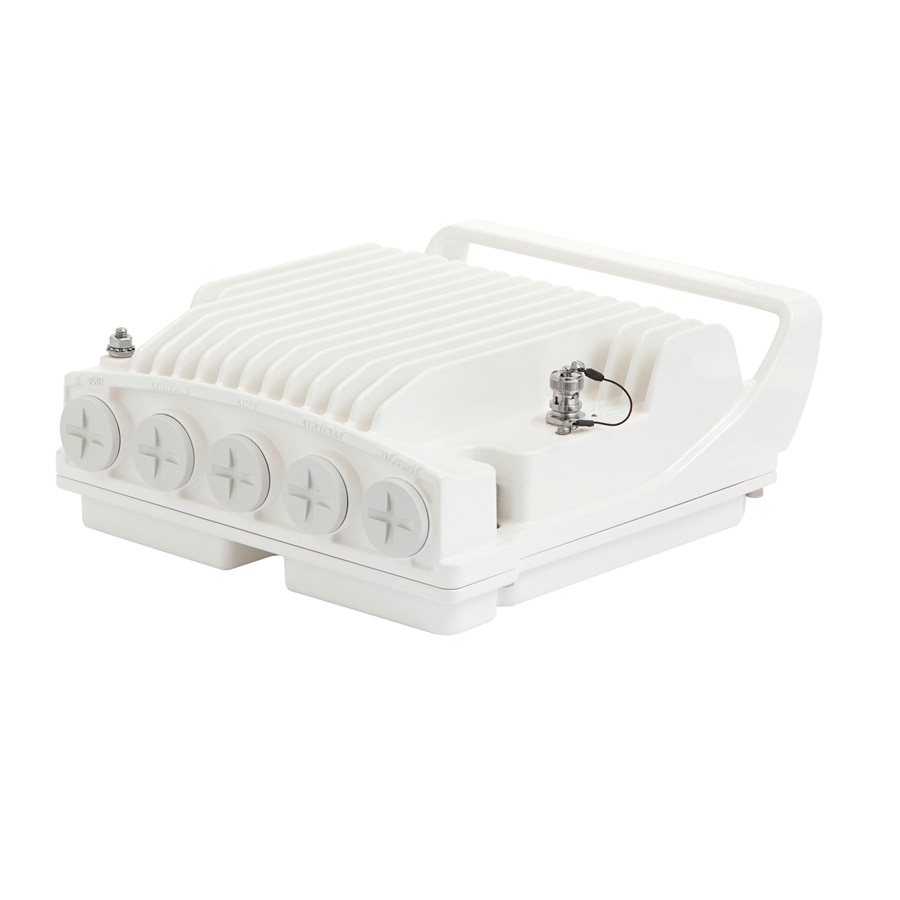

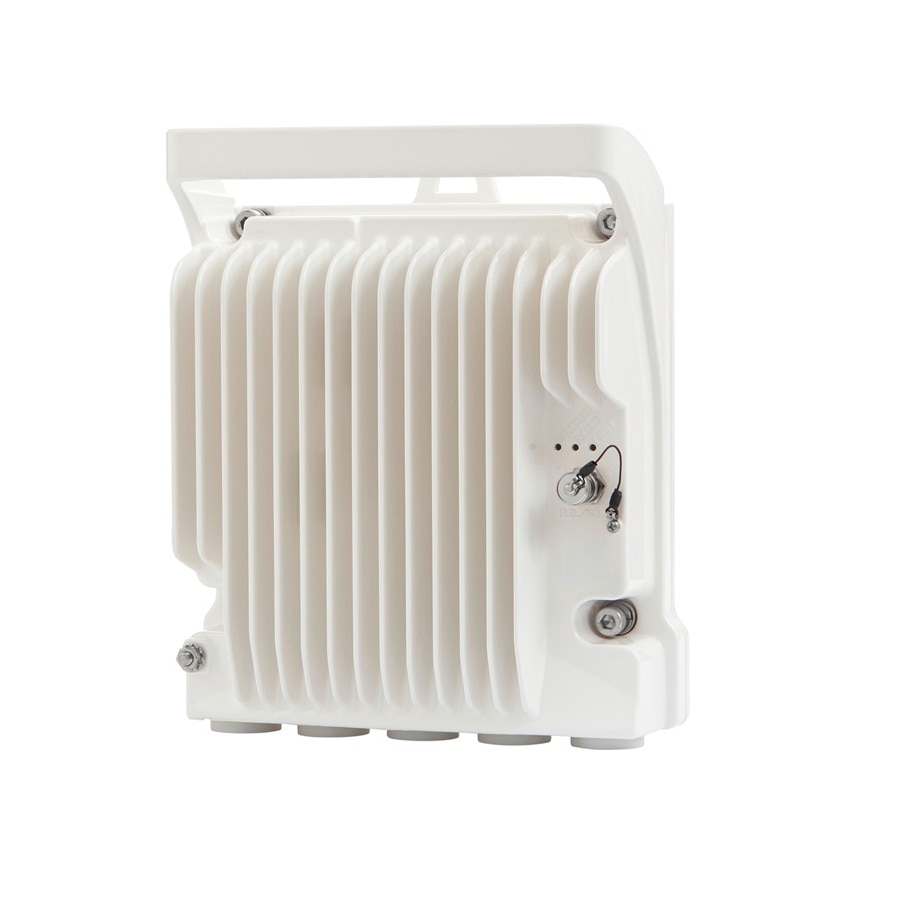

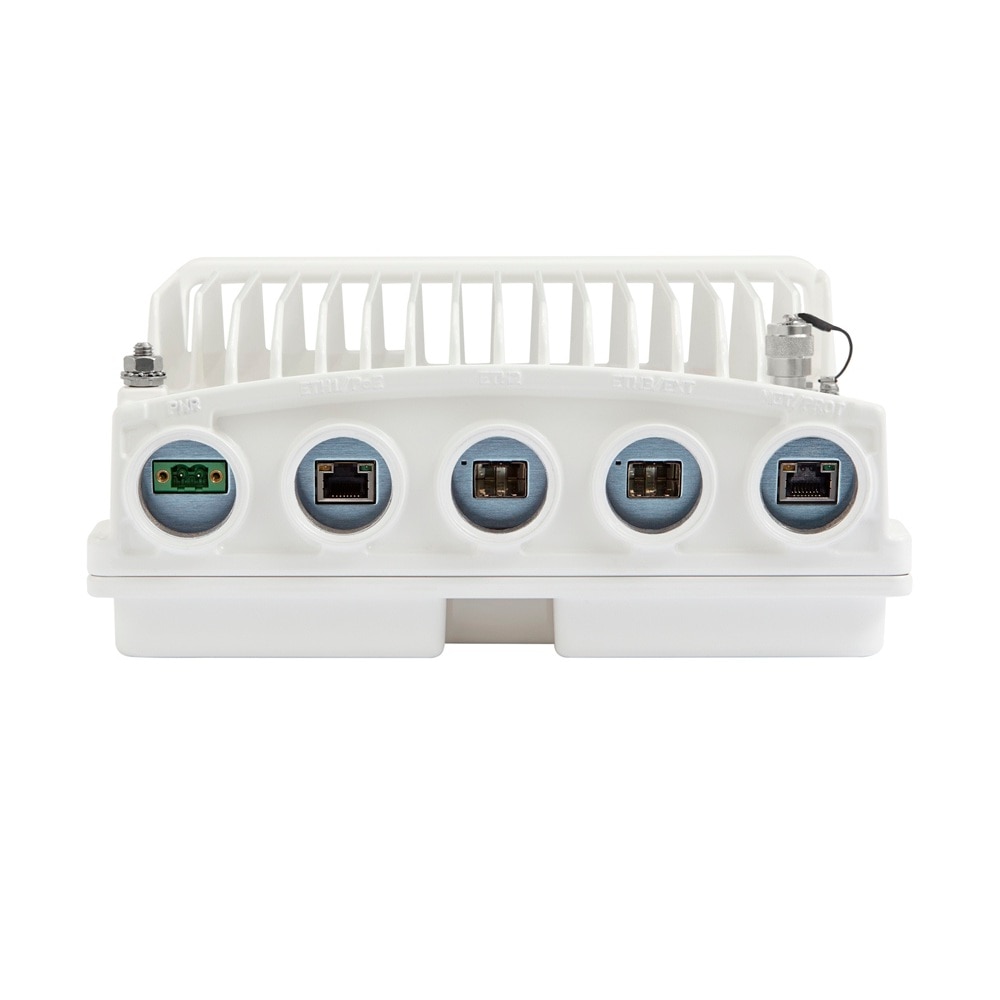

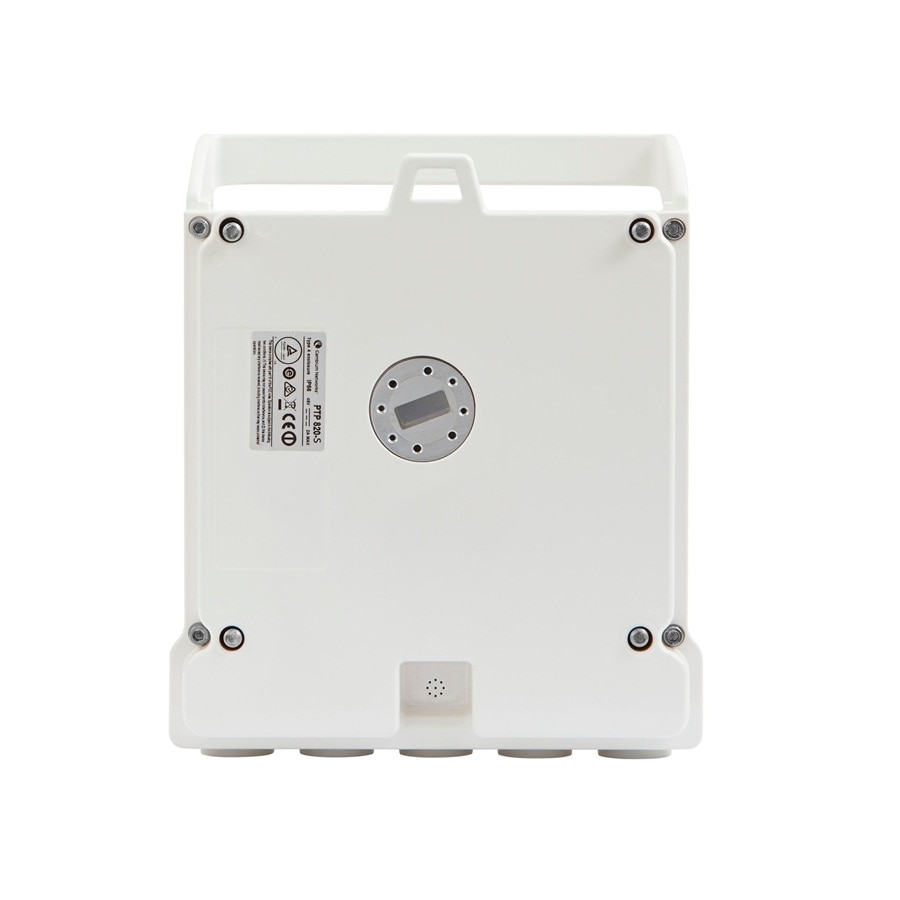

Cambium PTP 820S Radio 6HGHz, TR150A, Ch1W3, Lo, 6875-6950MHz

(0) No Reviews yet
  • SKU: C060082B028A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for availabilityEmail me when this product is in stock!
$3,500.00

Specifications C060082B028A

radio model TR150A Ch1W3,lo 6875-6950MHz
power supply included (Y/N) N
single or complete terminal single terminal
radio series PTP820S
frequency 6 GHz
max ethernet capacity 605 mbps
max TDM capacity none
software upgrade (Y/N) Y
antenna interface proprietary
TX power (dBm) 26 dBm
power supply requirements 48 VDC
Depth 14.5"
Width 12.5"
Height 7"
Weight 13.23 LB

Cambium Networks C060082B028A

PTP 820S Radio 6HGHz, TR150A, Ch1W3, Lo, 6875-6950MHz

PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution. Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options. Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
