Cambium PTP 820S Radio 6HGHz, TR160A, Ch1W6, Lo, 6537.5-6612.5MHz

  • SKU: C060082B032A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!

(click to select)

Specifications C060082B032A

Radio ModelTR160A, Ch1W6, Lo, 6537.5-6612.5MHz
Licensed Radio Series PTP 820S
Network Protocol IP
Broadband System Configuration All Outdoor
Broadband Frequency Band 6 GHz
Frequency Range6537.5-6612.5MHz
Sub Band Hi
Data Rate 605 Mbit/s
Maximum Data Rate 833 Mbit/s
Carrier Aggregation Single Carrier
Modulation QPSK to 2048 QAM w/ACM

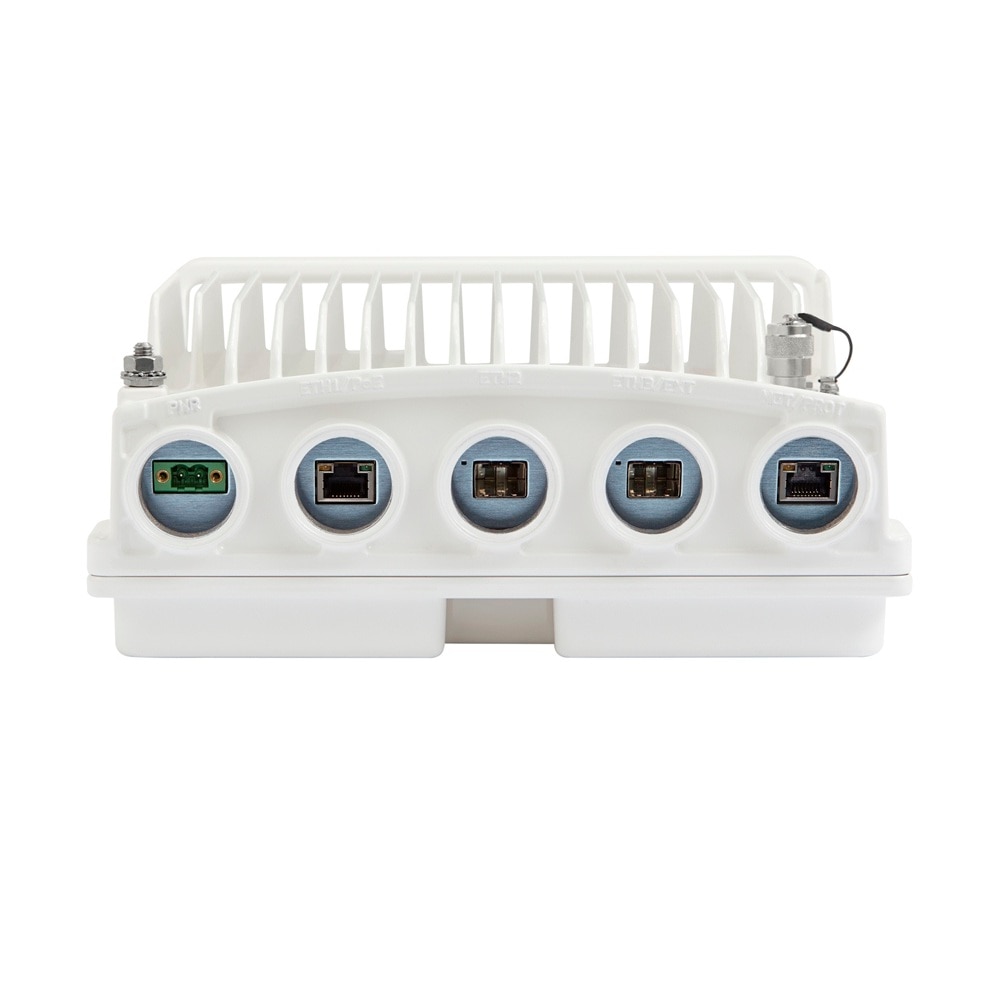

Interface 1 x 10/100/1000Base-T and 1x1000base-X or 10/100/1000Base-T
Security/Encryption Not Specified
Compression No
Proprietary Antenna Interface Not Specified
Operating Voltage 48VDC
Channel Bandwidth 28,56,30,40,50,60,80 MHz
Temperature Range -33-55 deg C

Cambium Networks C060082B032A

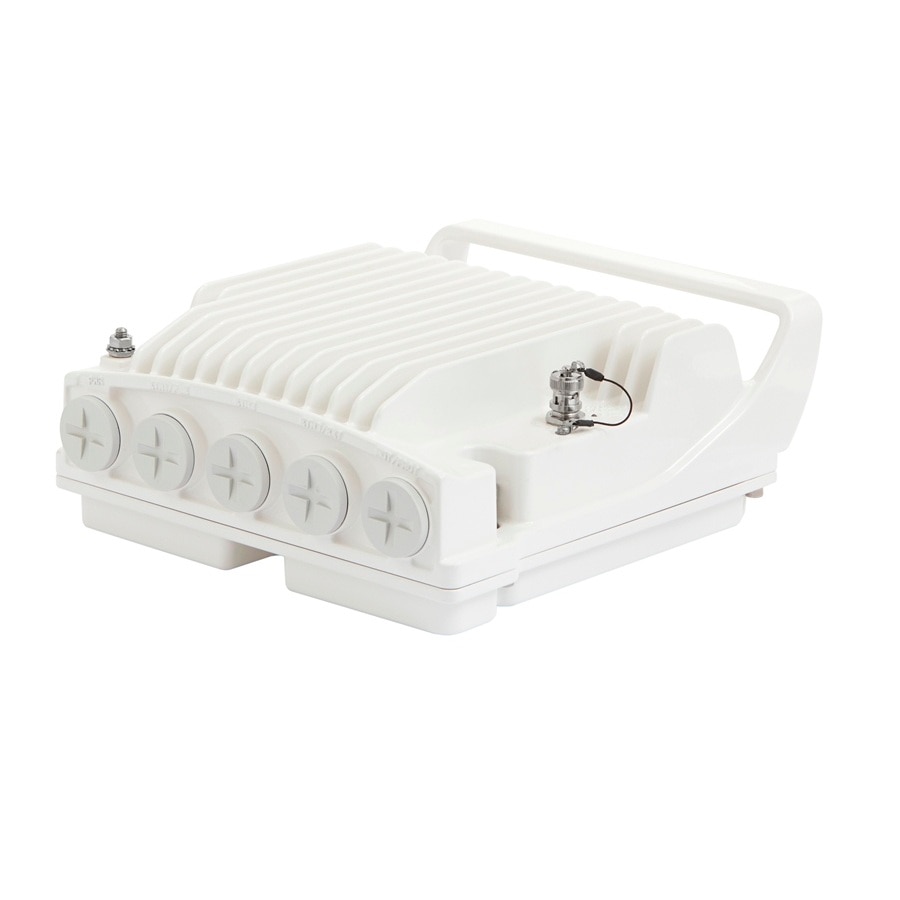

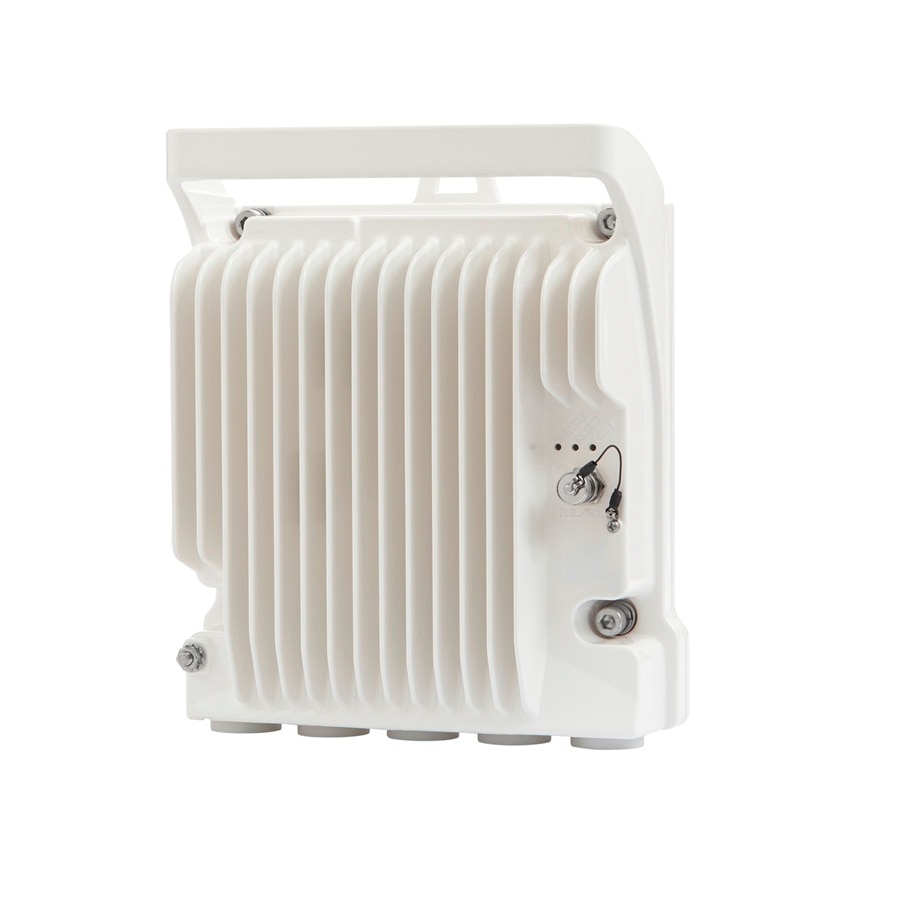

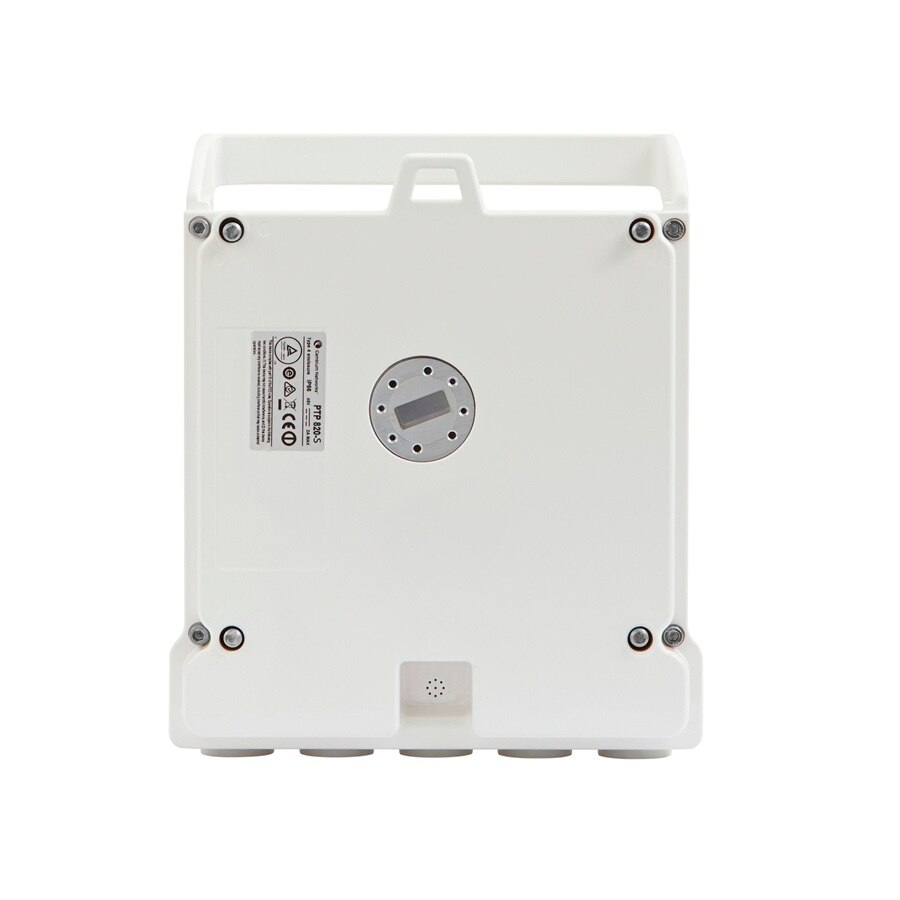

PTP 820S Radio 6HGHz, TR160A, Ch1W6, Lo, 6537.5-6612.5MHz

PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution. Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options. Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.

PTP 820 Product Series Highlights

  • Licensed frequency bands 6-42GHz
  • Up to 2048 QAM, with 11-step hitless and errorless Adaptive Coding & Modulation (ACM) for high reliability
  • Up to 80 MHz bandwidth supported
  • Multi-gigabits radio capacity with high spectral efficiency
  • TDM and/or packet supporting legacy services and evolution to all-packet
  • Integrated Ethernet Switch, MEF Carrier Ethernet 2.0 compliant, MPLS-TP-ready
  • Header De-duplication for additional capacity boost
  • Intelligent service-centric management utilizing Hierarchical QoS and advanced OA&M capabilities
  • Carrier-grade service resiliency (G.8032, MSTP)
  • ITU-T Y.1731 Performance Management - MEF 35
  • Integrated synchronization solution: Native/SyncE/IEEE 1588v2
  • Lowest power consumption with adaptive green mode
  • Low Latency with unique frame cut-through for latency sensitive services
  • Industry leading system Gain
