Cambium PTP 820C Radio 7GHz, TR161A, Ch4W5, Hi

(0)No Reviews yet
US$‎4,620.00
  • SKU: C070082B067A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download

Out of Stock

Call for Availability

Product Information

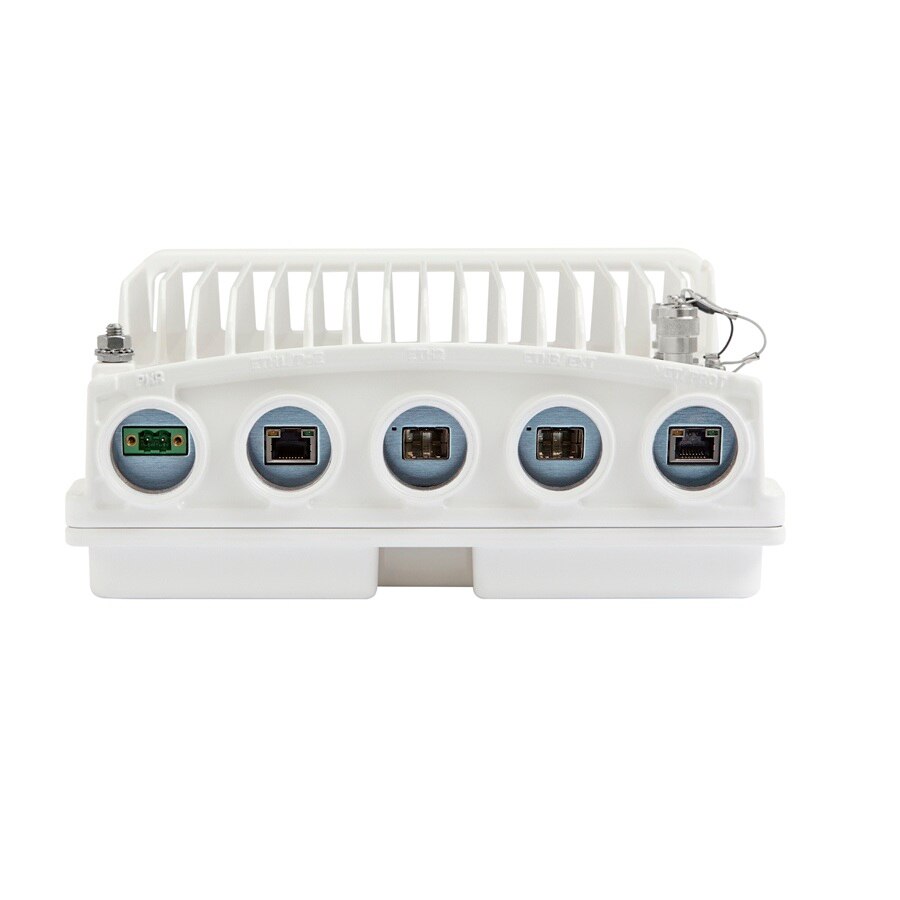

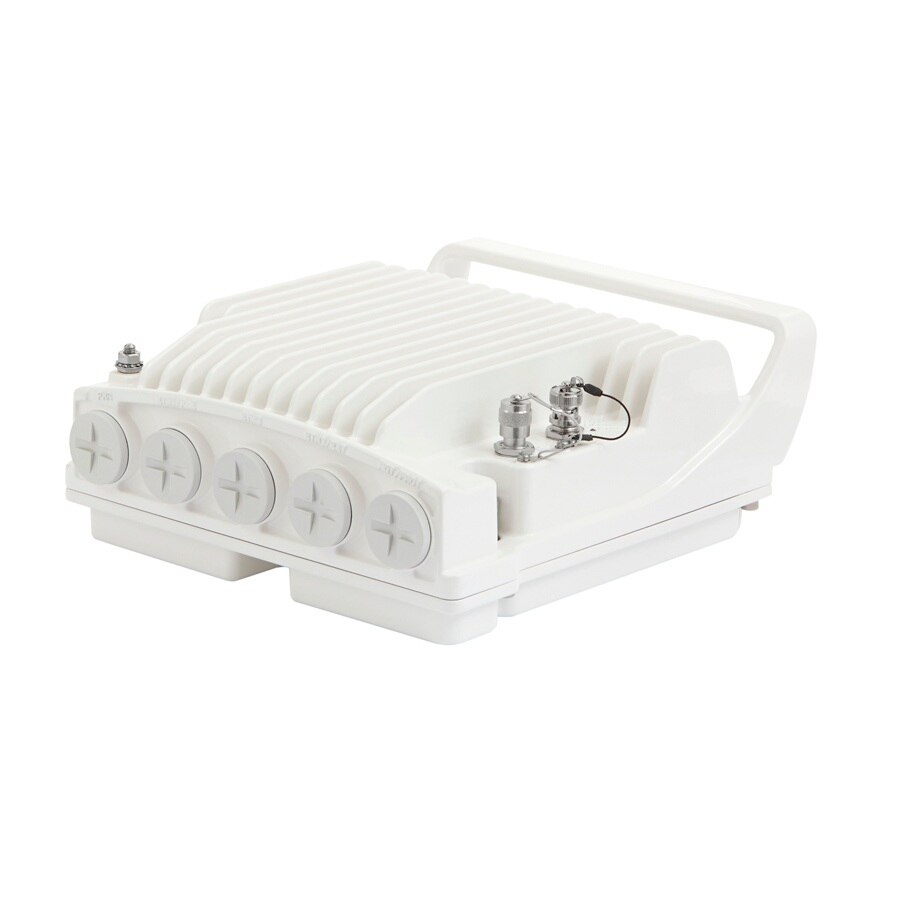

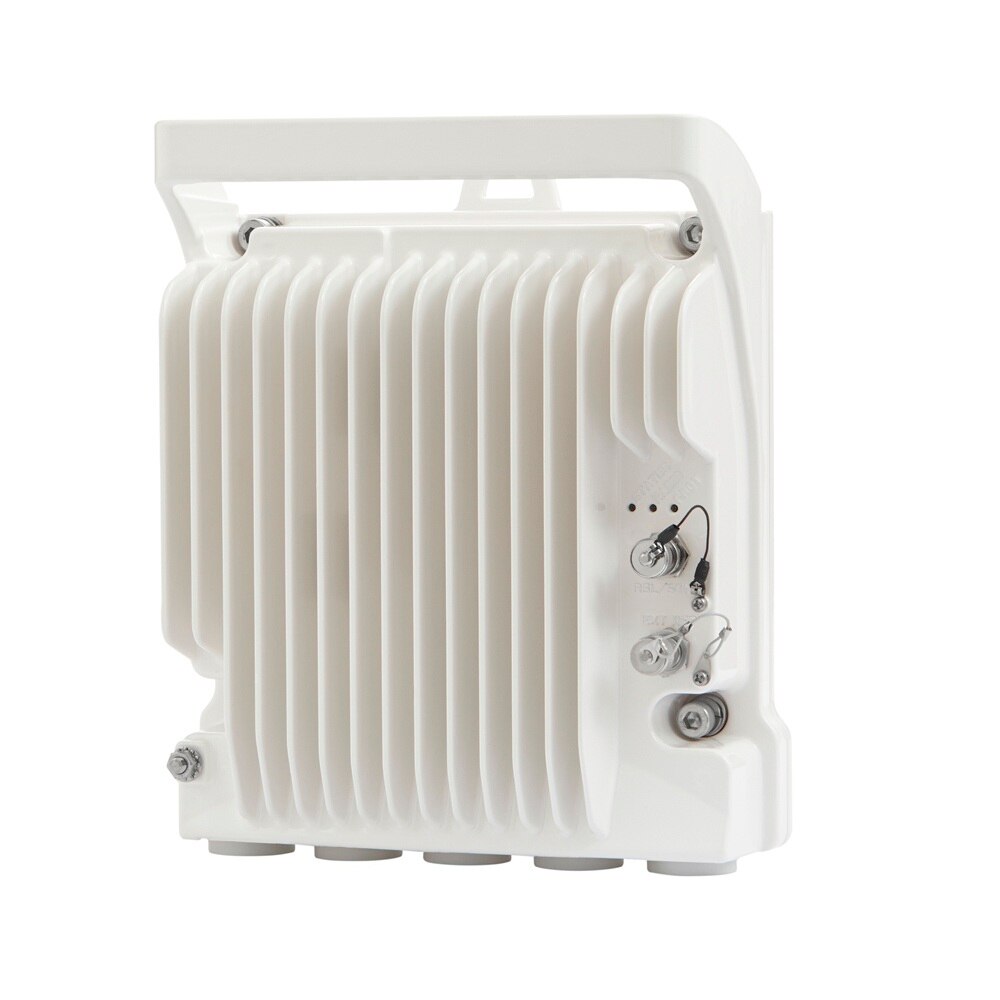

Cambium Networks C070082B067A

PTP 820C Radio 7GHz, TR161A, Ch4W5, Hi

PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution.

Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options.

Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.

Specifications

Specifications C070082B067A

Licensed Radio Series PTP 820C
Supported Frequency 6 - 42 GHz
Role in the Network Compact all outdoor w/multi-core
Transport Technology All packet
Modulation QPSK to 2048 QAM w/ACM
Channel Size 28,56,30,40,50,60,80 MHz
Capacity (Layer 2) 1.21 Gbps
Capacity with Multi-Layer Compression 1.66 Gpbs
Configuration 1+0 to 4+0, 1+1/2+2 HSB, 1+0 E/W
LOS MIMO Yes, 4x4 or 2x2
Ethernet Interface 1 x 10/100/1000Base-T 1x1000base-X or 10/100/1000Base-T
Management Interface 1 x 10/100 Base-T
External Alarm None
Dimensions (HxWxD - mm) 230 x 233 x 98
Environmental -33C to +55C (-45C to +60C extended)
Power Input -48 VDC
PoE Injector Power Input -48 VDC or +24 VDC
Maximum Power Consumption Multi-Core Operation: 6 GHz: 70W 7-11 GHz: 65W 13-42 GHz: 55W
