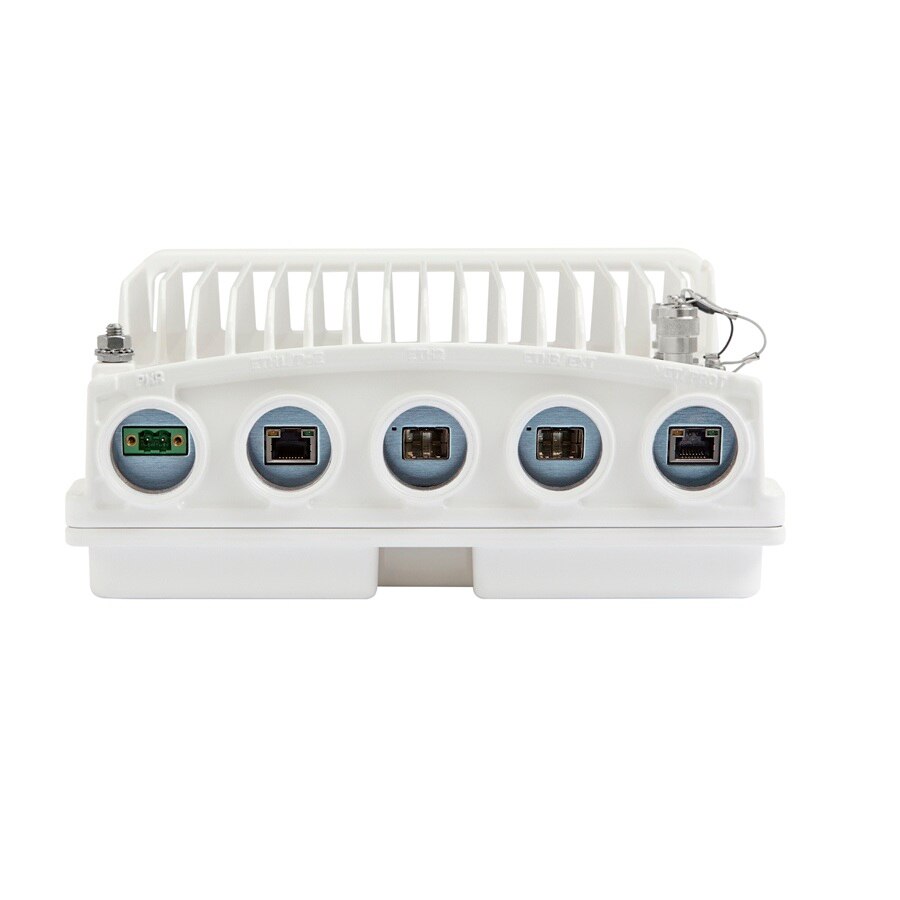

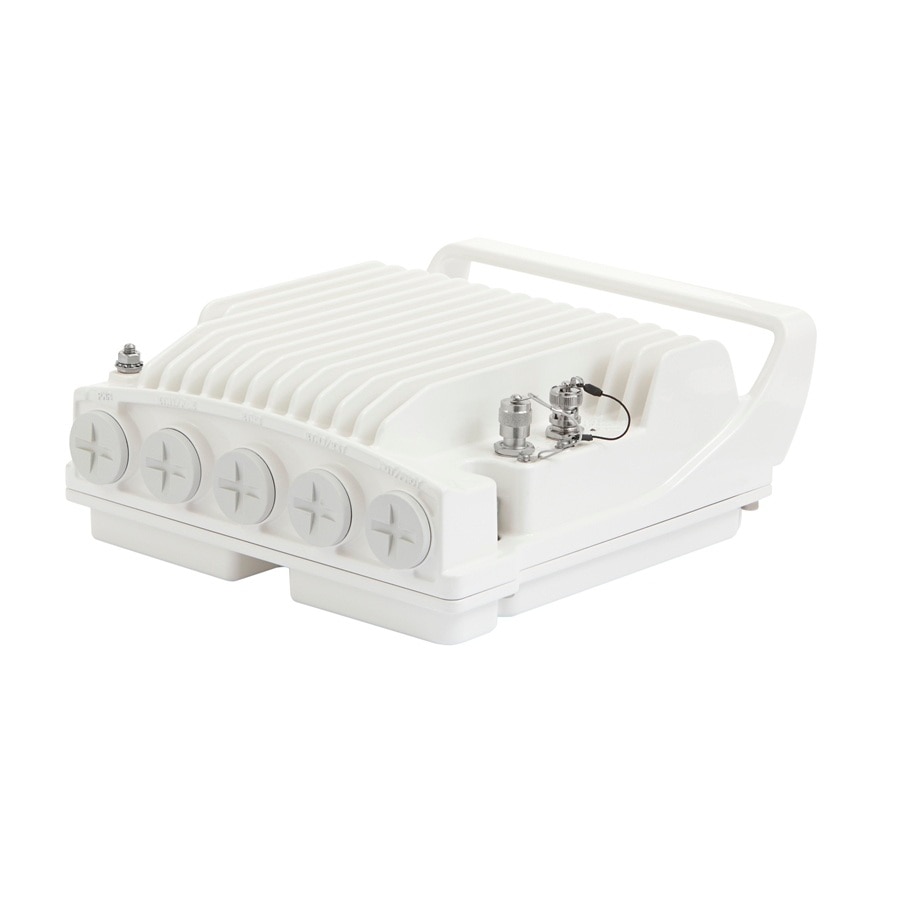

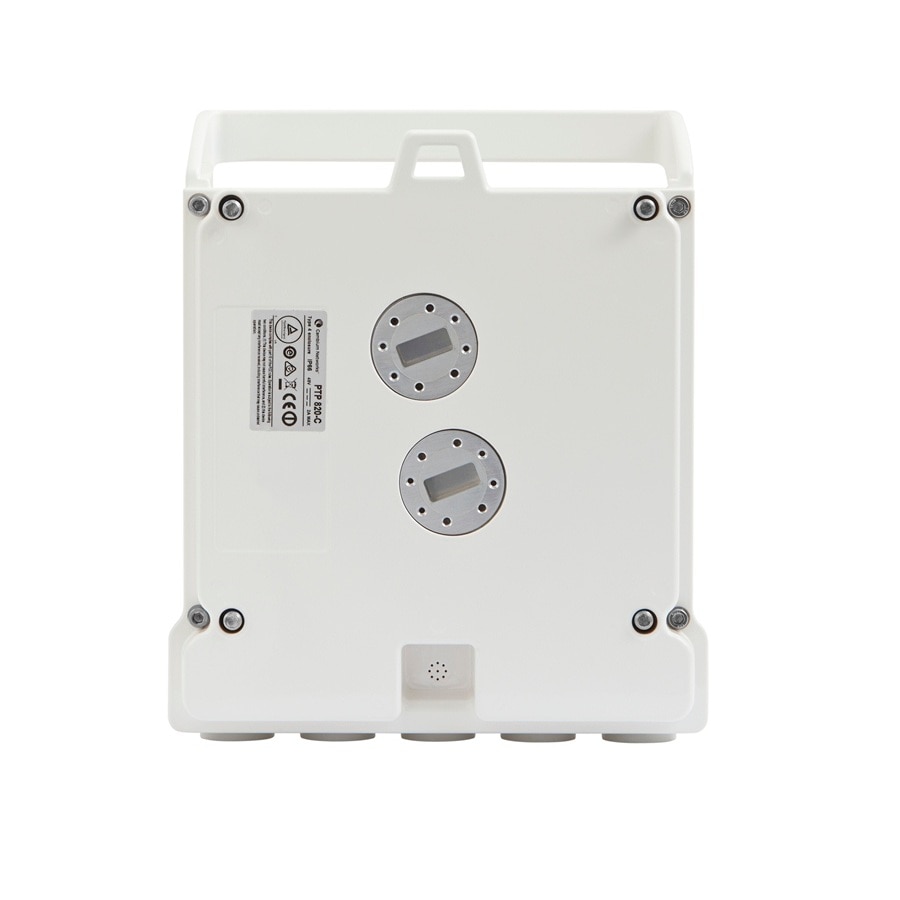

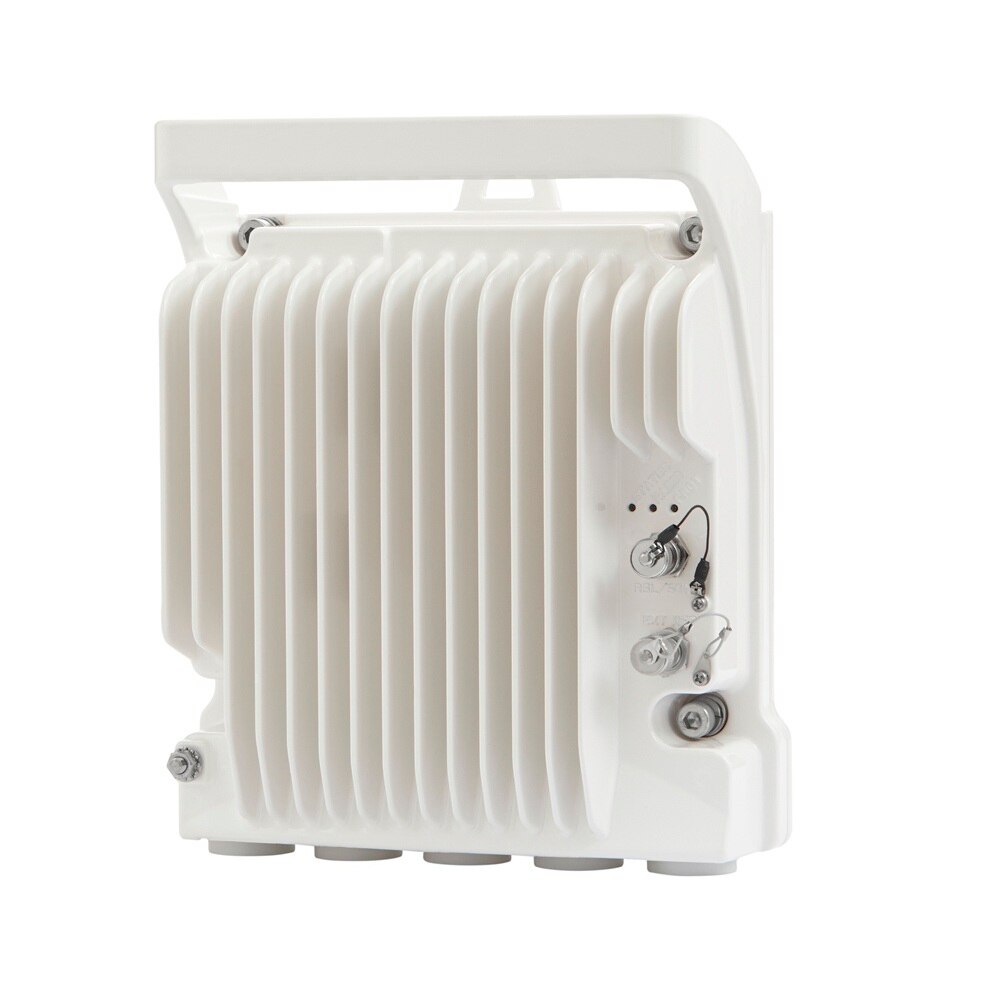

Cambium PTP 820C Radio 7GHz, TR161A, Ch4W5, Lo
- SKU: C070082B068A
- Manufacturer: Cambium Networks
- Data Sheet: Download
- Availability: Direct Ship Item Item usually ships same day direct from Manufacturer Email me when this product is in stock!
Product Information
- Specifications
- Description
Specifications C070082B068A
| Licensed Radio Series | PTP 820C |
| Supported Frequency | 6 - 42 GHz |
| Role in the Network | Compact all outdoor w/multi-core |
| Transport Technology | All packet |
| Modulation | QPSK to 2048 QAM w/ACM |
| Channel Size | 28,56,30,40,50,60,80 MHz |
| Capacity (Layer 2) | 1.21 Gbps |
| Capacity with Multi-Layer Compression | 1.66 Gpbs |
| Configuration | 1+0 to 4+0, 1+1/2+2 HSB, 1+0 E/W |
| LOS MIMO | Yes, 4x4 or 2x2 |
| Ethernet Interface | 1 x 10/100/1000Base-T 1x1000base-X or 10/100/1000Base-T |
| Management Interface | 1 x 10/100 Base-T |
| External Alarm | None |
| Dimensions (HxWxD - mm) | 230 x 233 x 98 |
| Environmental | -33C to +55C (-45C to +60C extended) |
| Power Input | -48 VDC |
| PoE Injector Power Input | -48 VDC or +24 VDC |
| Maximum Power Consumption | Multi-Core Operation: 6 GHz: 70W 7-11 GHz: 65W 13-42 GHz: 55W |
Cambium Networks C070082B068A
PTP 820C Radio 7GHz, TR161A, Ch4W5, Lo
PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution.
Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options.
Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
