  • Cambium PTP 820S Radio 11GHz, TR500, Ch1W6, Hi, 11185-11485MHz

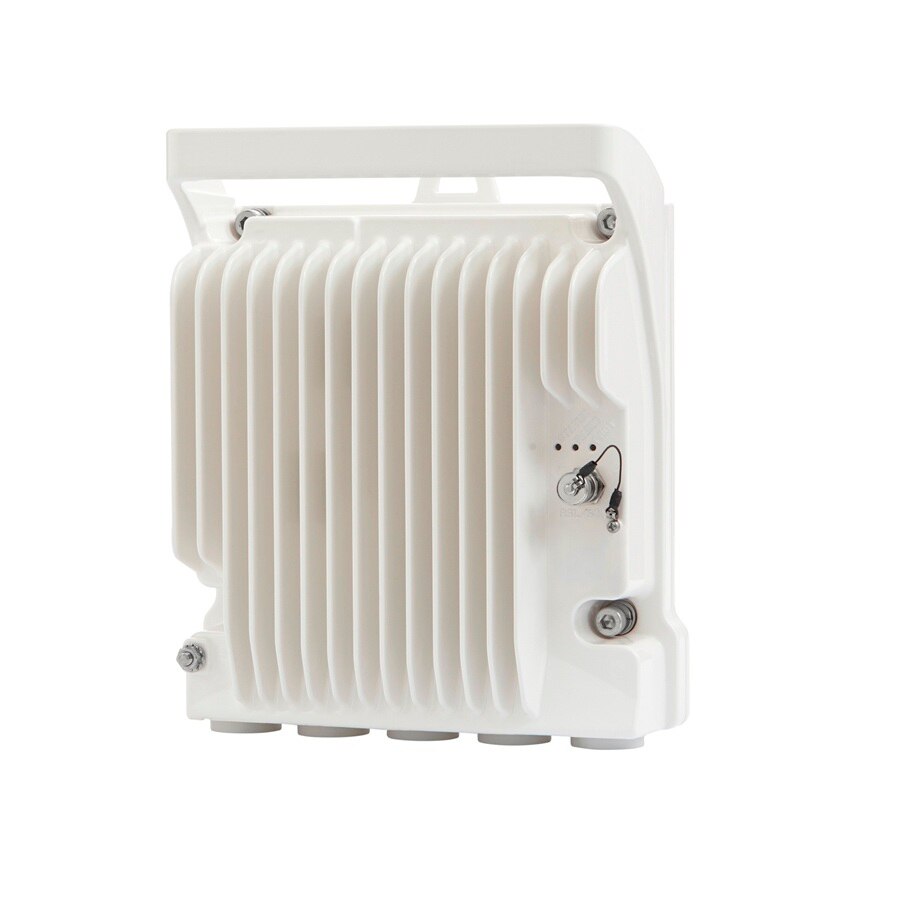

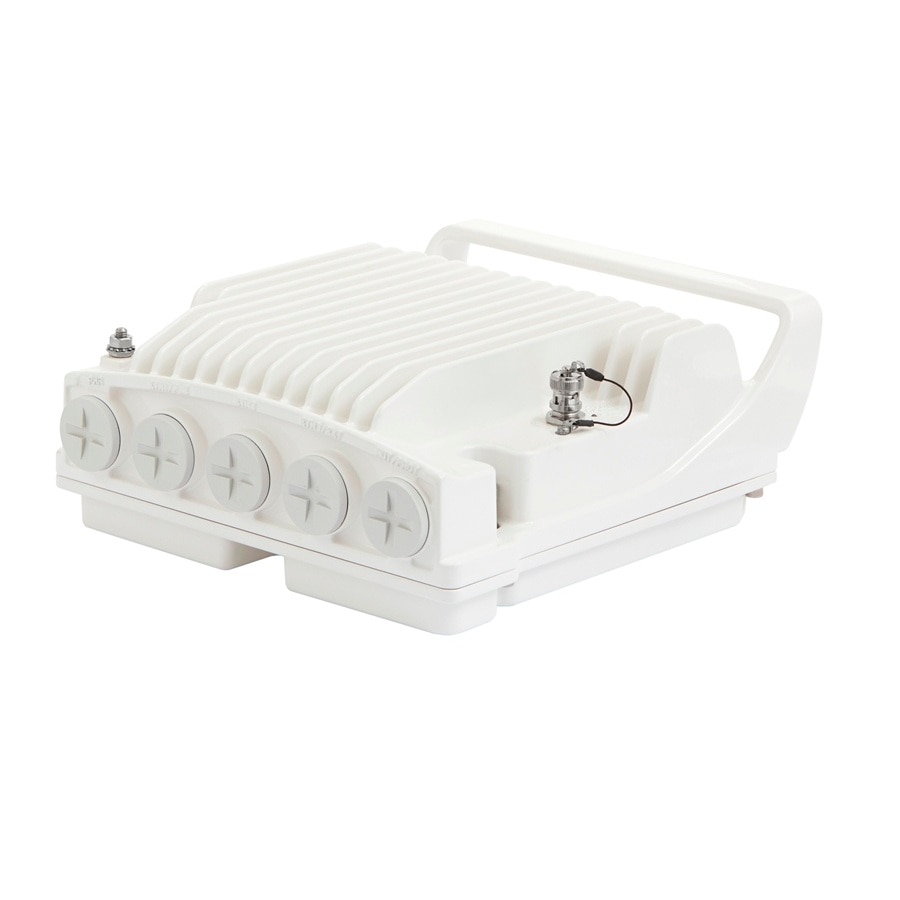

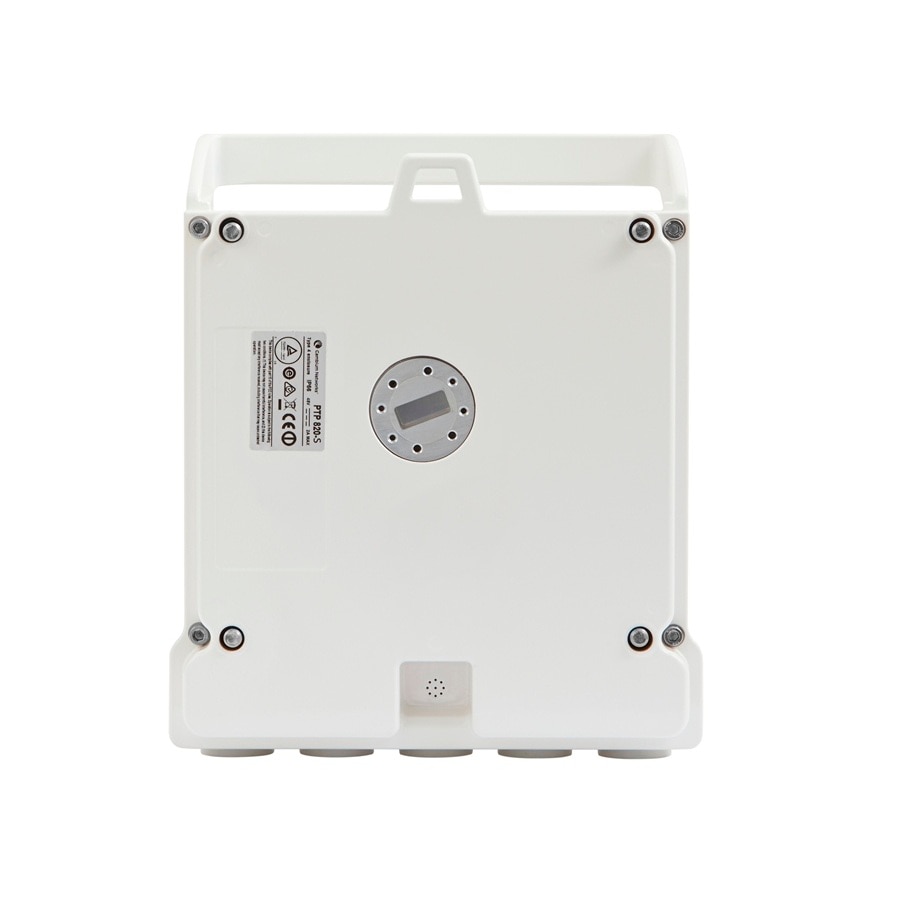

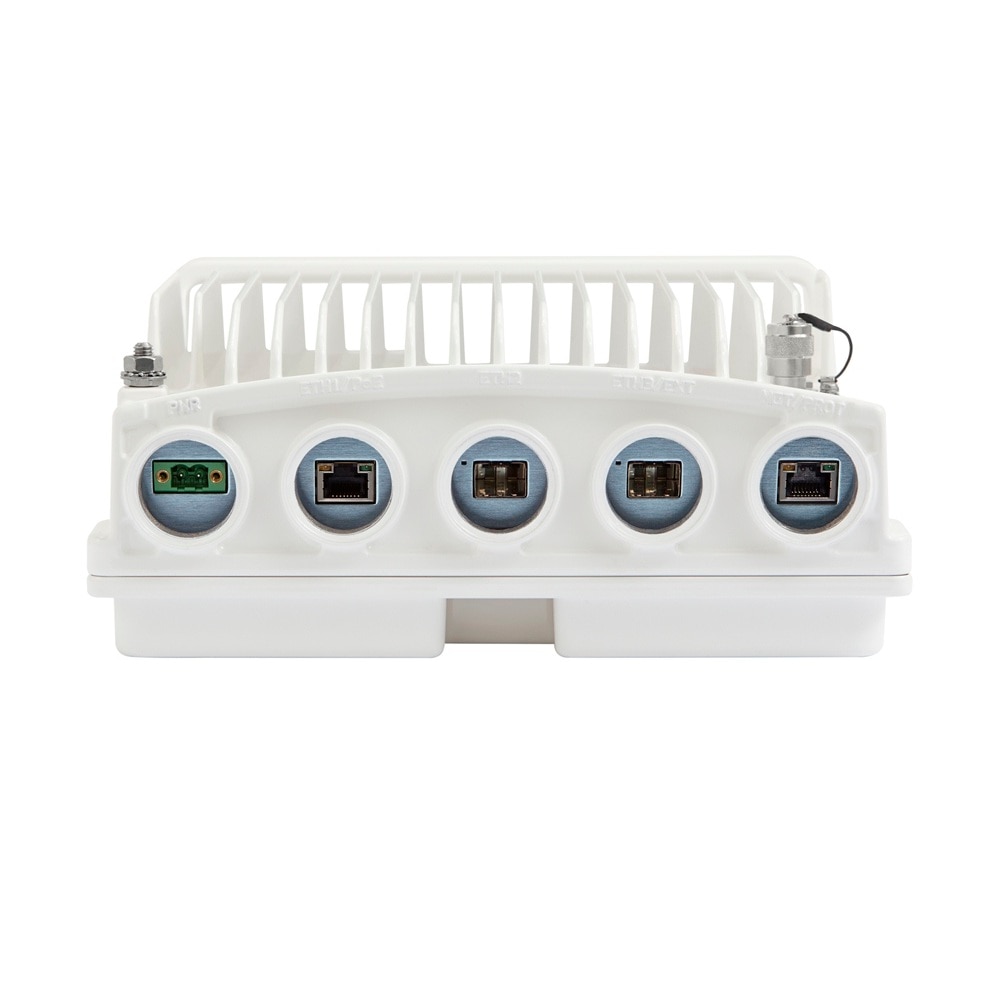

Cambium PTP 820S Radio 11GHz, TR500, Ch1W6, Hi, 11185-11485MHz

(0) No Reviews yet
  • SKU: C110082B001A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Quick Installation Guide: Download
  • Availability: Direct Ship Item Item usually ships same day direct from Manufacturer Email me when this product is in stock!
$3,500.00

Specifications C110082B001A

Frequency Range11GHz
Configurations1+0, 1+1 HSB
Radio FeaturesProtection: 1+1 HSB, High spectral utilization: QPSK to 2048 QAM w/ACM
Transport TechnologyAll packet
TDM InterfaceNone
ModulationQPSK to 2048 QAM w/ACM
L2 Capacity605Mbps
Capacity with Multi-Layer Compression833Mbps
Configuration1+0, 1+1 HSB
LOS MiMONo
XPICNo
Management Interface1 x 10/100 Base-T
External AlarmNone
Environment-27.4 to 131deg F (-33 to 55deg C)
Power Input-48VDC
PoE Injector Power Input-48VDC or +24VDC
Power Consumption32W

Cambium Networks C110082B001A

PTP 820S Radio 11GHz, TR500, Ch1W6, Hi, 11185-11485MHz

PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies creating a superior microwave transport solution.

Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options.

Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
