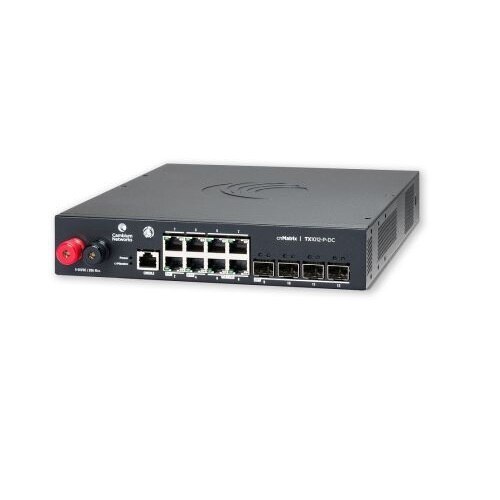

Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, USA Only
- SKU: MXTX1012GxPA21
$1,151.96
+ $41.47 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks MXTX1012GxPA21
cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+, USA Only
Specifications
| Throughput | 96Gbps |
| Forwarding Rate in Mpps (64Byte Packets) | 120 |
| 10/100/1000Mbps RJ45 Ports | 8 |
| 1Gbps Fiber Ports (SFP) | 0 |
| 10Gbps Fiber Ports (SFP+) | 4 |
| PoE+ Enabled Ports 802.3af/at/bt | 8 |
| Low Voltage Passive PoE (24V) | 4 |
| High Power 4PPoE (up to 90W) | 2 |
| Serial Console | Yes |
| Rack Mount Kit | Yes, optional |
| Internal Fans | 1 |
| Reset Button* | Yes |
| MAC Address Table Size | 16K |
| Flash Storage | 128MB |
| DRAM | 512MB |
| VLANs | 4K |
| QinQ* | Yes |
| LACP/Trunking | 8 LAGs / 8 links per LAG |
| QoS Priority Queues | 8 |
| PVRST | 32 |
| Ingress/Egress ACL | 128 |
| Static ARP Entries | 512 |
| ARP Entries | 512 |
| Static Routes | 64 |
| Dynamic Routing | 512 |
| IGMP Multicast Groups | 256 |
| Policy Based Automation | Yes |
* Feature to be included in a future release.
