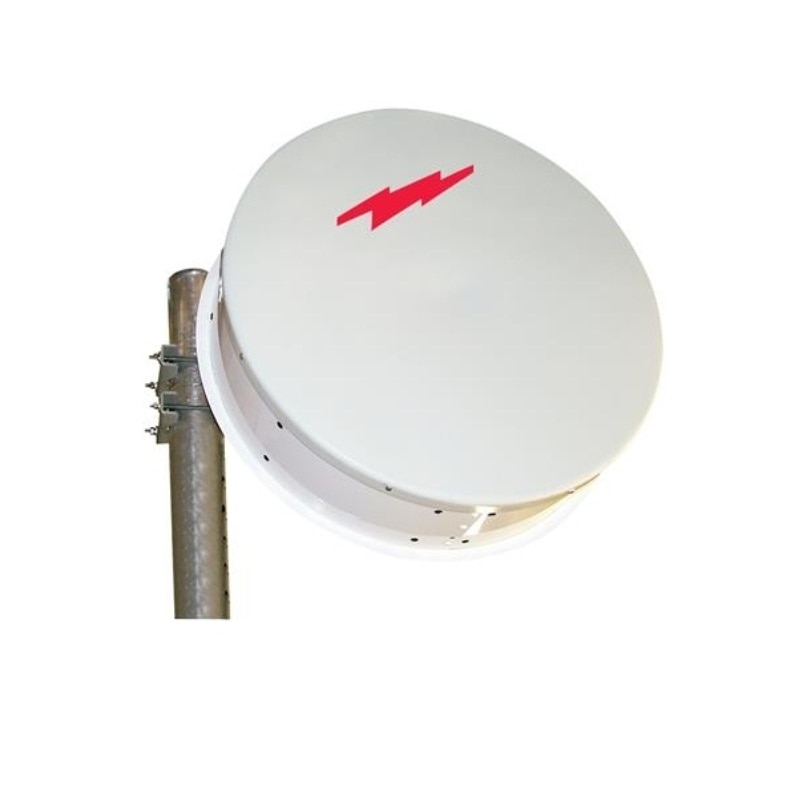

Cambium PTP 820 6' ANT, SP, 6GHz, RFU-C TYPE & Std UDR70 - Andrew
US$5,528.25
- SKU: N060082D132A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks N060082D132A
PTP 820 6' ANT, SP, 6GHz, RFU-C TYPE & Std UDR70 - Andrew
Specifications
Specifications N060082D132A
| General Specifications | |
| Antenna | Type VHLP ValuLine ® High Performance Low Profile Antenna, singlepolarized |
| Diameter, nominal | 1.8 m | 6 ft |
| Polarization | Single |
| Electrical Specifications | |
| Beamwidth, Horizontal | 1.8 ° |
| Beamwidth, Vertical | 1.8 ° |
| Cross Polarization Discrimination (XPD) | 30 dB |
| Electrical Compliance | Brazil Anatel Class 2 | Canada SRSP 307.1 | Canada SRSP 307.7 Part B | ETSI 302 217 Class 3 | US FCC Part 101B1 | US FCC Part 101B2 |
| Front-to-Back-Ratio | 65 dB |
| Gain, Low Band | 37.8 dBi |
| Gain, Mid Band | 39.0 dBi |
| Gain, Top Band | 39.8 dBi |
| Operating Frequency Band | 5.925 – 7.125 GHz |
| Radiation Pattern Envelope Reference (RPE) | 7138A |
| Return Loss | 17.7 dB |
| VSWR | 1.30 |
| Mechanical Specifications | |
| Fine Azimuth Adjustment | ±20° |
| Fine Elevation Adjustment | ±15° |
| Mounting Pipe Diameter | 115 mm | 4.5 in |
| Net Weight | 62 kg | 137 lb |
| Side Struts, Included | 1 inboard |
| Side Struts, Optional | 1 inboard |
| Wind Velocity Operational | 200 km/h | 124 mph |
| Wind Velocity Survival Rating | 200 km/h | 124 mph |
