CommScope Stainless Steel Angle Adapter Kit, 3/8" Tapped Hole, 10/Pkg
- SKU: AND31768A
$87.34
- Manufacturer: CommScope
- Data Sheet: Download
Product Information

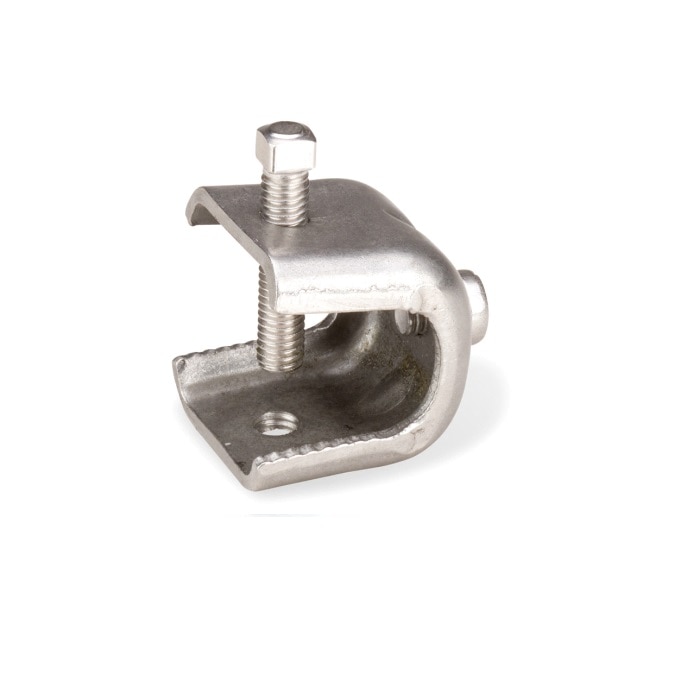

CommScope AND31768A
Stainless Steel Angle Adapter Kit, 3/8" Tapped Hole, 10/Pkg
Specifications
Specifications AND31768A
| Product Type | Adapter |
| Inside Length | 22.23 mm | 0.88 in |
| Inside Width | 22.23 mm | 0.88 in |
| Outside Length | 44.96 mm | 1.77 in |
| Outside Width | 49.81 mm | 1.96 in |
| General | |
| Adapter Type | Angle adapter |
| Material Type | Stainless steel |
| Mechanical | |
| Installation Torque, maximum | 15.0 ft lb |
| Installation Torque, minimum | 11.0 ft lb |
| Material Thickness | 4.191 mm | 0.165 in |
| Maximum Loading | Triple stack, 1-5/8 in cable |
| Mounting | 3/8 in tapped hole |
| Dimension | 9" x 5" x 3" inch |
| Weight | 5 lb |
| Regulatory Compliance/Certifications | |
| RoHS 2011/65/EU | Compliant |
| China RoHS SJ/T 11364-2006 | Below Maximum Concentration Value (MCV) |
| ISO 9001:2008 | Designed, manufactured and/or distributed under this quality management system |
