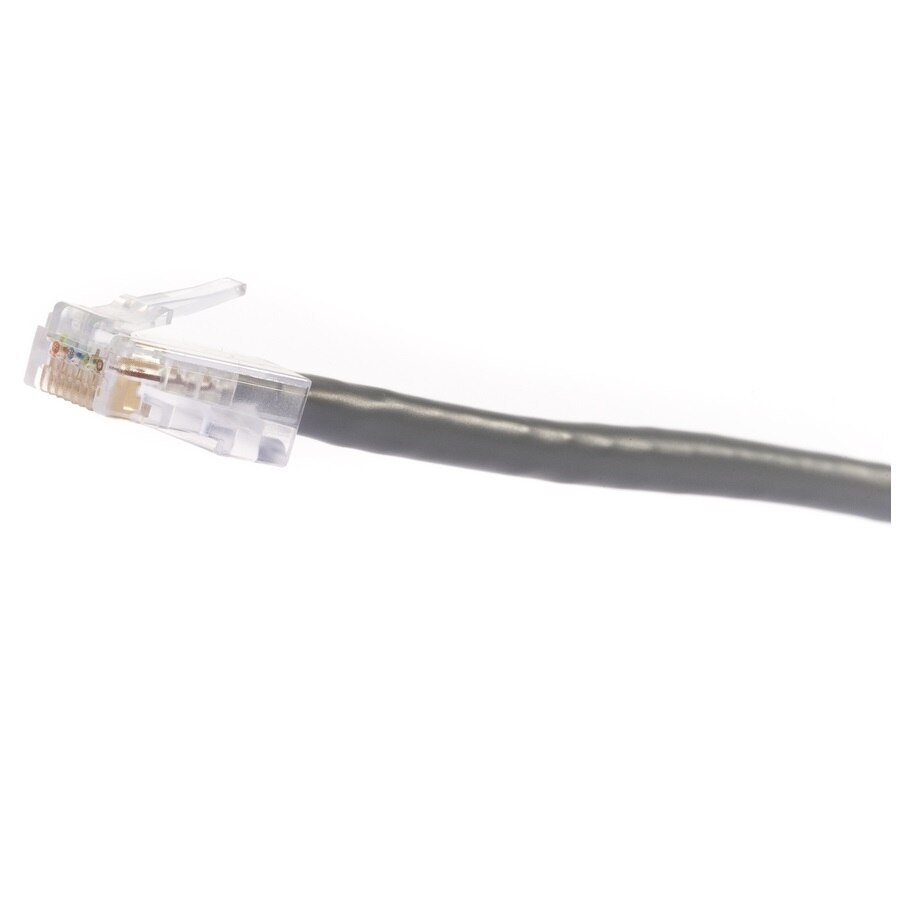

CommScope SYSTIMAX PowerSUM D8PS Stranded Cordage Modular Patch Cord, Dark Gray Jacket, 25 FT
- SKU: CPC6642-03F025
$21.26
- Manufacturer: CommScope
- Data Sheet: Download
Product Information
CommScope CPC6642-03F025
SYSTIMAX PowerSUM D8PS Stranded Cordage Modular Patch Cord, Dark Gray Jacket, 25 FT
The GS8E modular patch cord family is the latest in a long line of innovative designs from Systimax. Unmatched electrical performance and exceeds TIA/EIA and ISO/IEC Cat6/Class E specifications. Backward compatible with Category 6, 5e, and 5 connectors.
Specifications
Specifications CPC6642-03F025
| General | |
| Dimension | 10" x 10" x 2" inch |
| Weight | 1.1 lbs |
| ANSI/TIA Category | 5e |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black / Blue / Dark gray / Light blue / Lilac / Orange / Red / Spring green / White / Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
| Electrical | |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Material | |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy / Polycarbonate |
| Mechanical | |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
| Environmental | |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | Anatel / ETL / cETL |
