Cyclone Grounding Kit for Shielding and Armored Cables 5mm-26mm (0.19"-1.0") Diameter
- SKU: CYG-GROUNDKIT-UNI
$17.60 $22.00
+ $2.21 Tariff
- Manufacturer: Cyclone
- Data Sheet: Download
Product Information
Cyclone CYG-GROUNDKIT-UNI
Grounding Kit for Shielding and Armored Cables 5mm-26mm (0.19"-1.0") Diameter

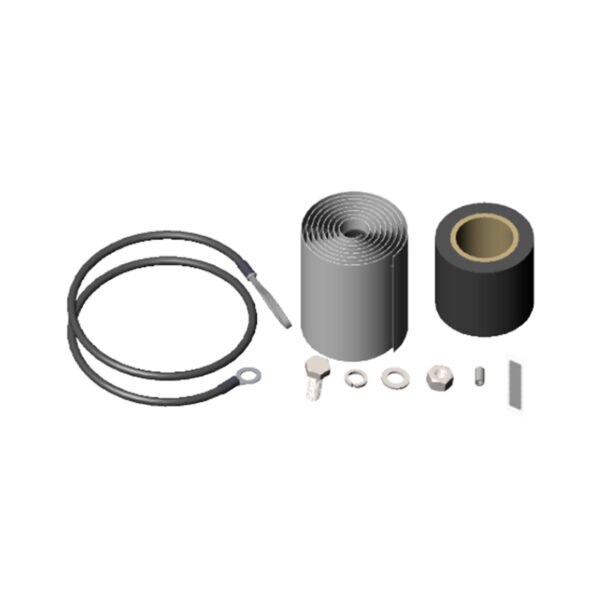

Product Includes:
- Grounding kit
- Hardware
- Lug
- One roll of PVC tape
- One roll of butyl rubber tape
- Silicone grease
Specifications
Specifications CYG-GROUNDKIT-UNI
| General Specifications | |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | AWG 6 |
| Braided Ground Strap Material | Copper, Tin-plated |
| Lug Type | One-hole lug |
| Screw Material | Stainless Steel |
| Flat washer Material | Stainless Steel |
| Spring washer Material | Stainless Steel |
| Nut Material | Stainless Steel |
| Tape Material | PVC & Butyl |
| Dimensions | |
| Bonding Conductor Length | 1 m | 39.37 in |
| Lug Hole Size | M8 |
| Screw Size | M8x25 |
| Suitable Cable OD | 5-26mm |
| Environmental Specifications | |
| Operating Temperature | -40°C to +70 °C (-40 °F to +158 °F) |
| Weatherproofing Method | Butyl and electric tape |
| Electrical Specifications | |
| Contact Transition Resistance | Maximum 10mΩ |
| Packaging and Weights | |
| Height, Packed | 320 mm | 12.60 in |
| Width, Packed | 220 mm | 8.66 in |
| UOM | Kit |
| Packaging | Bag |
| Weight, Gross | 0.366 kg | 0.806 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
