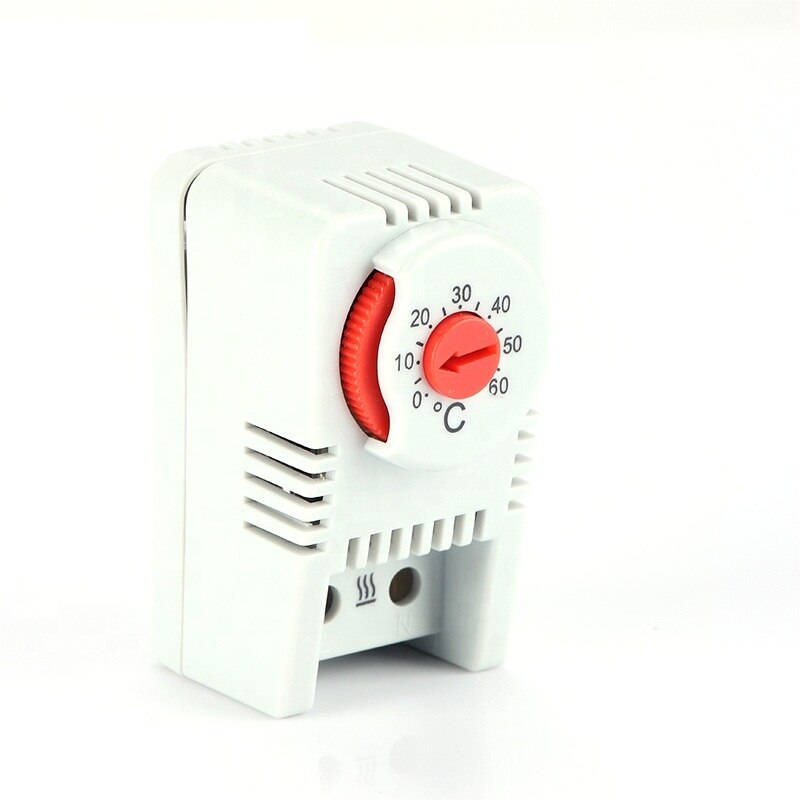

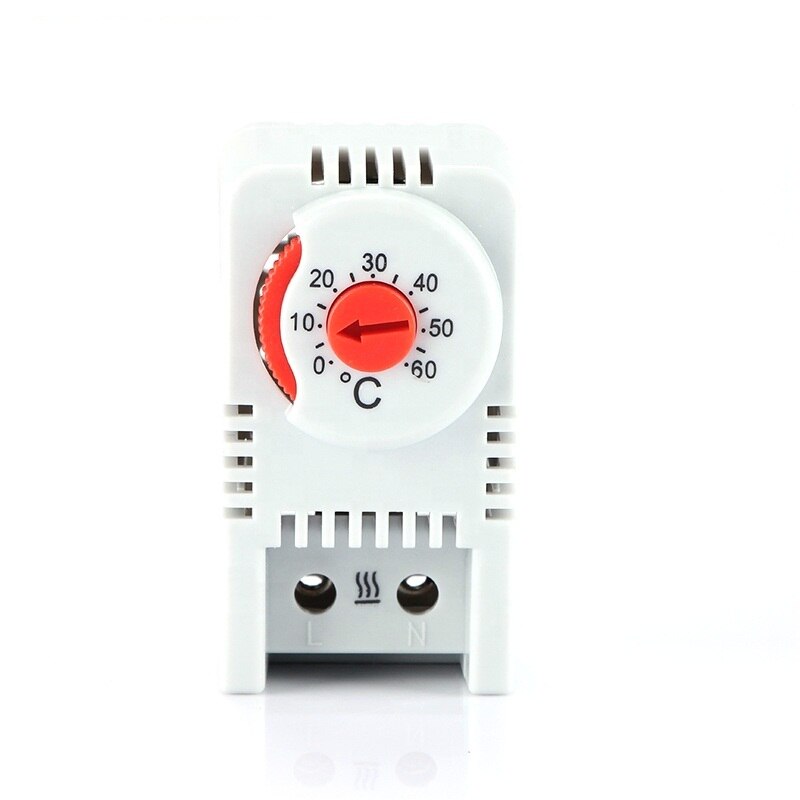

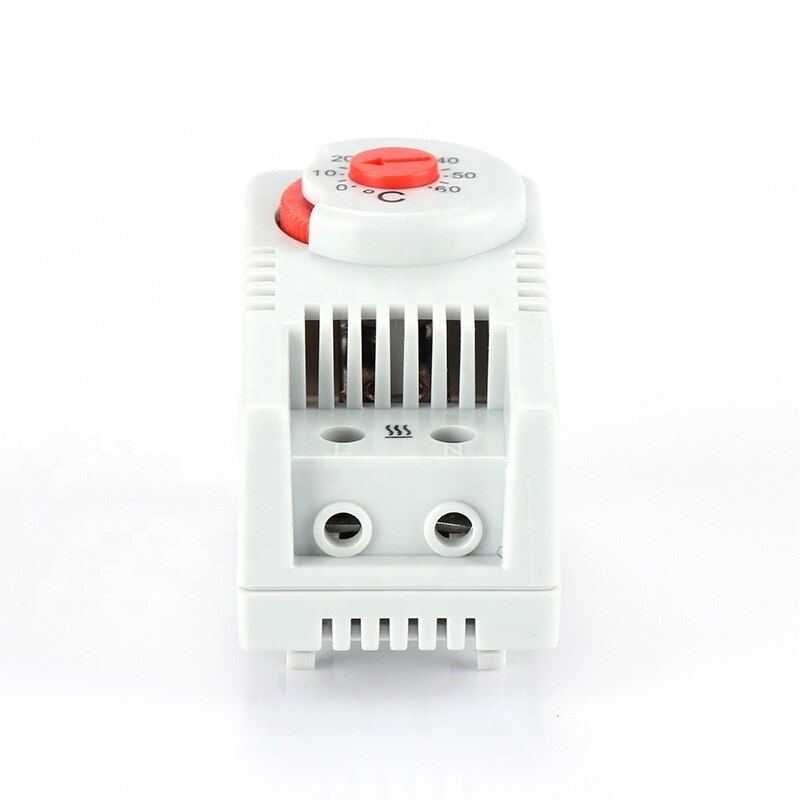

DOSSY Fan Heater Thermostat Normal Close

(0)No Reviews yet
  • SKU: DSTO01-H
  • Manufacturer:

Product Information

DOSSY DSTO01-H

Fan Heater Thermostat Normal Close

DSTO01-H (Normally Closed): When the temperature reaches the set value, open circuit.


Features:

  • Large setting range
  • Small size
  • Simple to mount
  • High switching performance

Specifications

Specifications DSTO01-H

ColorRed
Switch temperature difference 7K (± 4K tolerance)
Sensor element thermostatic bimetal
Contact type snap-action contact
Contact resistance <10mΩ ( Incidental connection line)
Service life > 100,000 cycles
Max. Switching capacity 250VAC, 10 (2) A
120VAC, 15 (2) A
30W DC at 24V to 72V DC
Connection 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Installation 35mm DIN Installation Guide
Dimensions 60x33x47mm
Weight 44g/pcs
Fitting postion Variable
Opearing/storage temperature -20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection IP IP20
