Primus Cable CN1-6786-Z5-100-Pack

  • SKU: CN1-6786-Z5-100-Pack
  • Manufacturer: Primus Cable
  • Data Sheet: Download
  • Availability: Direct Ship Item Usually ships same day direct from manufacturer Email me when this product is in stock!
US$‎30.00

Primus Cable CN1-6786-Z5

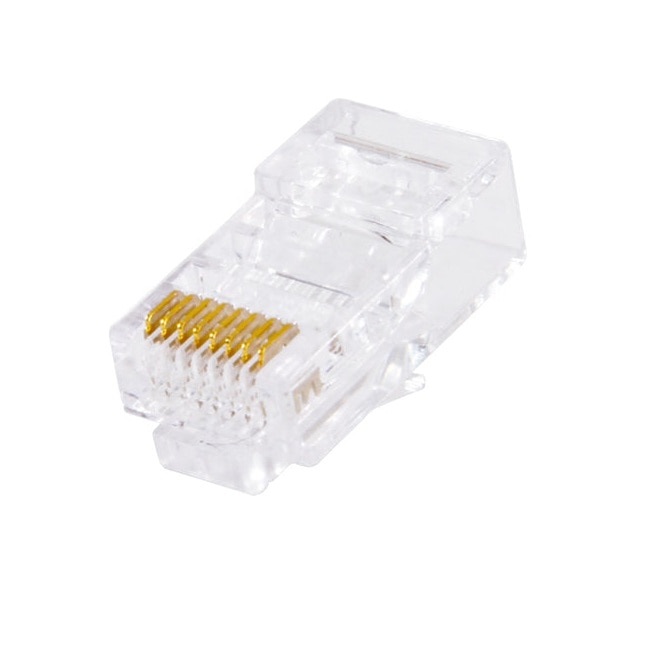

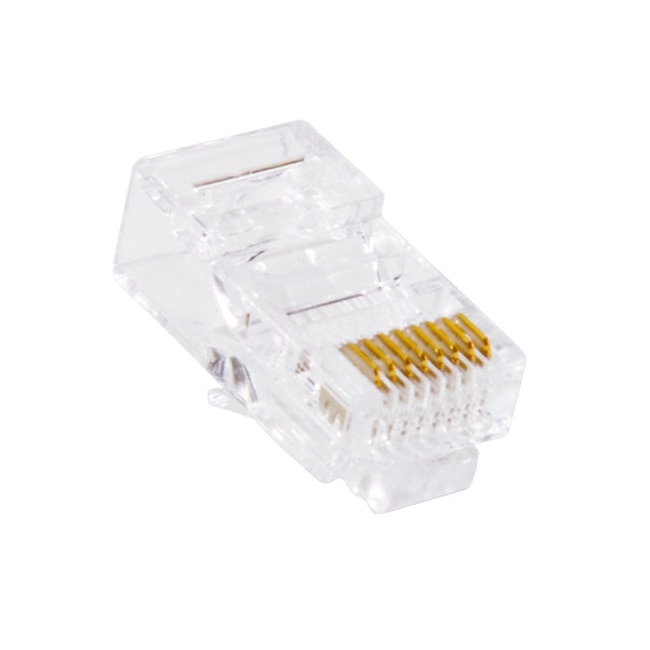

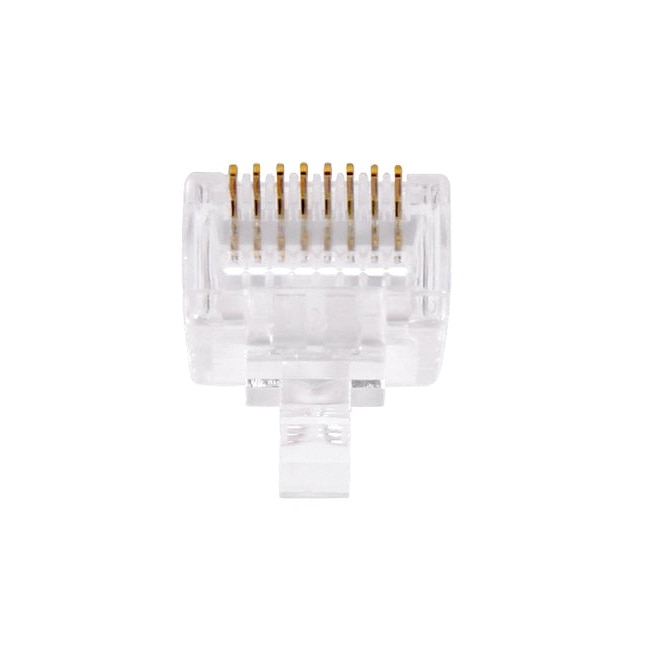

RJ45 CAT5E Connector, Straight Feed-Through, Fits insulation OD 0.93mm ~ 1.04mm & cable OD under 6.5mm, 100 PC

The CAT5e Easy Feed RJ45 Modular Plug is the must have connector for all datacom and telecom installers. This RJ45 Plug saves time and money with it's simple easy to use design. Installers can simply slide all of the conductors through the jack at once making it clear to verify proper wire alignment before termination. These connectors place the twisted wire pairs straight inline to one another and prevent staggering. Connectivity is vital when installing a network so be sure to get these quality plugs on all your CAT5e Cables.



Features:

  • For Round Solid or Stranded Cable
  • Compatible with 23 AWG ~ 26 AWG Cables (OD under 6.5mm)
  • 3 Prong Gold Plated Conductors
  • Wires inserted through front of connector
  • Strain Relief Bar Secures Connector Around Cable
  • Faster terminations with reduced scrap
  • Simple one piece design
  • UL rated
  • Operation Temperature: -20°C ~ +50°C

Specifications CN1-6786-Z5

Electrical
UL Applications250 Volts AC Max., at 2 AMPS
Dielectric With Standing Voltage1000 Volts AC
Insulation Resistance500 M Ω
TerminationResistance 20m Ω Max After Environmental Testing
Mechanical
Cable-To-Plug Tensile Strength20 Pound Min.
Durability1200 Mating Cycles
Operation Temperature Range-20°C~+50°C
Physical
HousingPolycarbonate, UL94V-0
ColorTransparent
Contact BladeCopper Alloy
ConductorStranded & Solid Wire, 23 - 26 AWG (Plug Can Be Used For Wire OD’s Of Under 6.5 mm)
Gold Plating50µ”c
