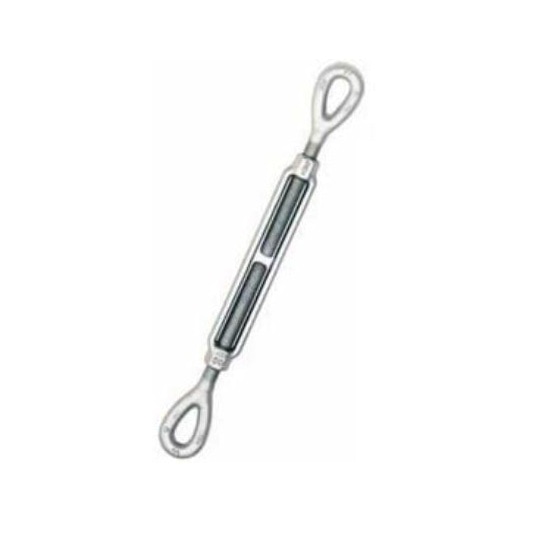

Elite Sales 1/4" x 4" Eye & Eye Turnbuckle; H.G.; D.F.; TO FED SPEC FFT-791B
- SKU: 2.55
- Manufacturer: Elite Sales
Product Information
Elite Sales HG14X4EE
1/4" x 4" Eye & Eye Turnbuckle; H.G.; D.F.; TO FED SPEC FFT-791B
Our Eye & Eye Turnbuckles are constructed of high quality hot galvanized, drop forged steel.
Specifications
Specifications HG14X4EE
| CAPACITY | LBS.500 |
| COLOR FINISH | Hot Dip Galvanized |
| BRAND | Elite Sales |
| CONSTRUCTION | Hot Galvanized Steel |

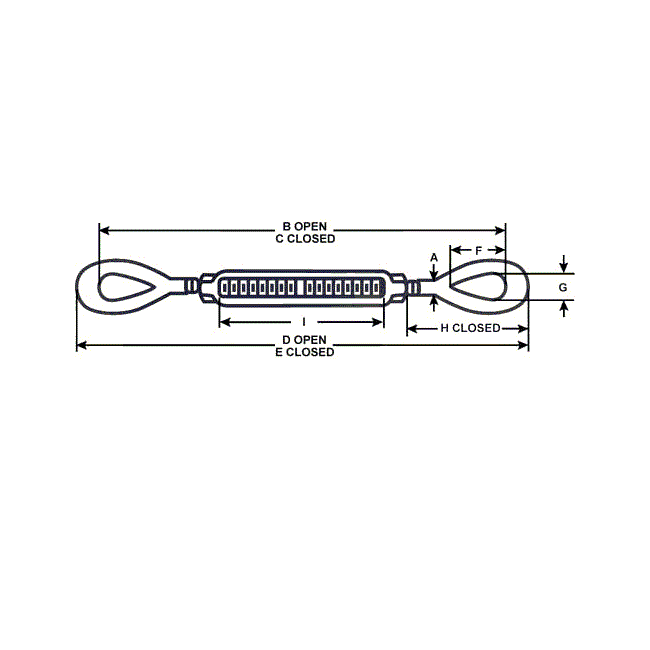

| DIMENSION A | 0.25" |
| DIMENSION B | 11.94" |
| DIMENSION C | 7.94" |
| DIMENSION D | 12.38" |
| DIMENSION E | 8.38" |
| DIMENSION F | 0.81" |
| DIMENSION G | 0.34" |
| INNER WIDTH | 0.81" |
| LIFTING HEIGHT TAKE UP | 4" |
| LIMITED WARRANTY | 30 Days for Material |
| MANUFACTURERS PART NUMBER | HG14X4EE |
| OVERALL LENGTH | 8.38" |
| STYLE | Eye & Eye Turnbuckle |
| THREAD SIZE | 1/4" |
| WEIGHT LBS. | 0.29 |
