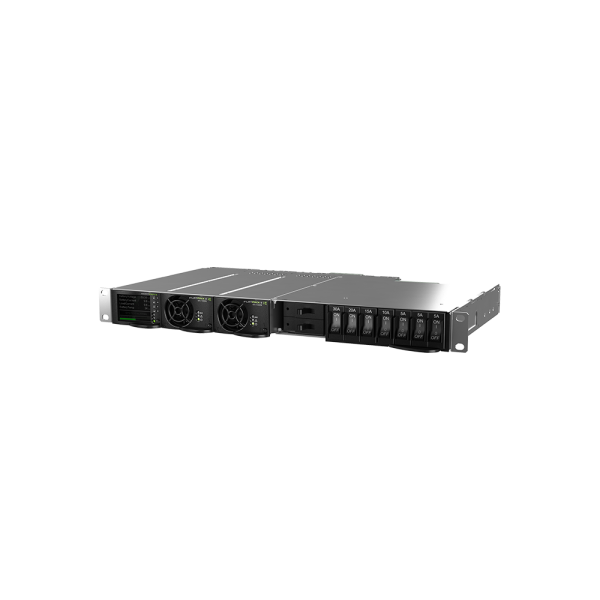

Eltek Flatpack S Power System Rear Wire 40Amp Max. LVBD
- SKU: CTOS0201.001
- Manufacturer: Eltek
- Data Sheet: Download
Product Information
Eltek CTOS0201.001
Eltek Flatpack S Power System Rear Wire 40Amp Max. LVBD
ELTEK's CTOS0201.001 Flatpack S Power System Rear Wire 40AMP MAX. LVBD 48V Negative Output Polarity 19in / 1RU / Flush or Mid Mount. Individual AC Inputs to System (LU AC Cord) 2 Re ctifier Positions, E/W 2X 1000W 48V Rectifiers (241122.105) Pulout Distribution Tray with 7QTY B Frame Distribution Load Circuit Breaker Positions Up to 30AMPS MAX (10AWG MAX) E/W 2X 20A, 3X 15A, 2X 5A Breakers 2 LVBD Installed 40AMP Battery Bullet. ELTEK's CTOS0201.001 Flatpack S Power System Rear Wire 40AMP MAX. LVBD 48V Negative Output Polarity 19in / 1RU / Flush or Mid Mount. Individual AC Inputs to System (LU AC Cord) 2 Re ctifier Positions, E/W 2X 1000W 48V Rectifiers (241122.105) Pulout Distribution Tray with 7QTY B Frame Distribution Load Circuit Breaker Positions Up to 30AMPS MAX (10AWG MAX) E/W 2X 20A, 3X 15A, 2X 5A Breakers 2 LVBD Installed 40AMP Battery Bullet Circuit Breaker Positions (6AWG MAX) E/W 2X 40A. Smartpack S Controller Included Temperature Sense 10 ft Cable Included.
Specifications
Specifications CTOS0201.001
| INPUT DATA | |
| Voltage | 100 - 250VAC |
| Mains Configuration | 230VAC, 1 phase or 2 x 1phase |
| Mains Connection | 2,5mm2 Terminal blocks, rear connection |
| Frequency | 45 to 66Hz |
| OUTPUT DATA | |
| Voltage | 48Vdc |
| Max. Current | 40A |
| LVBD | Default |
| Breaker (Plug-in type) maximum size | 2 x 40A1) |
| Connection (rear) | 16mm2 Terminal blocks |
| LOAD DISTRIBUTION | |
| Rear connections | N/A |
| Rear cabel entry, front access | 7 x 20A MCB 2) |
| Connections, screw terminals Optional LVLD | 7 x 30A MCB 2) 7 X 4mm2 on MCB 1 and 2 |
| Front connections | 4 x 30A MCB / 7 x 15A Fuse |
| Plug-able screw terminals | 4mm2 |
| CONTROL & MONITORING | |
| Smartpack S | 6x Input/Output and Ethernet, See Smartpack S datasheet |
| MECHANICAL DATA | |
| Dimensions (W/H/D) | 19"/1U/262mm Recommended minimum cabinet depth, 300 mm |
| Weight Dimensions | 12 lbs W-19” / H-3” / D-11” |
